I need help with this Molex nanofit category, I need the 2,3,4 and 5 pin right angle, 105313-1102, 105313-1103, 105313-1104, 105313-1105, ‘Dim B’ coloumn. Are there files for those parts that I can find? If not how can I make them?
While it is possible to make parts for these, it isn’t easy and not very practical (mostly because there are an infinite number of connectors.) Assuming you want to make a pc board (which is the only practical reason for making a new part for a connector) the job looks to be able to be done by the generic header like this:

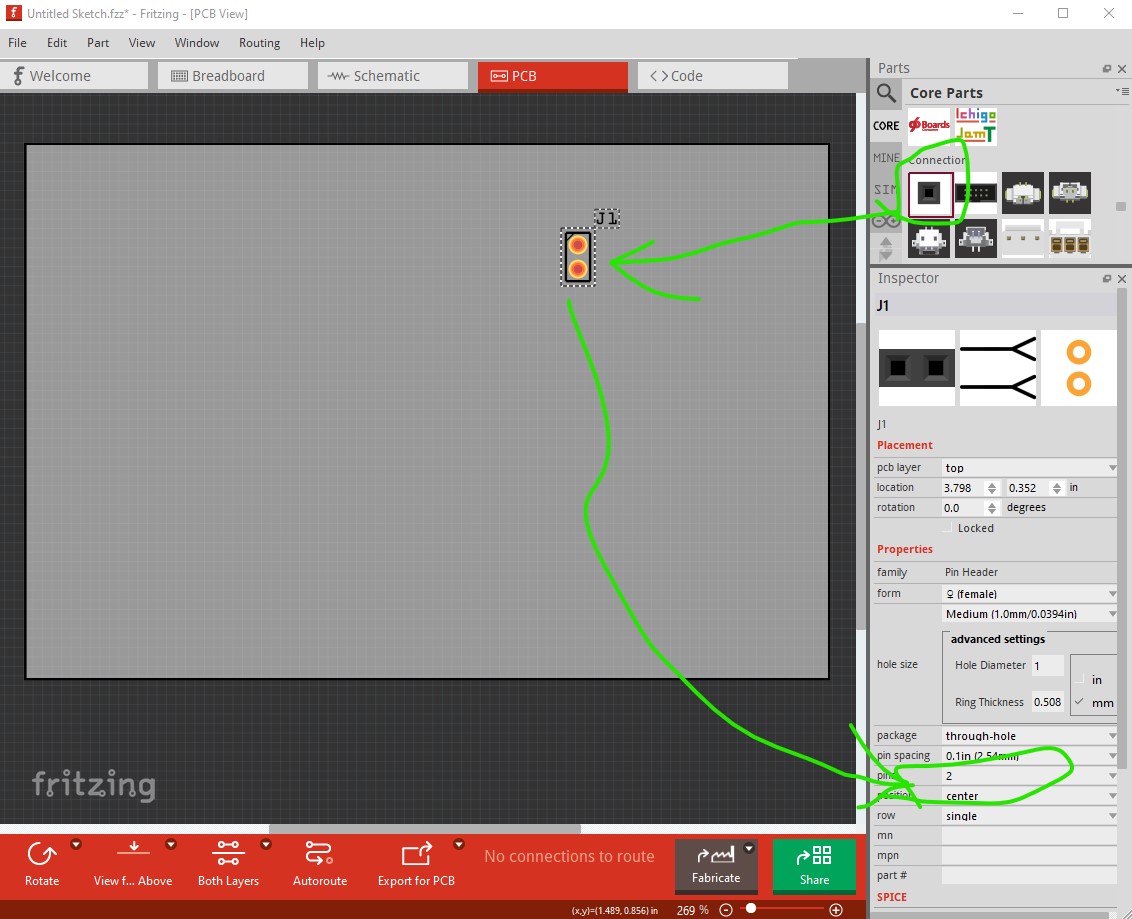

first drag a generic header from core parts in to the sketch
then set the number of pins

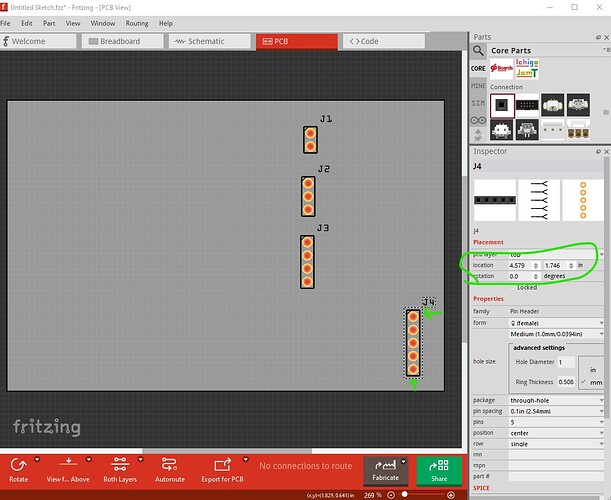

and use the x y coords in Inspector to set how close the pads are to the edge of the board. Note this isn’t a right angle connector so it won’t appear as such in breadboard view, but it will with minimal effort do what I expect you want. If it doesn’t these two tutorials on parts making may help (although as noted successfully making parts is difficult!)
I lately learned there aren’t links to the videos in Old_Grey’s tutorial so you need to do a google search for the title and then they come up on YouTube.
Peter
Thank you for the answer and tutorials!
If I use the generic header, how can I place holes in the right places for the board guides?
Drag a “hole” part onto the PCB view, then set the desired size for it in inspector.
