Help With Part ESP32 S3 DEV KIT N8R8

[MDBstudent]

Name of the part
ESP32-S3-DEV-KIT-N8R8

Previous work, similar parts
In case there are similar Fritzing parts, or you already started work, please link it here.

Top view

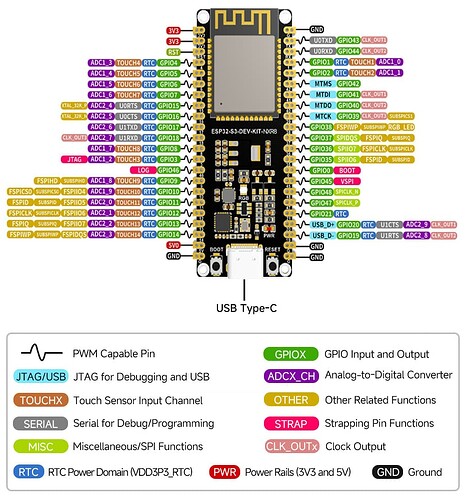

This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have.

Foto or vector graphic, no links here please.

Sorry, but i’m a new User and can’t include more then one embedded pictures in a Topic. So the
Picture with the sizes i’cant Upload. In the link down you will find these picture.

Datasheet
The official documentation of the part manufacture is linked here:

ESP32-S3-DEV-KIT-N8R8 - Waveshare Wiki

Please add a link to PDF of the manufacturers datasheet:

Esp32-s3_datasheet_en.pdf

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

Hi, there can anybody create this part for me please?

[vanepp]

A google search of the form “fritzing part ESP32-S3-DEV-KIT-N8R8” turns up this post which may do you.

ESP32-S3-DevKitC-1 N8R8

Name of the part ESP32-S3-DevKitC-1 N8R8 Previous work, similar parts In case there are similar Fritzing parts, or you already started work, please link it here. Top view This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have. [image] Foto or vector graphic, no links here please. Datasheet The official documentation of the part manufacture is linked here: Please add a link to PDF of the manufacturers datasheet https://do…

Peter

[MDBstudent]

Thank you very much for this surprisingly quick answer, this is not exactly the same ESP32, e.g. mine only has a USB C port, but it is compatible with mine. The rest I think I should be able to do with the part editor and Inkscape.

I will post the part here when it is finished for others who are looking for exactly this ESP32.

Another question: Is there a library with single svg files of parts which are needed to assemble a new part. For example only the USB C connector, an IC or even a single pin.

Many thanks in advance for any answers. Please also write to me if I should open a new topic for this new question.

*** Translated with DeepL Translate: The world's most accurate translator (free version) ***

[vanepp]

@MDBstudent

Thank you very much for this surprisingly quick answer, this is not exactly the same ESP32, e.g. mine only has a USB C port, but it is compatible with mine.

If you are looking for the 2 USB C version there is one here (found with the same google search.) There are a bunch of ESP parts floating around (mostly in the forum but not all of them) so you need to search using google to make sure you are not reinventing the wheel before making parts.

ESP32-S3 Devkit with USB C

Is this the part you are looking for? it matches the image you supplied and has the necessary information to make a part, assuming it is the board you want. A web site like this is what is required when requesting parts. Peter

@MDBstudent

Another question: Is there a library with single svg files of parts which are needed to assemble a new part. For example only the USB C connector, an IC or even a single pin.

Asking here is fine. The answer is more difficult. I have a library of breadboard only parts (without connectors) to add to breadboard svgs @RAPTOR7762 has posted it on github somewhere I think and collections of various parts that I use when I need ones with the appropriate connectors (which haven’t been posted so far) but there isn’t a public repository I don’t think. If you want to start making parts these two tutorials (which apply to current Fritzing versions) should help. You may have already seen them, they get posted here a lot.

Fritzing PART CREATION Video Tutorial Series

NEW FASTER PART MAKING VIDEOS AT THE BOTTOM-Fritzing Parts Fast ADVANCED FRITZING USER TIPS & TRICKS VIDEOS AT THE BOTTOM-Fritzing Adv Tips & Tricks A series of part creation videos - I’m not an expert, but there was nothing else around at the time. Use 1080p HD fullscreen to see details clearly - use gear symbol bottom right -. Recorded slowly for older people, so select a higher speed if it’s too slow. P.S. - Sorry about the voice/sound Fritzing Part Creation - Chapter1 - New Part …

Part creation howto part 1 breadboard and pcb

Someone in this forum post requested help to fix up a part. So while doing that I decided to record what I needed to do in order to fix the part to provide a tutorial to create new / fix broken parts. If you start from the Tarjeta S4A EDU.fzpz file posted in the above thread, you should be able to recreate my improved part posted in the same thread. I started by loading the original part in to Fritzing, that indicates breadboard is (at first look anyway) pretty good, but schematic and pcb are…

I lately learned there aren’t links to the videos in Old_Grey’s tutorial so you need to do a google search for the title and then they come up on YouTube.

Peter
