FZPZ for Jetson Nano?

[Indigo3]

I’m getting into the nitty gritty of my first project and decided it’s time to use Fritzing. Does anyone have a Jetson Nano FZPZ…any help would be greatly appreciated

[Danebae]

You can open this project and take the part from it:
https://fritzing.org/projects/jetson-finder

Part has some errors.

[Ing_Adrian]

Jetson Nano.fzpz (547.8 KB)

[vanepp]

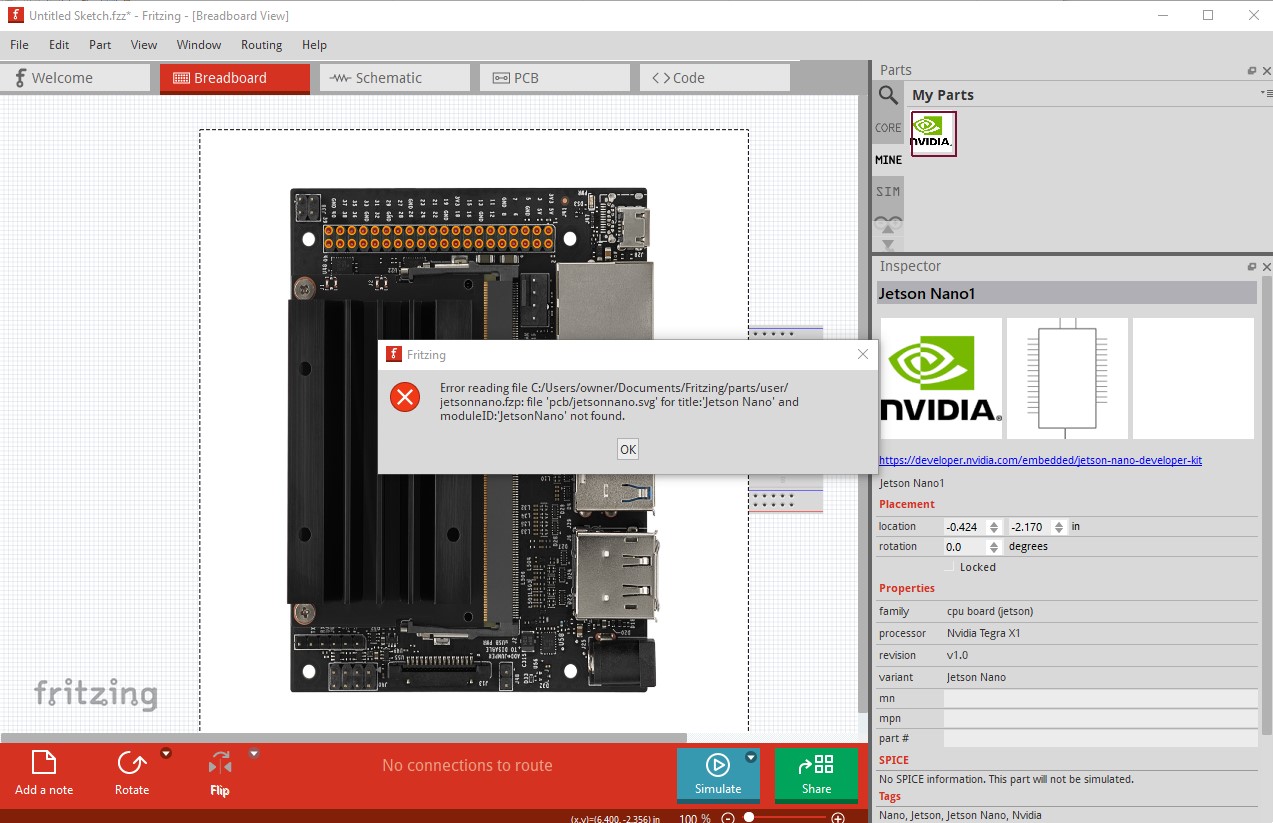

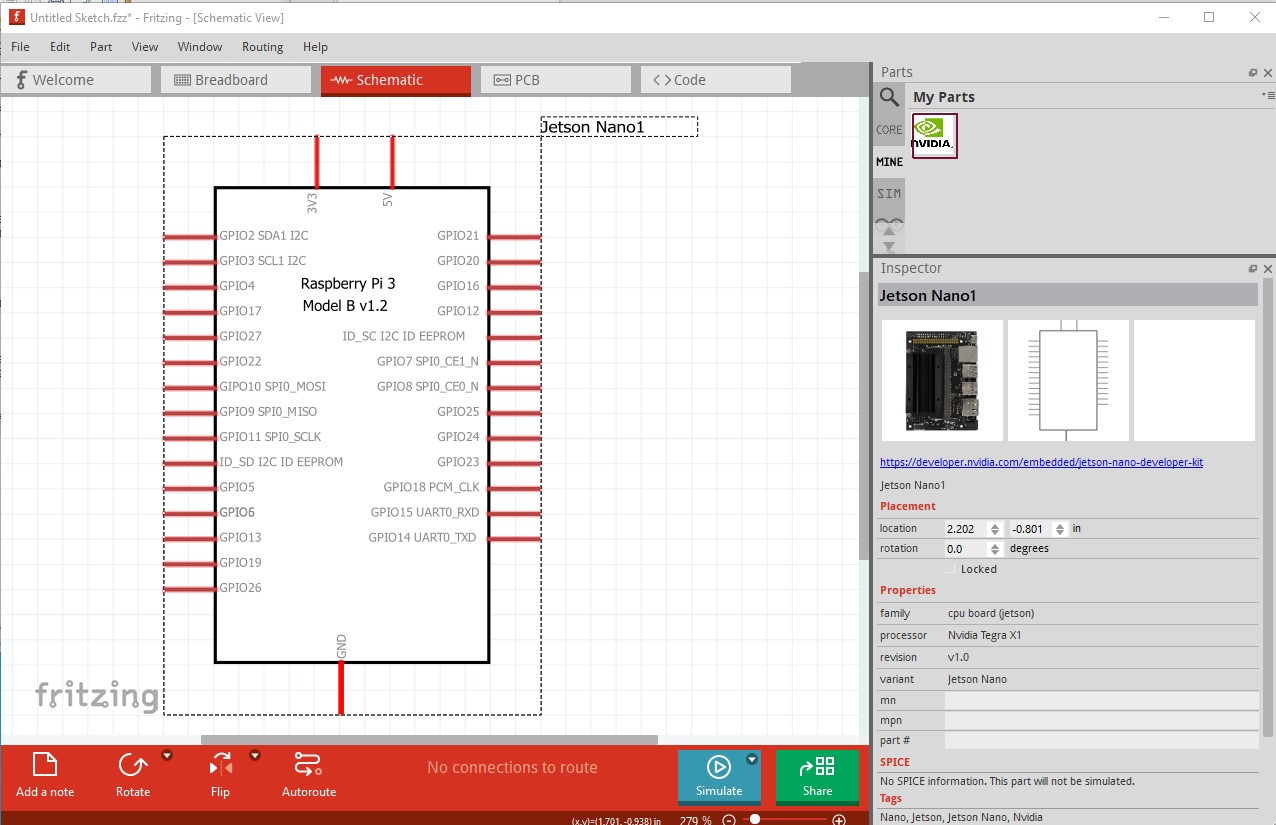

Unfortunately your part doesn’t work.

This part making tutorial may help you correct the part

Part creation howto part 1 breadboard and pcb

Someone in this forum post requested help to fix up a part. So while doing that I decided to record what I needed to do in order to fix the part to provide a tutorial to create new / fix broken parts. If you start from the Tarjeta S4A EDU.fzpz file posted in the above thread, you should be able to recreate my improved part posted in the same thread. I started by loading the original part in to Fritzing, that indicates breadboard is (at first look anyway) pretty good, but schematic and pcb are…

and has a pointer to where FritzingCheckPart.py can be found. Pcb view is normally suppressed (assuming that you wanted too suppress it!) by coping the breadboard definition in the fzp file to the pcb definition as there needs to be a renderable svg for pcb (but it won’t render a properly formatted breadboard svg in pcb.,) That too is covered in one of the tutorial sections.

FritzingCheckPart.py reports the followining errors

$ FritzingCheckPartw.py part.jetsonnano.fzp

**** Starting to process file Startup, no file yet

**** Starting to process file part.jetsonnano.fzp

**** Starting to process file svg.breadboard.jetsonnano.svg.bak

**** Starting to process file svg.schematic.jetsonnano.svg.bak

File
‘part.jetsonnano.fzp.bak’

This is a through hole part as both copper0 and copper1 views are present.
If you wanted a smd part remove the copper0 definition from line 45

Warning 3: File
‘part.jetsonnano.fzp.bak’
At line 2

ModuleId ‘JetsonNano’

Doesn’t match filename

‘jetsonnano’

Warning 32: File
‘svg.breadboard.jetsonnano.svg.bak’
At line 22

Scale is not the desirable 1/1000 ratio from width/height to
viewBox width/height.

Warning 32: File
‘svg.schematic.jetsonnano.svg.bak’
At line 13

Scale is not the desirable 1/1000 ratio from width/height to
viewBox width/height.

Error 69: File
‘svg.breadboard.jetsonnano.svg.bak’
At line 96

Found a drawing element before a layerId (or no layerId)

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector0terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector0pin is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector1terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector2terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector3terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector4terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector5terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector6terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector7terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector8terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector9terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector10terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector11terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector12terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector13terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector14terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector15terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector16terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector17terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector18terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector19terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector20terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector21terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector22terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector23terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector24terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector25terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector26terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector27terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector28terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector29terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector30terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector31terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector32terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector33terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector34terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector35terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector36terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector37terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector38terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 18: File
‘part.jetsonnano.fzp.bak’

Connector connector39terminal is in the fzp file but not the svg file. (typo?)

svg svg.breadboard.jetsonnano.svg.bak

Error 77: File
‘svg.schematic.jetsonnano.svg.bak’
At line 311

terminalId connector87terminal— can’t be a g as it won’t work.

Error 15: Can not rename

‘svg.pcb.jetsonnano.svg’

to

‘svg.pcb.jetsonnano.svg.bak’

‘svg.pcb.jetsonnano.svg’

No such file or directory (2)

Error 20: File
‘svg.pcb.jetsonnano.svg’

During processing svgs from fzp, svg file doesn’t exist

Peter

[RAPTOR7762]

Ok, I’ve created the file from scratch

Jetson Nano-fixed.fzpz (48.4 KB)

If you have downloaded the original part, please delete it and load this new one to prevent confusion

@Ing_Adrian This would be the first and the last time I say this

Do not design graphics with pictures.
