TLP241A Part Creation Help

[Pitchot9]

Hi Friends,

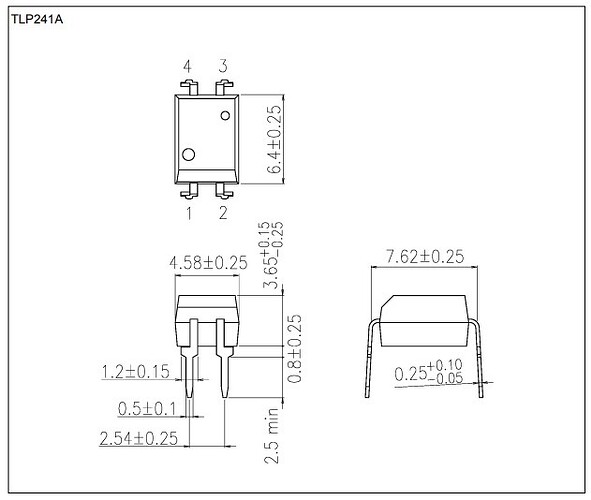

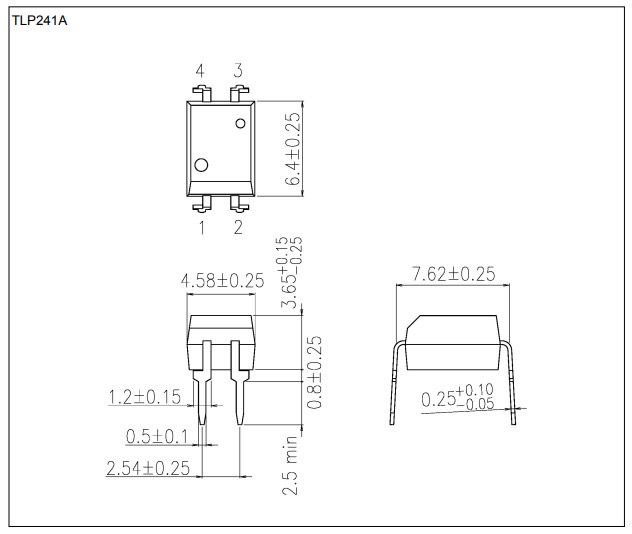

May need help for create part for TLP214A. You can refer to image below as the part dimension. I also attached the full datasheet link below.

TLP241A PDF

Thanks.

[vanepp]

No need of a new part. You can use the generic IC to make yourself a part. There is a tutorial on how to do so in the forum somewhere a search for generic IC in the forum search bar should find it.

Peter

[RAPTOR7762]

@Pitchot9 Yes indeed

Part creation howto part13-ICs

This is a continuation of As I lately decided to merge this tutorial with Peter’s part creation series, I left the links behind. Never mind, I’ll just leave them there as a reminder. In this tutorial, you are going to learn how to make Fritzing Parts. You need these apps ready: 1. Fritzing (of course) Download Fritzing here: https://fritzing.org/download/ Alternative payment method (without using PayPal): https://fritzing.org/download?payment_method=alt 2. Inkscape Download Inkscape h…

If you need help, just ask either @RAPTOR7762 or @vanepp

[Pitchot9]

Hi @vanepp @RAPTOR7762

Thank you for the information. Really appreciate it.

I already made one and here I attached.

TLP241A.fzpz (5.3 KB)
