Hi. I’m looking for a Fritzing model of this relay module.
It has 3 connection points via the screw terminals on each side, a total of 6 connection points excluding the isolation jumpers above and below the optocoupler.
It is 70 x 17 mm - I measured it with a ruler. One site say it is only 70 x 16 mm.
There may be versions with 5V and 12V relays too, so by leaving out the voltage text on the relay you can cover them all I guess.
Hai. Saya sedang mencari model Fritzing untuk modul relai ini.
Module parameters:

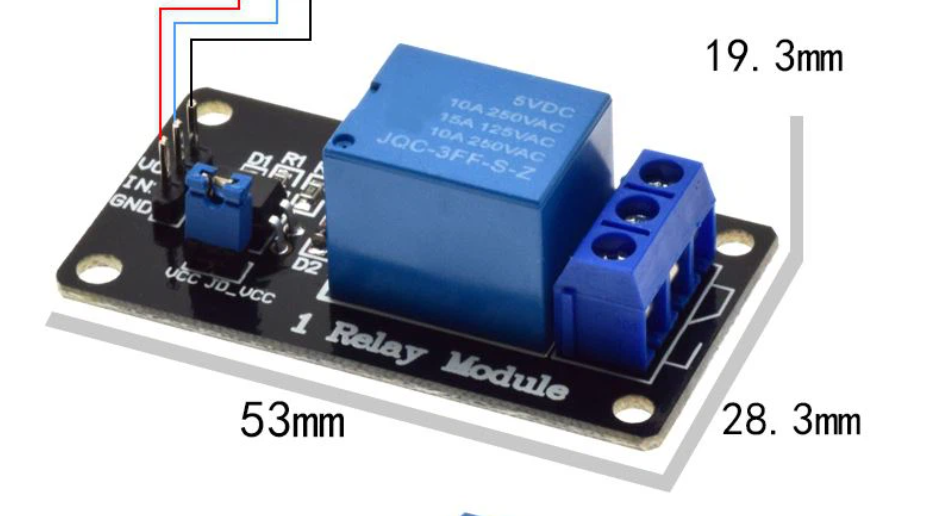

1.Size: 53mm (length) * 28.3mm (width) * 19.3mm (height)
2. Weight: 18g.
3. PCB color: black
4. There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing
5. The relay uses high-quality Songle relay, single-pole double throw. - Common terminal, - Normally open terminal, - Normally closed terminal
6. Optocoupler isolation, good anti-interference
7. Low-level pull-in and high-level release. The status indicator D1 is on when activated, and off when released.
8. VCC is the system power supply, and JD_ _VCC is the relay power supply. The default is to send 5V relay, just install the jumper cap.
9. Maximum relay output: DC 30V / 10A, AC 250V / 10A
There is but it isn’t the same as this one (screw terminals instead of header, different pin order and no jumper although I am unclear what the jumper does exactly. I am making a part.
This part should do what you want. Note pcb view has no connections as the pins won’t connect to the pcb just the board outline and where the mounting holes are (they are not drilled by default though.) If you want the mounting holes drilled you need to drag the hole part in from core parts->pcb->hole, place it over the hole in silkscreen and set the size appropriately.
Bagian ini akan melakukan apa yang Anda inginkan. Perhatikan tampilan pcb tidak memiliki koneksi karena pin tidak akan terhubung ke pcb, hanya garis luar papan dan tempat lubang pemasangan berada (meskipun lubang tersebut tidak dibor secara default). Jika Anda ingin lubang pemasangan dibor, Anda perlu menyeret bagian lubang dari bagian inti->pcb->lubang, letakkan di atas lubang dengan sablon sutra dan atur ukurannya dengan tepat.
