Your part has a number of problems. FritzingCheckPart.py has this to say about it:

$ FritzingCheckPartw.py ‘part.SC03-C2H5OH - Electrochemical Ethanol Module_e4edef09d1bbeff43f4b735d8d983617_1.fzp’

**** Starting to process file Startup, no file yet

**** Starting to process file part.SC03-C2H5OH - Electrochemical Ethanol Module_e4edef09d1bbeff43f4b735d8d983617_1.fzp

**** Starting to process file svg.breadboard.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_breadboard.svg.bak

**** Starting to process file svg.schematic.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_schematic.svg.bak

**** Starting to process file svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak

File
‘part.SC03-C2H5OH - Electrochemical Ethanol Module_e4edef09d1bbeff43f4b735d8d983617_1.fzp.bak’

This is a through hole part as both copper0 and copper1 views are present.
If you wanted a smd part remove the copper0 definition from line 51

Modified 4: File
‘svg.breadboard.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_breadboard.svg.bak’
At line 5

ReferenceFile

‘ESP32-S3-LCD-Driver-Board_NEW_UPDATED_LAST1_9b35048fd29b2444e1aa64618f980634_2_breadboard.svg’

doesn’t match input file

‘SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_breadboard.svg’

Corrected

Modified 4: File
‘svg.schematic.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_schematic.svg.bak’
At line 5

ReferenceFile

‘ESP32-S3-LCD-Driver-Board_NEW_UPDATED_LAST1_9b35048fd29b2444e1aa64618f980634_2_schematic.svg’

doesn’t match input file

‘SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_schematic.svg’

Corrected

Modified 4: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 6

ReferenceFile

'ESP32-S3-LCD-Driver-Board_NEW_UPDATED_LAST1_9b35048fd29b2444e1aa64618f980634_2_pcb.svg
’

doesn’t match input file

‘SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg’

Corrected

Warning 6: File
‘part.SC03-C2H5OH - Electrochemical Ethanol Module_e4edef09d1bbeff43f4b735d8d983617_1.fzp.bak’
At line 2

ReferenceFile name

‘ESP32-S3-WROOM-1-N16R8-dev-board_1.fzp’

Doesn’t match fzp filename

‘SC03-C2H5OH - Electrochemical Ethanol Module_e4edef09d1bbeff43f4b735d8d983617_1.fzp’

Warning 32: File
‘svg.breadboard.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_breadboard.svg.bak’
At line 3

Scale is not the desirable 1/1000 ratio from width/height to
viewBox width/height.

Warning 32: File
‘svg.schematic.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_schematic.svg.bak’
At line 3

Scale is not the desirable 1/1000 ratio from width/height to
viewBox width/height.

Warning 24: File
‘svg.schematic.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_schematic.svg.bak’
At line 8

Font family ‘DINNextSlabPro-Regular’ is not Droid Sans or OCRA
This won’t render in Fritzing

Warning 32: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 3

Scale is not the desirable 1/1000 ratio from width/height to
viewBox width/height.

Error 53: File
‘part.SC03-C2H5OH - Electrochemical Ethanol Module_e4edef09d1bbeff43f4b735d8d983617_1.fzp.bak’
At line 286

Bus nodeMember connector18 does’t exist

Error 53: File
‘part.SC03-C2H5OH - Electrochemical Ethanol Module_e4edef09d1bbeff43f4b735d8d983617_1.fzp.bak’
At line 290

Bus nodeMember connector17 does’t exist

Error 69: File
‘svg.schematic.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_schematic.svg.bak’
At line 8

Found a drawing element before a layerId (or no layerId)

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 443

Connector connector14pin has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 444

Connector connector14terminal has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 445

Connector connector13pin has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 446

Connector connector13terminal has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 447

Connector connector12pin has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 448

Connector connector12terminal has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 449

Connector connector11pin has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 450

Connector connector11terminal has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 451

Connector connector10pin has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 452

Connector connector9pin has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 453

Connector connector9terminal has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 454

Connector connector8pin has no radius no hole will be generated

Error 74: File
‘svg.pcb.SC03-C2H5OH - Electrochemical Ethanol Module_3d6c130f5103ed2c88216d388420ac06_1_pcb.svg.bak’
At line 455

Connector connector8terminal has no radius no hole will be generated

$

There are likely a number of other problems as well.

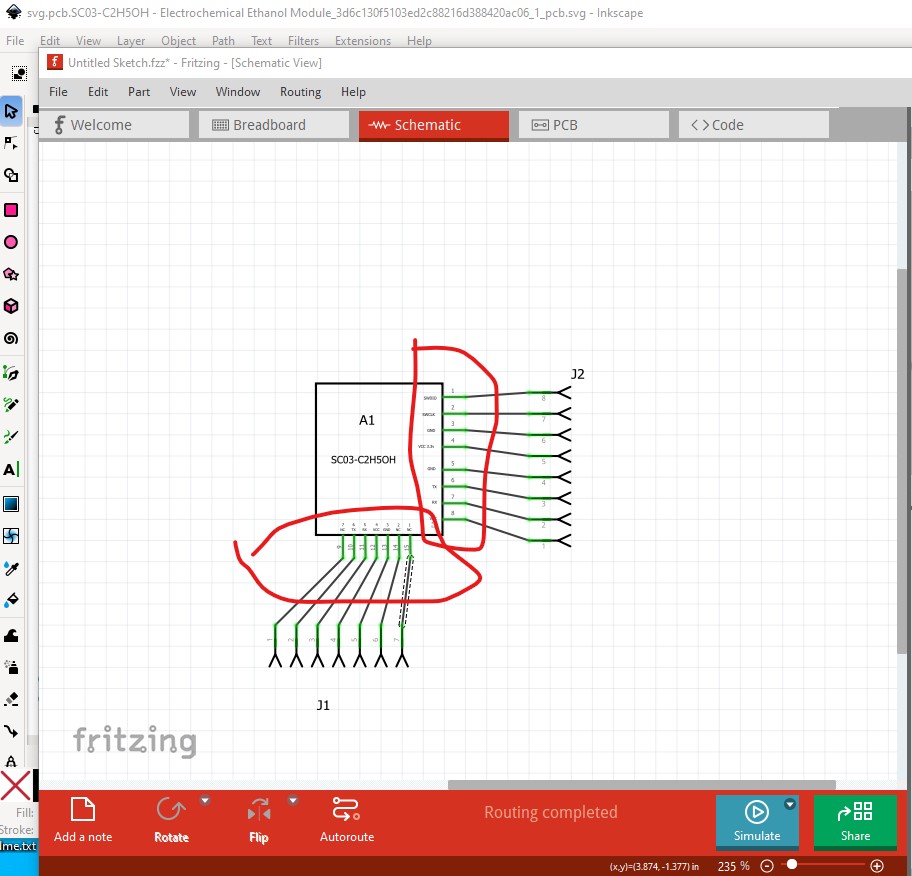

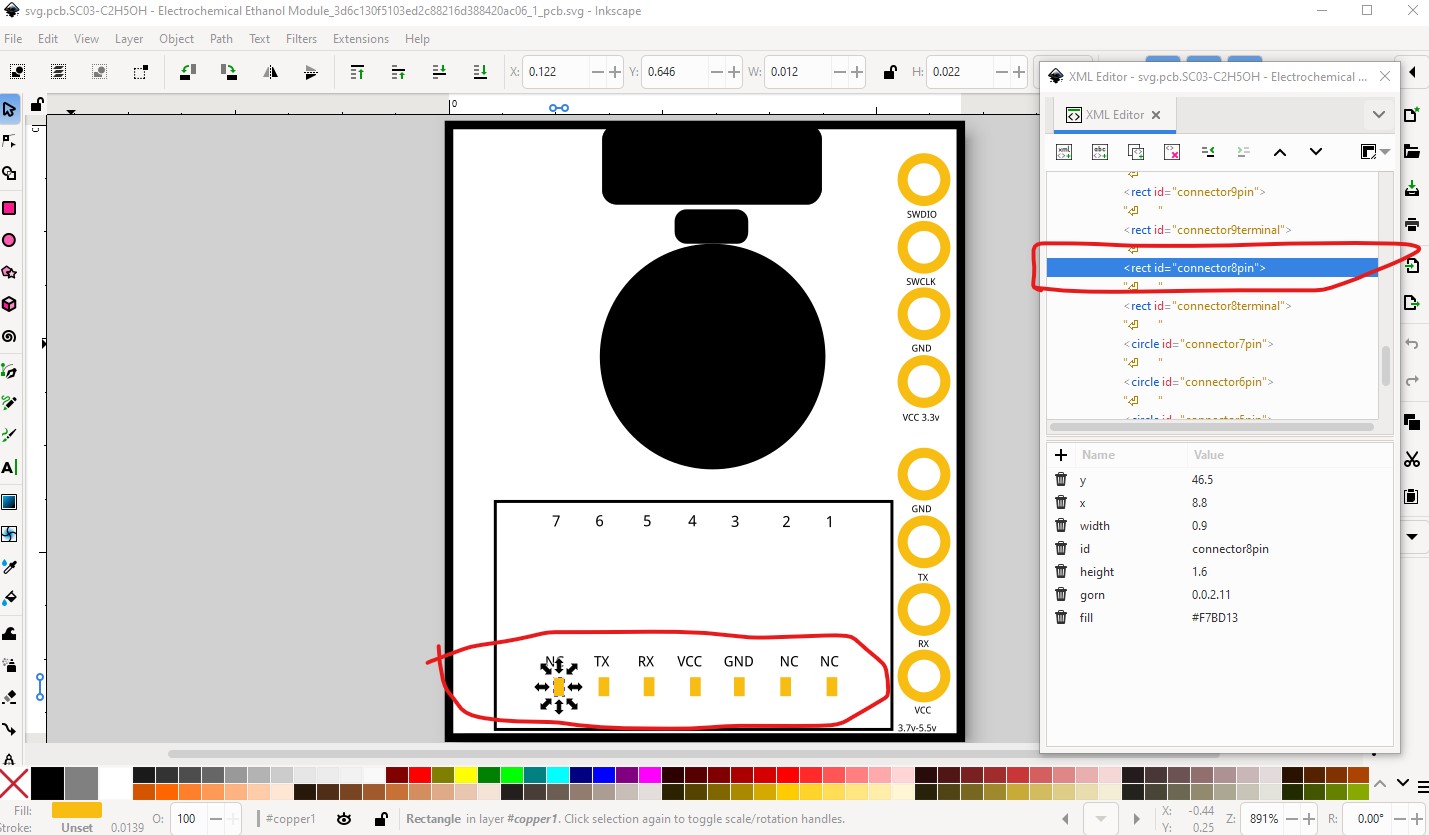

The connector which appears to be SMD should be suppressed in pcb as it isn’t through hole as the pads are and thus won’t work there. Schematic is not aligned to the 0.1in grid which it should be (the easy way to do that is to use Randy’s Inkscape schematic extension.)

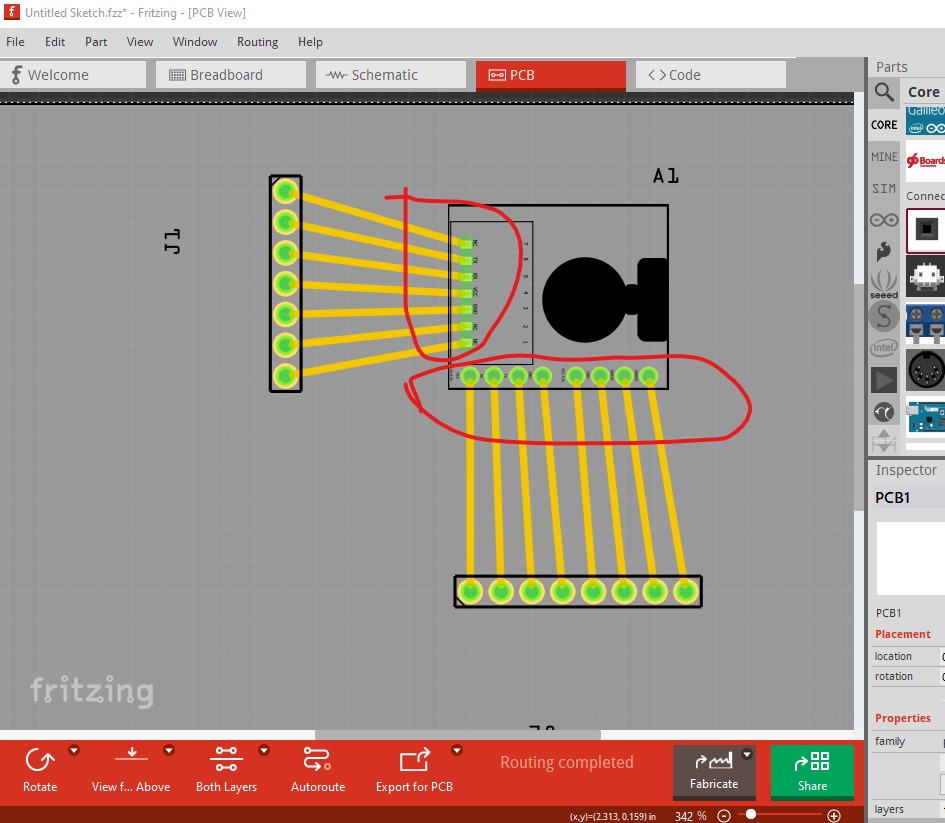

Pcb looks to be lacking a copper0 layer as the traces for the through hole connectors won’t move to the bottom layer.

It is likely the through hole connectors should be on 0.1in centers like the header connected to them and as noted the SMD connector shouldn’t appear in pcb.

If you wish to fix this up for yourself this tutorial will likely give you the necessary information (as well as were to get a copy of FritzingCheckPart.py and Randy’ Inkscape extension):

Part creation howto part 1 breadboard and pcb

Someone in this forum post requested help to fix up a part. So while doing that I decided to record what I needed to do in order to fix the part to provide a tutorial to create new / fix broken parts. If you start from the Tarjeta S4A EDU.fzpz file posted in the above thread, you should be able to recreate my improved part posted in the same thread. I started by loading the original part in to Fritzing, that indicates breadboard is (at first look anyway) pretty good, but schematic and pcb are…

Or I can fix up the part for you if you wish.

Peter
