Looking for Tr-Htse Soil Vwc Sensor Temperature

parts help
1

Hi everyone,

I’m looking for this

Soil Moisture Sensor

Tr-Htse Soil Vwc Sensor Temperature Measuring Instrument Conductivity Sensor 4-20mA Feildsout Multi-Depth Soil Moisture Sensor

Previous work, similar parts
In case there are similar Fritzing parts, or you already started work, please link it here. N/A

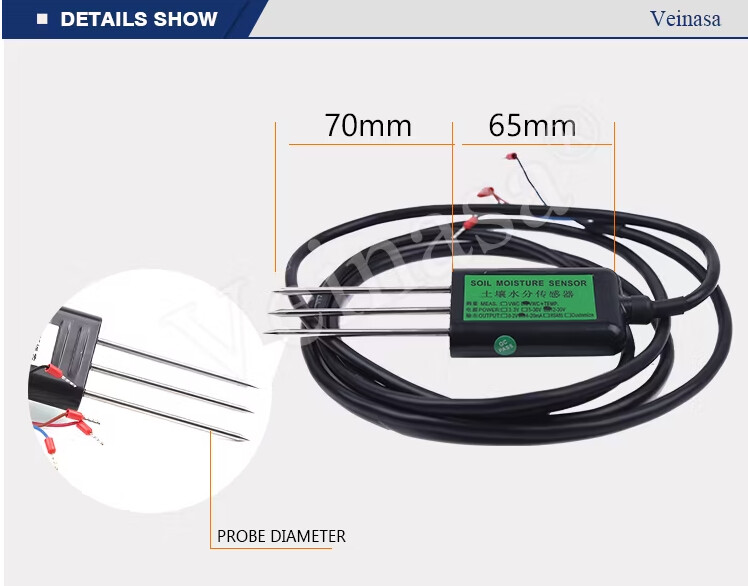

Top view
This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have.

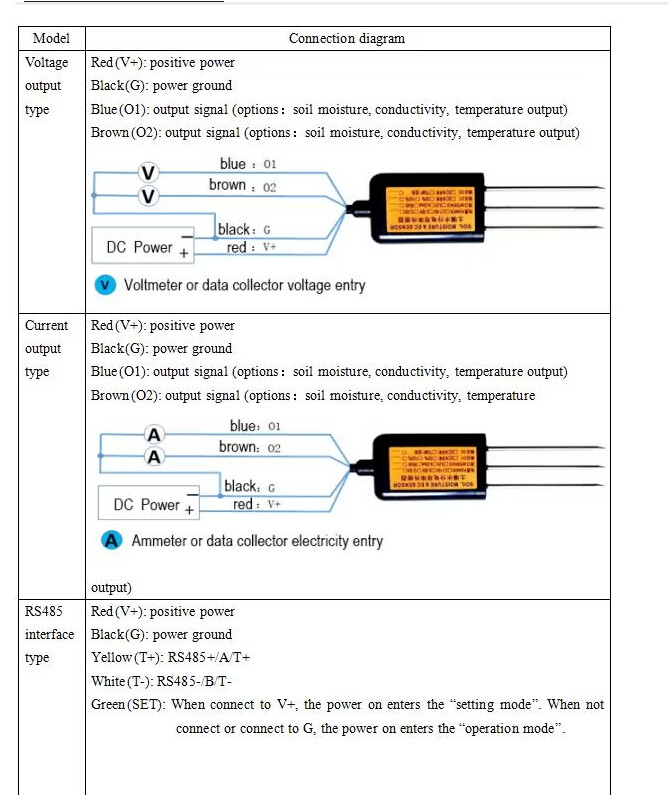

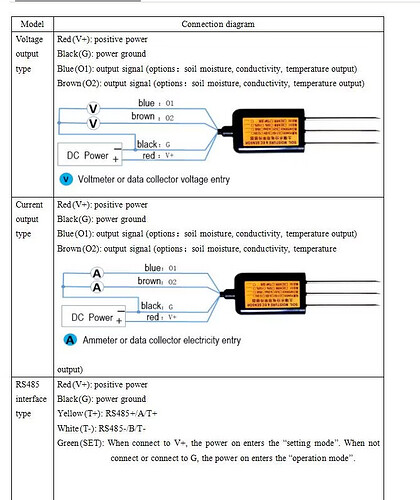

Connection diagram

Datasheet
The official documentation of the part manufacture is linked here: Tr-Htse Soil Vwc Sensor Temperature Measuring Instrument Conductivity Sensor 4-20mA Feildsout Multi-Depth Soil Moisture Sensor - Multi-Depth Soil Moisture Sensor and Conductivity Sensor 4-20mA

Type
I’m looking for the sketch of this sensor.
It has four wires
Red (V+): Power
Black (G): Ground
Blue (O1): Output Signal
Brown (O2): Output signal

2

This part should be close enough. Your output isn’t RS485 but rather voltage but the pins are there.

Peter

3

Hi Peter,

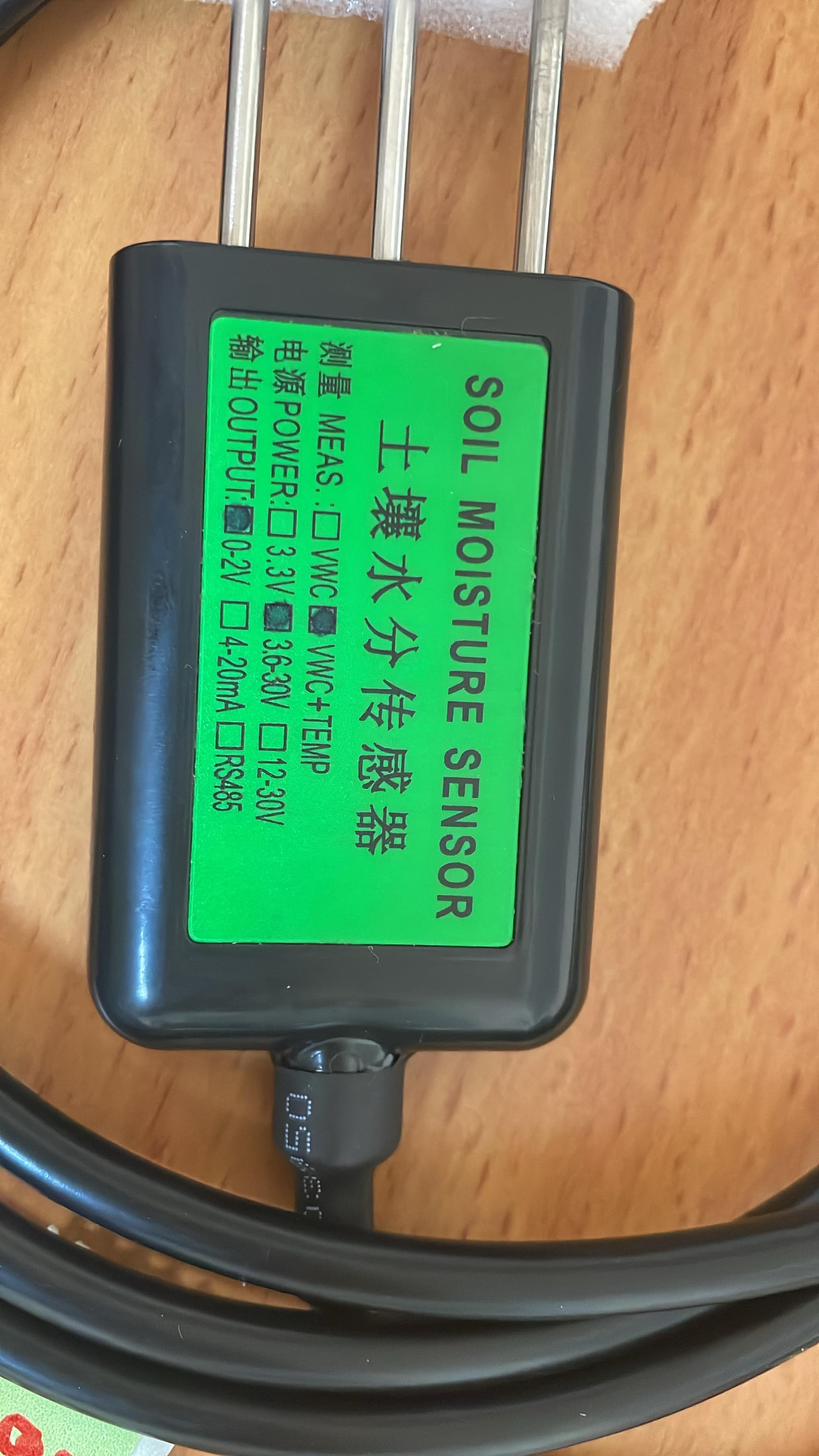

I agree its close. but you know the words written on the JXBS-3001-NPK-RS will bias the reviewer. The actual sensor looks like this

image748×586 64.2 KB

4

Not a clear enough picture to do anything with and no data sheet that I can find on the referenced part. Without more information you appear to be out of luck.

Peter

5

Oh dear, the manufacturers just provided a webpage.

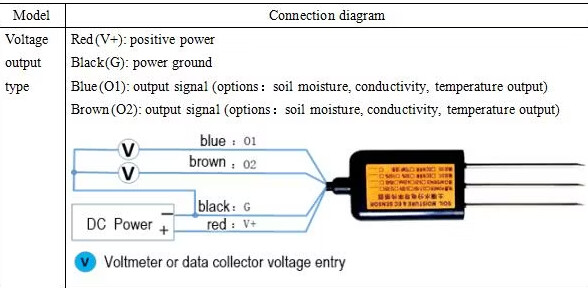

This is all I can see and find

image668×795 115 KB

6

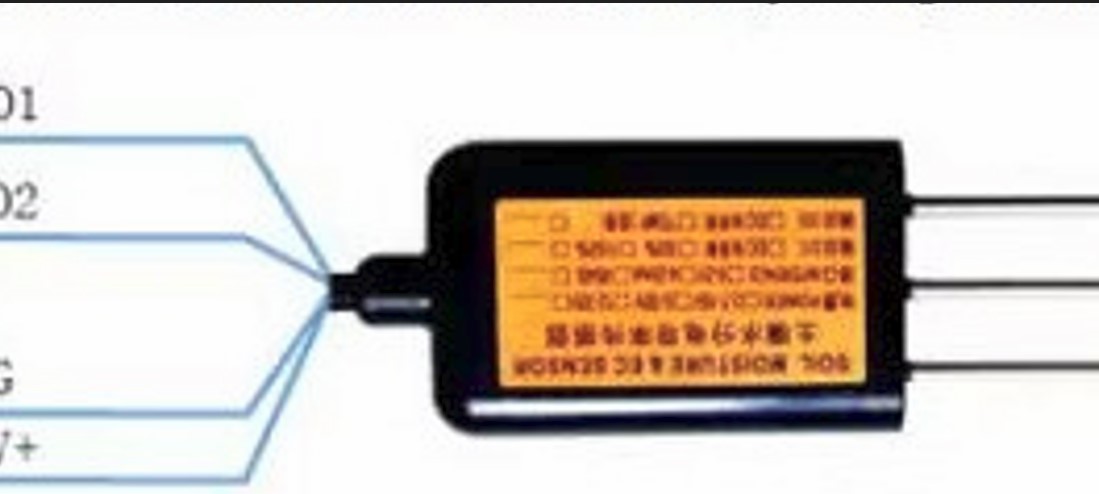

Even blown up this is unreadable and I can’t find anything better online.

capture
capture1099×494 49.6 KB

without knowing what you want on the label a part isn’t possible.

Peter

7

My apologies, Peter!
I got its labels are right here

9c889452-1799-4cd1-a5a0-56ce17a9f8a2 1
9c889452-1799-4cd1-a5a0-56ce17a9f8a2 11920×3413 349 KB

8

OK that should be enough. to do the job. It will be up in a while.

Peter

9

Thanks much Peter, I will be waiting

10

This part should do what you want.

Tr-Htse-Soil-Vwc-Sensor.fzpz (4.8 KB)

Peter

1 Like
11

This is incredible, You are the best. thanks a lot.
I can’t thank you enough.

Onan

12

For these exists and functional, but BB ‘looks wrong’ cases, can we put up a general suggestion to overlay an image in BB view? No special part needed.

Especially for things like sensor heads.

13

Probably a good suggestion, although in this case the output pins are also different (a voltage rather the RS485 output) making schematic somewhat wrong as well . Still something to consider in future (assuming I remember to do so of course :slight_smile: .)

Peter
