Hello, I’m looking for this component: Amazon.fr
Hello,
unfortunately I cannot find a suitable datasheet for this. I assume that there are only 8 connections and they are 0.1 inch (2.45 mm) apart from each other.
I would take a standard breadboard view of a display and combine it with an 8-pin header.
Can you send me the dimensions for the size of the display and the position of the pins?
(Even better, the datasheet, if available)
Best regards, Harald!
I have a Fusion 360 file if that can help
Good morning,
yes, I’ll give it a try. Send me the link to this file.
Regards, Harald!
2-8in 240x320 TFT LCD ILI9341.zip (1.7 MB)
Good morning, please excuse my late reply.
I mostly only read in the forum: Parts-Help
So, regarding the files. Unfortunately, I can’t do anything with them. Do you have the component? If so, I would need the following measurements.
Length and width of:
- entire component
- screen
- PIN header
Position from bottom and right
- PIN header
Then I could adapt an existing screen.
Regards, Harald!

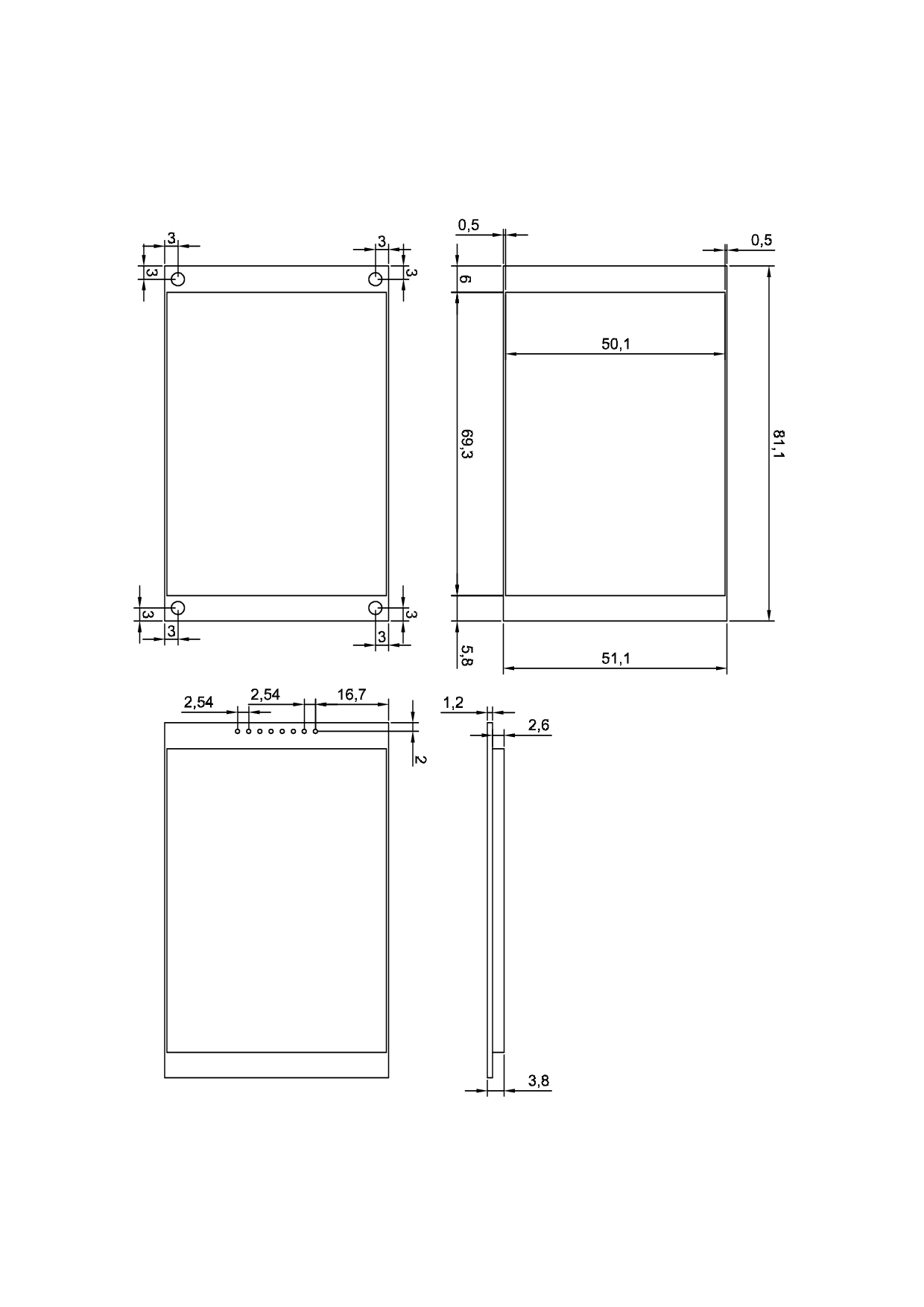

That’s quite a technical drawing!
I’ll get to work on the component after Easter!
Regards, Harald!
Good morning,
I have a variant ready. I have not added the drill holes. If you need them, I will have to rework the dimensions again. They need to be exactly right. But perhaps this version is already sufficient.
Here is a test:
Test.fzz (11.9 KB)
Here is the component to import:
LCD_TFT_2_8_Zoll.fzpz (7.4 KB)
Regards, Harald!
Yes, the first error - I didn’t know that the version is not backward compatible. Which version of Fritzing do you have?

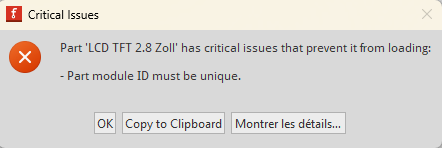

The second error indicates that you already have a part with this ID installed. You would need to delete that.
But I’ll change the ID for you. Then it should work…
LCD_TFT_Dolla_Tek_2.8_Zoll.fzpz (7.7 KB)
Please try importing this part.
Regards, Harald!
yes it works thank you!
