YC324 resistor array

[real-bombinho]

Name of the part
YC324

Previous work, similar parts
Unfortunately I have not found anything close, there is a python script for making THT resistor arrays but this is not overly helpful

Top view

H : 1.10± 0.15
H1: 0.90± 0.15
P: 1.27± 0.05
B: 0.50± 0.20
P: 1.27± 0.05
L: 5.08± 0.20
W2: 3.20± 0.20
W1: 0.40± 0.15

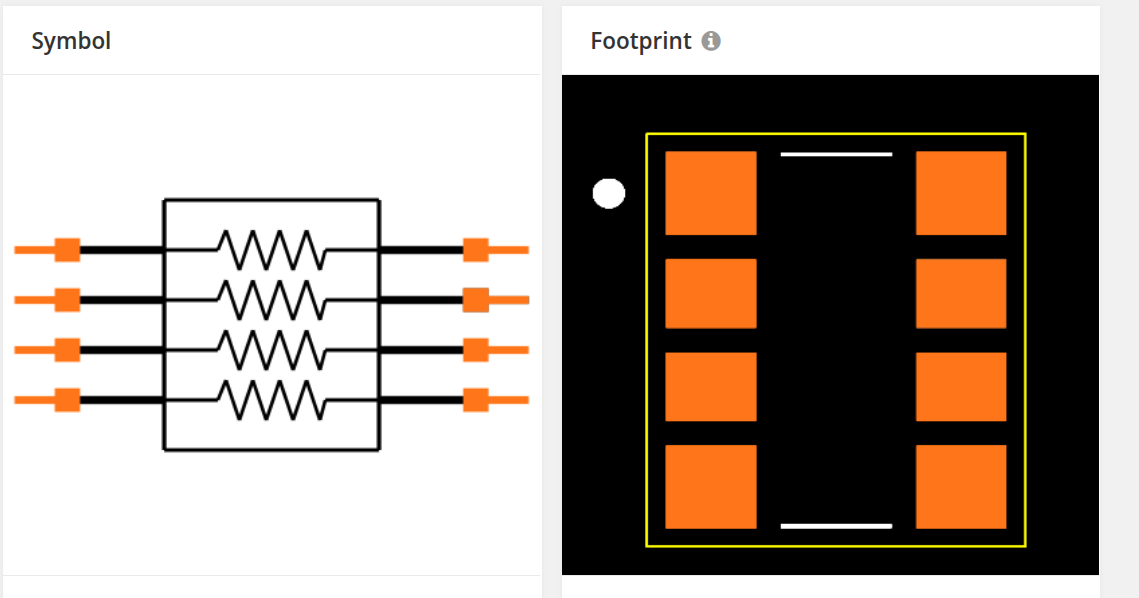

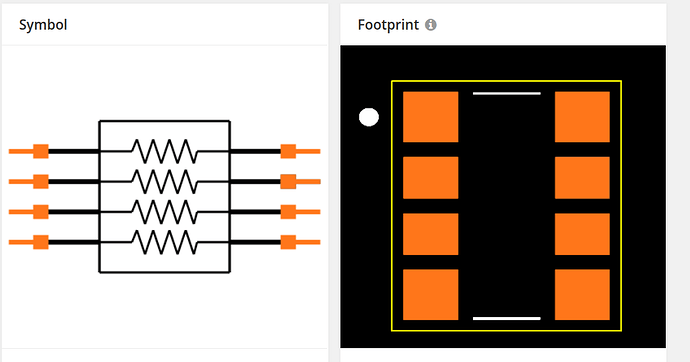

There appears to be something on Snapeda:

there was an .lbr file available when I selected EAGLE, I do not seem to be able to attach the file as such, so I will quote the content at the end of this message.

Foto or vector graphic, no links here please.

Datasheet
The official documentation of the part manufacture is linked here:

PDF of the manufacturers datasheet

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy) → resistor array

Footprint
SMD8

<!--This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License (CC BY-SA) with Design Exception 1.0-->
