WEL-R7U02 Bill acceptor cable part

parts help
1

Name of the part
WEL-R7U02 cable

Previous work, similar parts
n/a. cant find anything on the internet. but here is the documentation of the bill acceptor i needed https://www.topvme.com/index.php/files/329/DMManual/1742/TB-Series-Bill-Acceptors-User-Guide-EN-Ver117.pdf

Top view

image664×619 15.9 KB

Datasheet
The official documentation of the part manufacture is linked here:

https://www.topvme.com/index.php/files/329/DMManual/1742/TB-Series-Bill-Acceptors-User-Guide-EN-Ver117.pdf

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

Footprint
E.g. SOT23-5 , TO-220.
This usually does not apply to breakout boards.

2

I don’t see a purpose for such a part as there is no Fritizng part for the bill acceptor that it attaches to and thus nothing to connect it to. If you want a bill acceptor part you would need to specify which one you want.

Peter

3

Hello,

I have TB74-U and would be great if there is a fritzing part for that.

4

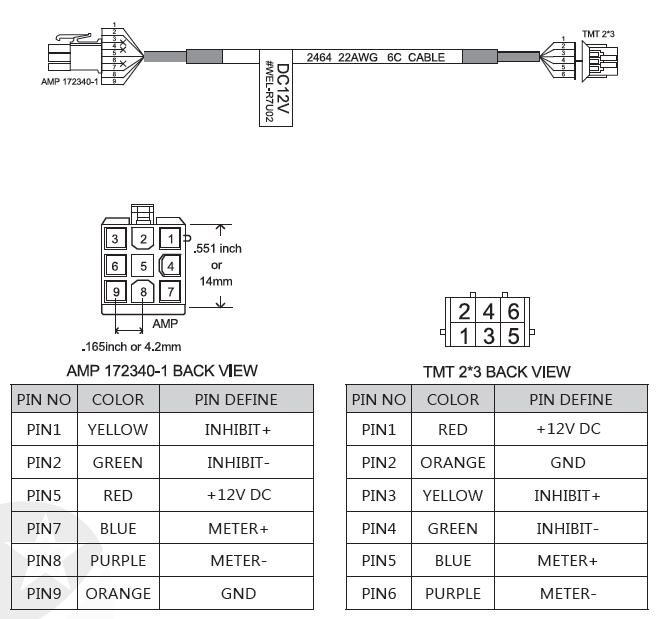

You have only asked for one of the two available cables (the 6pin one circles in blue.) Is that all you need or do you want the 8 pin cable as well and if so which one

capture

WEL-R7U06

RS232

or

2WIR-CP2102N–00

USB

Peter

5

I only need the WEL-R7U06 cable, but it would be awesome if you can do the 8-pin as well. some one might need those in the future

6

OK this part should do what you want. The 8 pin cable is the same for both options so it is in as well. Pcb view has been suppressed as not useful (it connects via the cables.)

Bill-acceptor-TB74-U.fzpz (11.4 KB)

Peter

7

That works! Thank you always @vanepp
