Hi to all,
I’m not really a beginner but this MCU board seems to be really difficult
WeActStudio.STM32F4_64Pin_CoreBoard
This is similar to the Blue Pill or Black Pill but it has different layout.
You can find more here:
More over I didn’t find a procedure from the step to the svg file.
Br
Tommaso

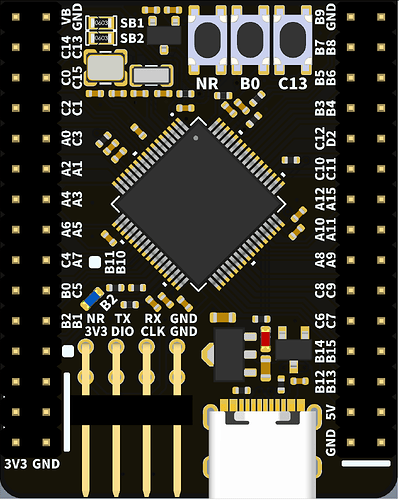

This part should do what you want. Note pcb view has been suppressed as not useful. Also the RA header is cosmetic only the connections are only active on the pads circled in green. There is no way to make a dual row RA connector in breadboard.
WeActStudio.STM32F4_64Pin_CoreBoard.fzpz (30.6 KB)
Peter
Great! It will be usefull!
Thank you!
