Name of the part❗Waveshare HMMD mmWave Sensor

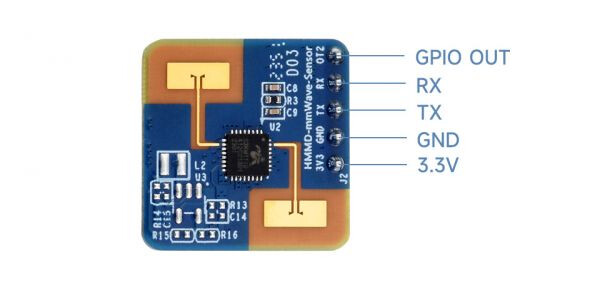

Top view❗
Datasheet❗https://www.waveshare.com/wiki/HMMD_mmWave_Sensor#Hardware_Connection
Type
Integrated Circuit (IC)
1 Like
OK @jules_uk I’l start making the part
1 Like
Thanks, no rush, I have only just started using it and was starting to design the circuit - hence my search for a part.
In case it is of interest to you, I have located the manufacturer’s datasheet. It is at https://en.ai-thinker.com/Uploads/file/20231016/20231016032622_13559.pdf.
Waveshare HMMD mmWave Sensor.fzpz (12.7 KB)

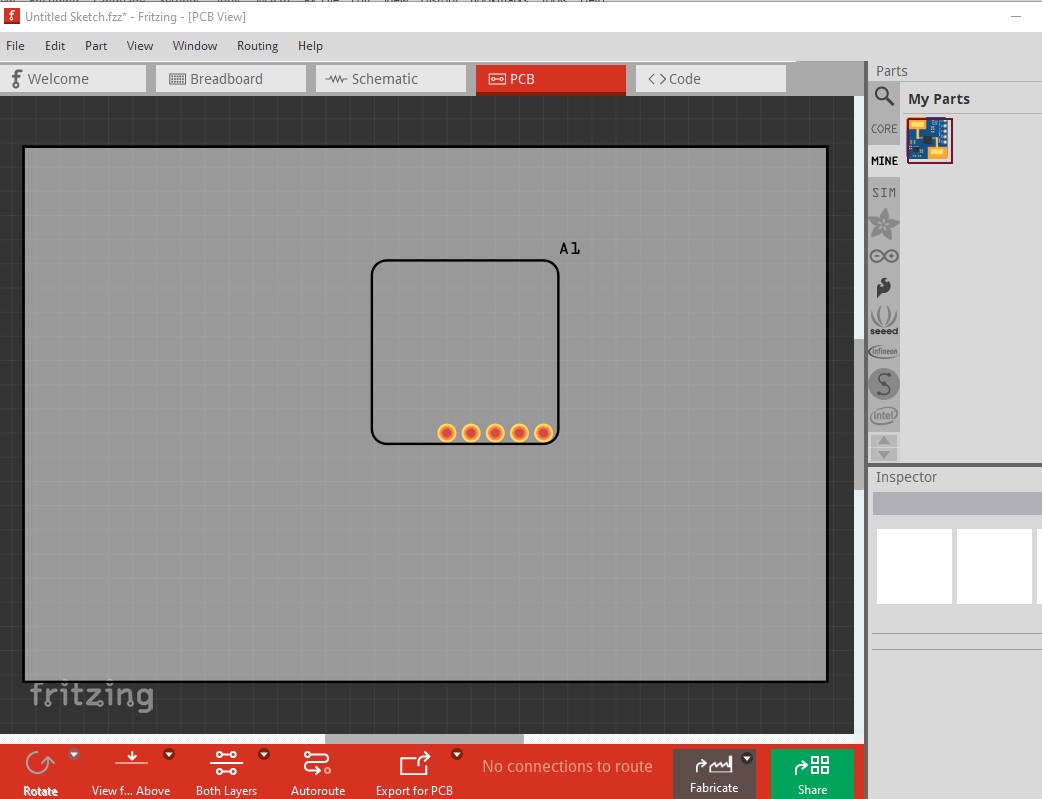

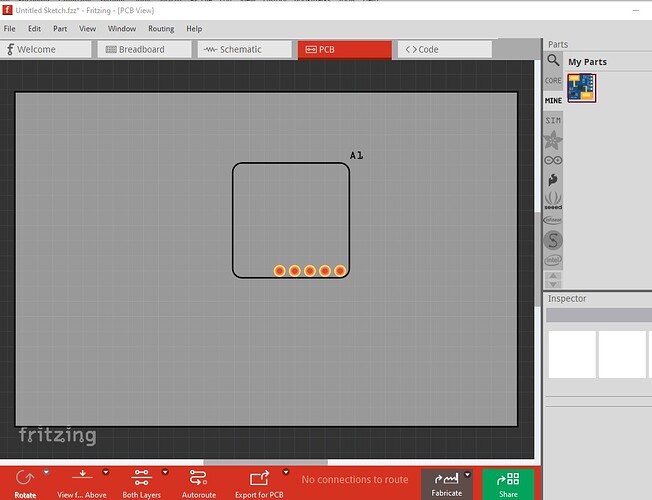

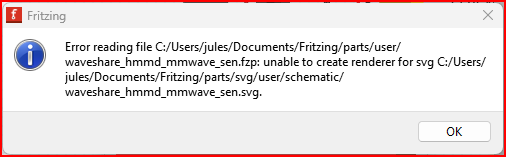

Great, thank you. One slight problem, which does not affect my use of the part, when opened Fritzing reported an error “unable to create renderer for the file”:
Will this be a problem for other users?

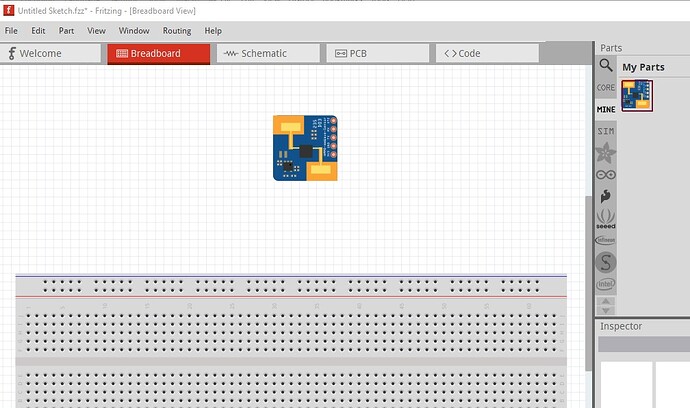

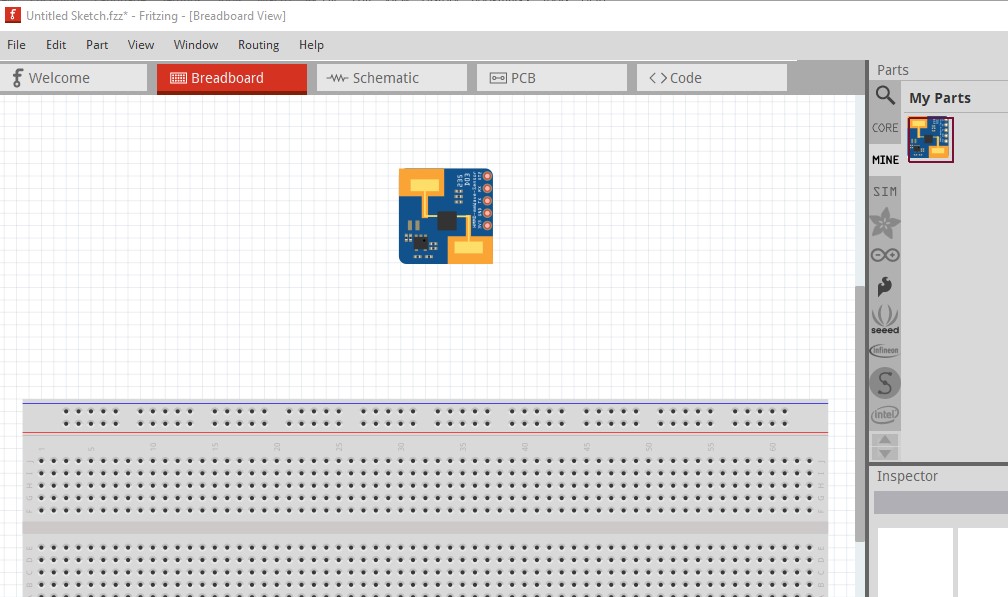

Huh, loaded perfectly fine in my machine. I’ll check again
The supplied .fzpz file works fine for me on Fritzing 1.0.6 as well:
It looks like you have a problem of some kind on your machine.Your machine looks to be having a problem reading or rendering the schematic svg file for some reason.
Peter
That explains it - I am running an old version (0.9.3), so I will update it to 1.0.6.
Okay, works fine now, version 1.0.6 on Windows 11 (my old version was from my Windows 10 machine).

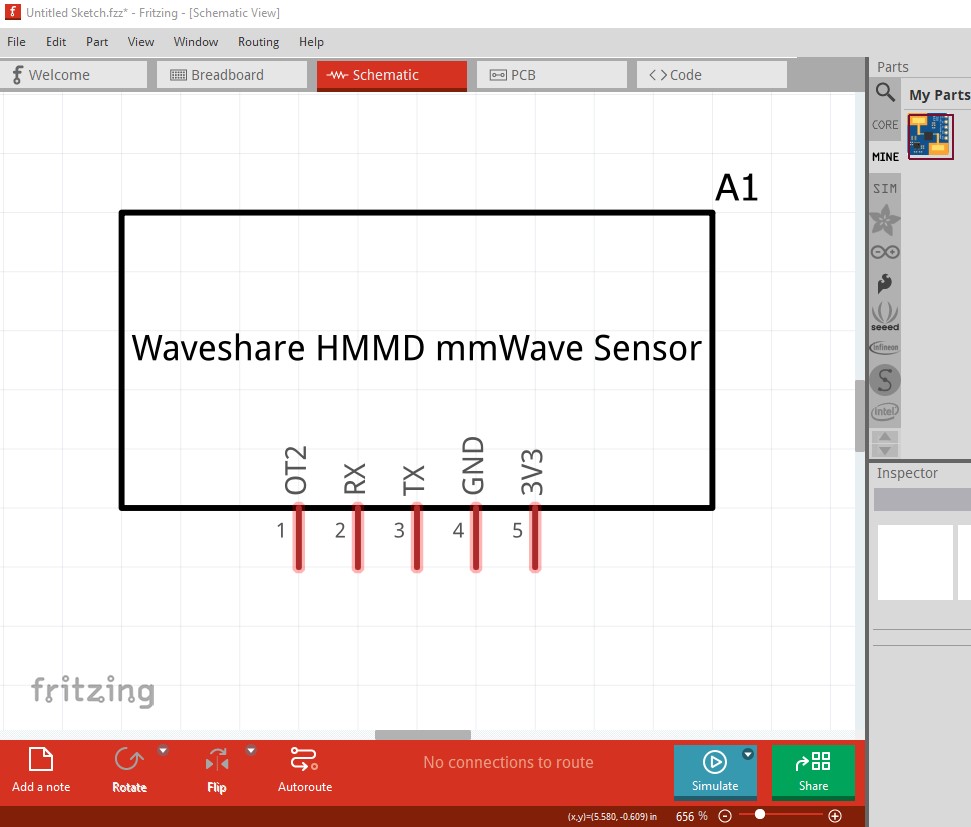

Yes on 0.9.3b I get the same error, the schematic svg won’t render. Don’t know why because schematic looks normal.
Peter
