Ultra-miniature pc board type power rel ay

[cescbp]

Name of the part
ULTRA-MINIATURE PC BOARD TYPE POWER REL AY
UL,C-UL File No.:E179745
TUV File No.:40007481
CQC File No.:CQC02001002131

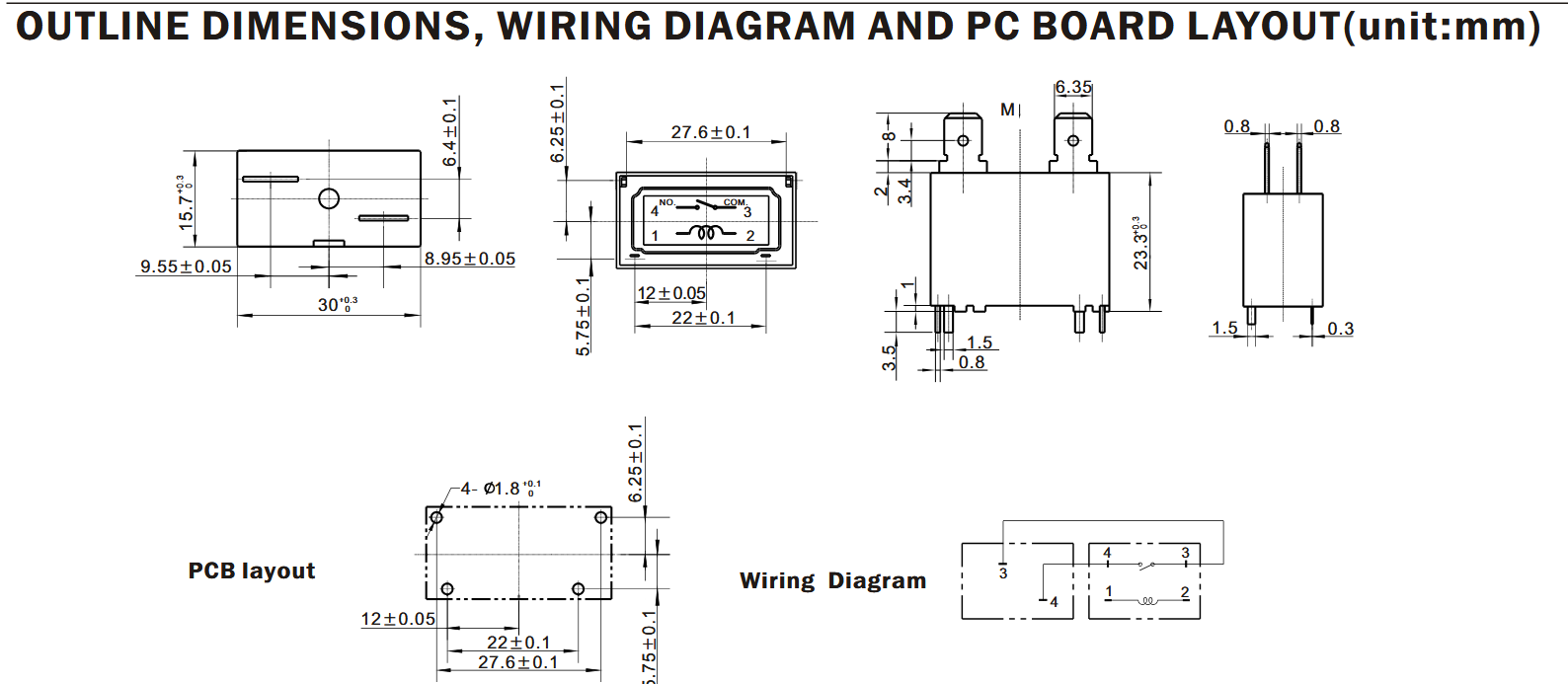

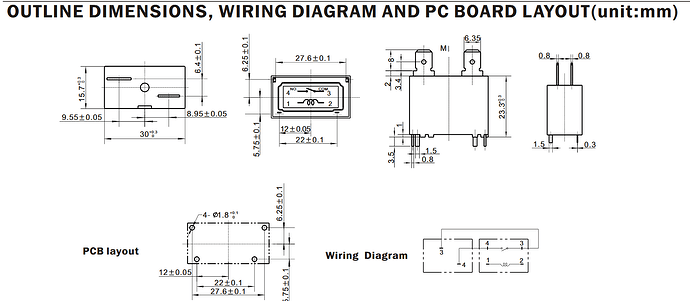

Top view

Foto or vector graphic, no links here please.

Datasheet
The official documentation of the part manufacture is linked here:

SFK-112DM.pdf

Please add a link to PDF of the manufacturers datasheet

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
[ x] Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

[vanepp]

This part may do what you want. The datasheet does not specify top view or bottom view so I assumed top view, if it is bottom view the connections will be incorrect. The mounting hole is only on silkscreen. If you want a mounting hole you need to drag in the core parts→pcb→hole part position it over the hole in silkscreen and then set the size appropriately to drill the hole.

relay-skf112dm.fzpz (4.2 KB)

Peter

[cescbp]

Peter, that’s perfect! I printed it out and checked, and it matches exactly. Thanks a lot!
