Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board

parts help
1

Name of the part: Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board

previous work, similar parts

No previous Fritzing part found by default.
However, similar modules exist such as:

  • TP4056 Li-ion Charging Module (Micro USB or Type-C)
  • MT3608 5V Boost Converter Module

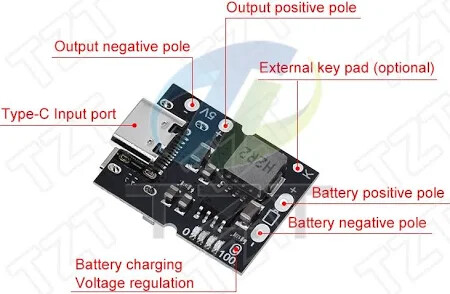

top view:

image450×294 39.6 KB

Datasheet❗

While this module doesn’t have a single official manufacturer, it typically uses the following ICs:

Reference datasheets:

  • TP4056
  • MT3608

Key specification:

  • Input Voltage: 3.0V – 4.2V (single lithium battery)
  • Output Voltage: 5V (regulated)
  • Output Current: up to 2A
  • Charging Voltage: 4.2V ±1%
  • Charging Current: up to 2A
  • Conversion Efficiency: up to 96%
  • Input Port: USB Type-C
  • Protection: Overcharge, over-discharge, and short-circuit
  • Dimensions: ~36mm × 21mm
  • Main ICs: TP4056 (charging), MT3608 (boost converter)

Type

Breakout board, sub assembly, plug-in module (A)

Footprint

This module does not use a standard IC footprint (like SOT23 or TO-220), but for documentation purposes you can describe it as:

Footprint: Custom breakout board

  • Dimensions: ~36 mm × 21 mm
  • Mounting holes: 3 mm diameter (x2)
  • Connectors:
    • Type-C input port
    • USB-A output port
    • Solder pads for B+, B−, OUT+, OUT−
2

We would need a web site that resolves without issue (shopee usually wants a log in which I am not willing to make, in this case it wanted some kind of puzzle with no instructions.) A web site with the physical dimensions of the board and the labels and positions for all the connectors and preferably a flat jpeg image of the board for placing the components (and no login requirement) is what is needed.

Peter

3

Hi Peter

I managed to get in, so now I’m checking it

4

To the good! I couldn’t figure out what the puzzle wanted.

Peter

5

Oh basically you had to fit the puzzle piece to complete a picture

6

this is the alternative link of this product:
https://robu.in/product/type-c-usb-5v-2a-step-up-boost-converter-with-usb-charger/

7

also try this product link:
https://manuals.plus/asin/b09yd5c9qc?nonce=879580

8

Hello vanepp, you can use this link, which has manuals that I think you need to create it.
https://manuals.plus/asin/b09yd5c9qc?nonce=879580

9

@RAPTOR7762 is making a part (he figured out how to access the original site.)

Peter

1 Like
10

@jeroro Here

DWEII USBC 5V 2A Boost Converter Module.fzpz (14.4 KB)

1 Like
11

THANK YOUU SO MUCHHHHH @RAPTOR7762 and @vanepp
