Teensy 4.1 part without upward pins

[SteamingHead]

Hello guys,
does anyone have the Teensy 4.1 part for Fritzing without the upward pins?
Thank you!

[vanepp]

There is a teensy 4.1 part here

Teensy 4.1 part

There were a number of errors in the original part (including the one above) here is a corrected part. Teensy 4.1-fized.fzpz (20.6 KB) Note this part has one error (that I can’t fix): the ethernet connector is 2mm not 0.1in and is thus in the wrong place and the wrong size in pcb (and in breadboard.) In practice you are unlikely to want to use the ethernet ( a ribbon cable which will work is the more sensible choice) but be aware the part is wrong in that area. To fix this I would need to know…

you would need to define what “without upward pins” means. The part has pads and thus no pins.

Peter

[SteamingHead]

Hello @vanepp , thanks for your reply.

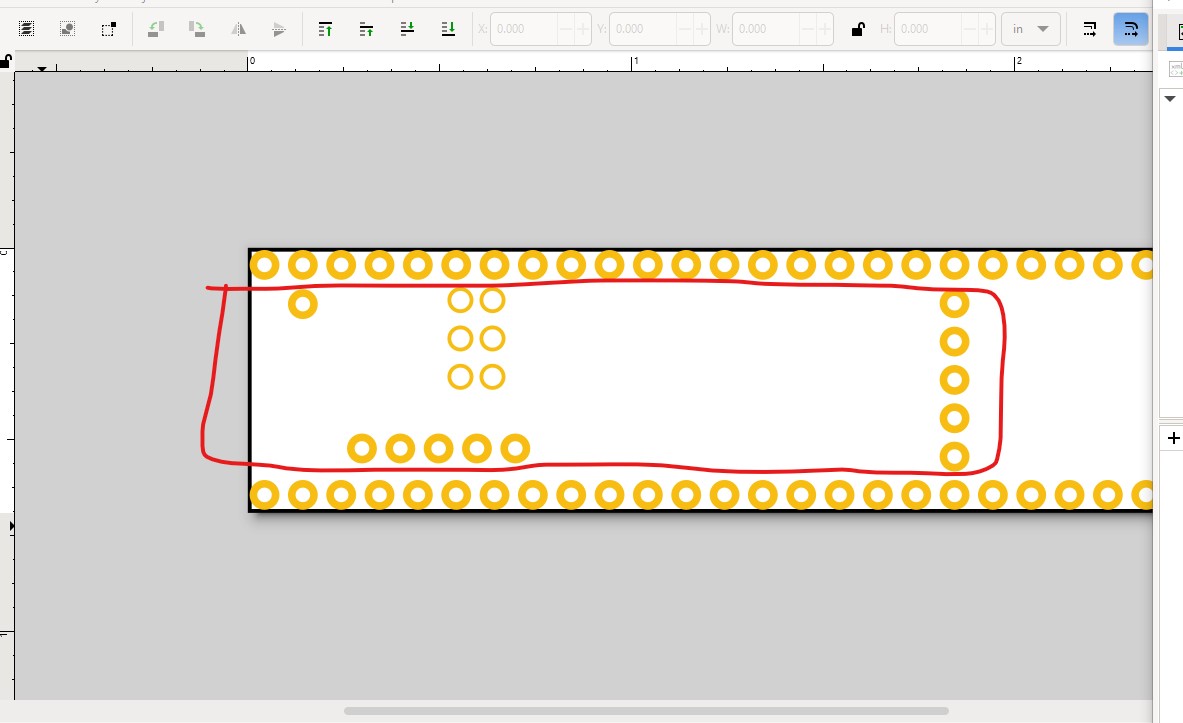

I meant the pins that are not on the main parallel rows, more specifically USB Host, Ethernet, {On/Off, Program, GND, 3.3v, VBAT}.
Unfortunately my Fritzing editor is not working otherwise I would make it.

Let me know

Thanks

[vanepp]

I am still unclear on what you are requesting. It sounds like you want these pins in pcb deleted (which is possible) is that correct?

Peter

[SteamingHead]

Correct!
Unfortunately my Fritzing editor doesn’t work properly otherwise I would give it a try.

[vanepp]

Even if parts editor was working for you it can’t do this. It requires editing the .fzp file directly to implement (along with the pcb svg,) This part should do what you want. You can still connect to the middle pins in breadboard and schematic but not in pcb.

Teensy 4.1-no-middle-pins-in-pcb.fzpz (20.1 KB)

Peter
