SRD-12VDC-SL-C Edited from SRD-05VDC-SL-C Not Matched

parts help
1

Hi all,

I want to use SRD-12VDC-SL-C on my project. So I edited from SRD-05VDC-SL-C to SRD-12VDC-SL-C but seems like the part doesn’t match with datasheet. I have plugged the part to my pcb but it’s hard to get the part fit with the pcb. I need to bend the terminal to get through the hole but it can’t fit perfectly (still have gap between the pcb and the part).

What I have found here:

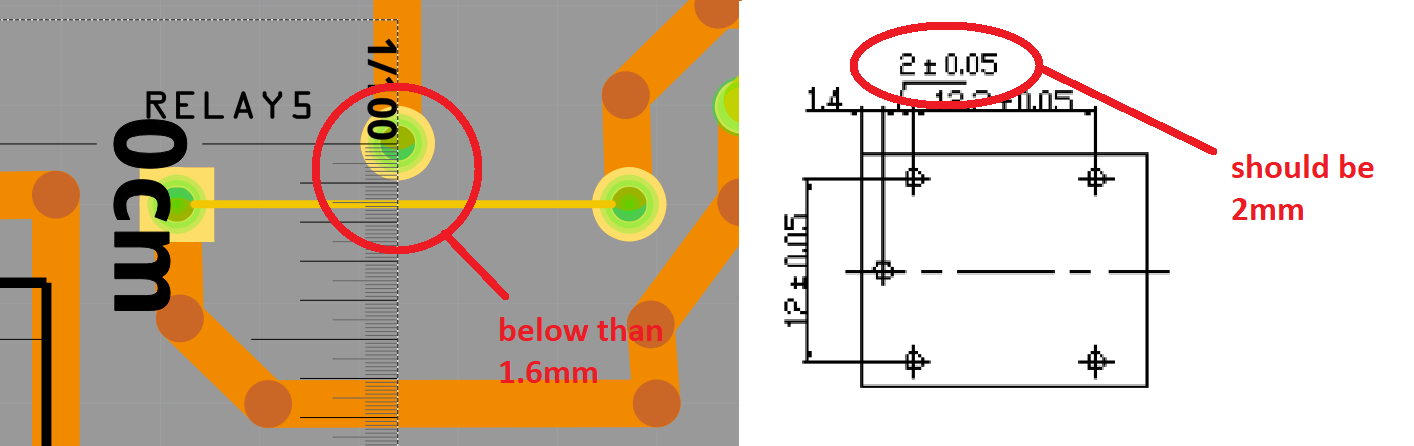

opening com
opening com1494×548 58.3 KB

The opening for COM pin is not matched.

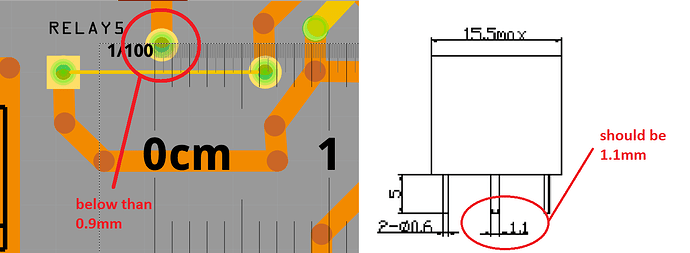

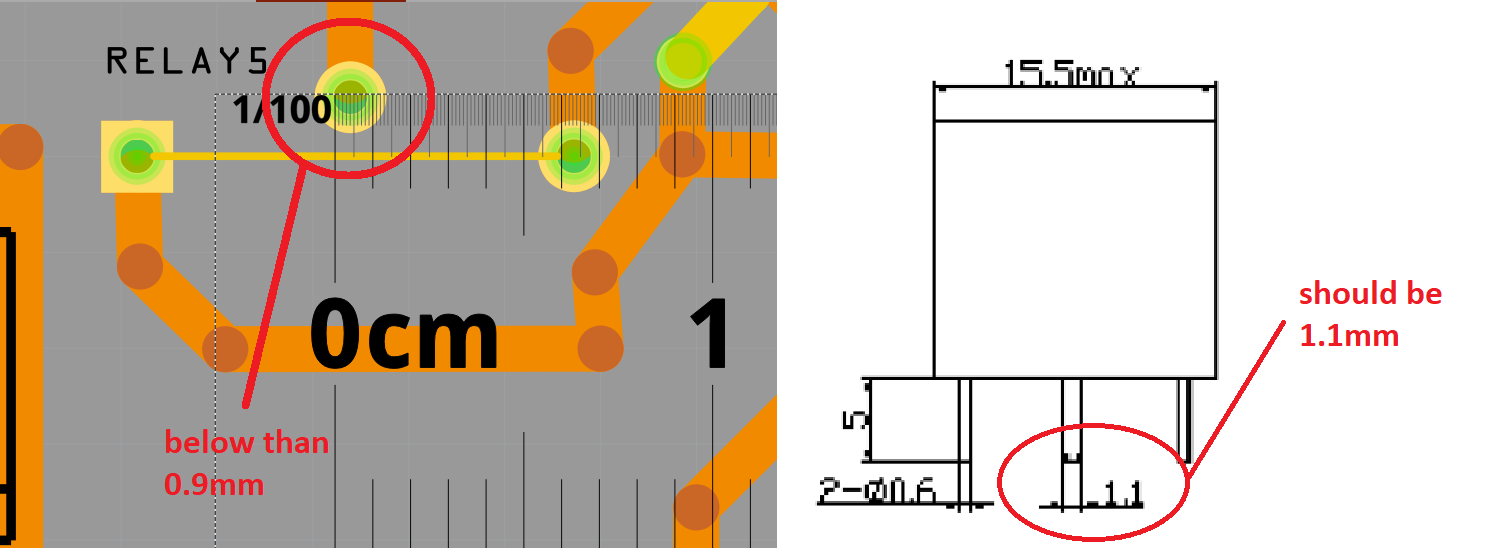

spacing
spacing1414×446 54.7 KB

The spacing between COM and Vcc/Gnd not matched.

Anyone please help me to update this part to match with the datasheet and create new one with 12V version.

Here the fritzing part file:
SRD-5VDC-SL-C.fzpz (10.5 KB)

Below is the datasheet for SRD-12VDC-SL-C
https://www.alldatasheet.com/datasheet-pdf/view/1131947/SONGLERELAY/SRD12VDCSLC.html

Thank you.

2

I think you have the old (faulty) part, which has been replaced with this:

SRD-5VDC-SL-C.fzpz (4.9 KB)

This is AFAIK the corrected version made by @vanepp, should be found somewhere in the forum.

1 Like
3

Thank you, sir. I will try this one version.
