Name of the part
HLK-TX510 3D Binocular Face Recognition Module (with 2.8" screen)
Your previous work, similar parts I am designing an access control hardware system. I searched the forum and Fritzing libraries but could not find a part for this specific Hi-Link AI face recognition module. Similar parts would be generic TFT screens or the ESP32-CAM, but the physical dimensions and UART pinout for this specific SoC board are unique.

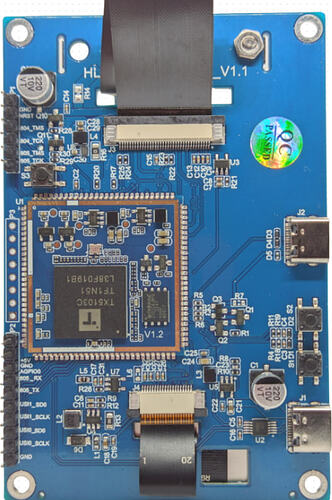

Top view
Datasheet This is a module manufactured by Hi-Link. The core communication is done via UART (5V, GND, TX, RX). Official manufacturer product page and technical specifications: GitHub - blakadder/HLK-TX510: HLK-TX510 Face Recognition module documentation · GitHub
Footprint Not applicable (It is a breakout board).
Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)
