Mean Well MPM-10
I have used Google and the forum search but have not been able to find an MPM-10 series part.

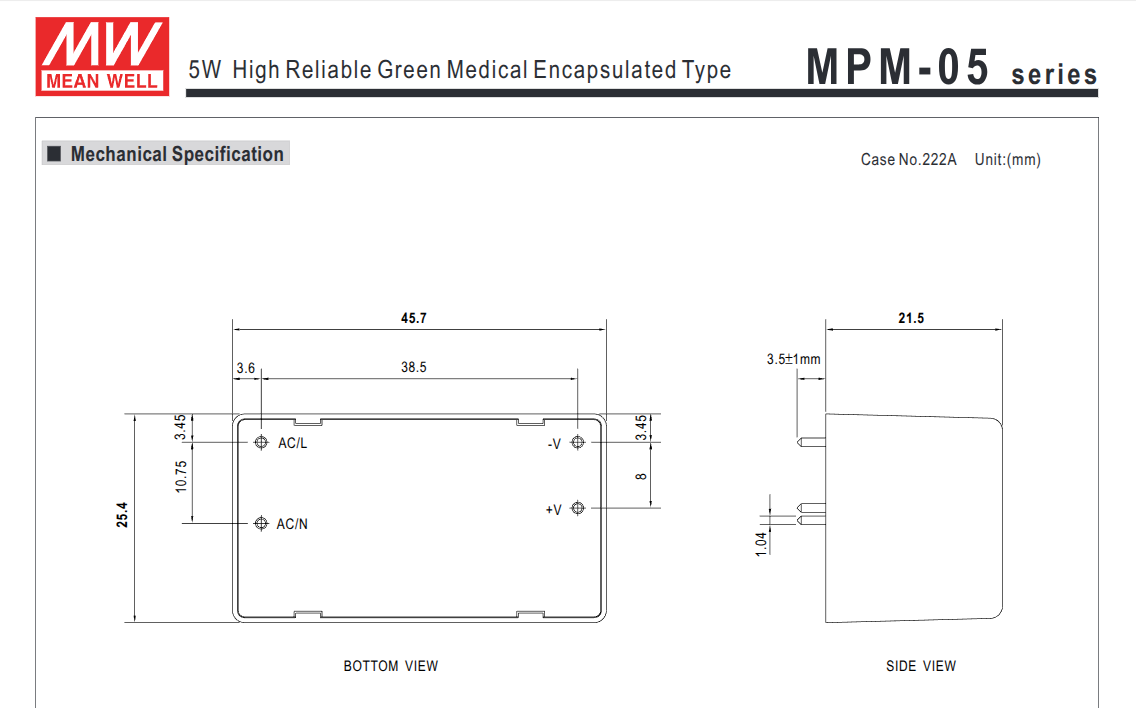

The MPM-05 series seems to have the same footprint, so I guess one part may catch both.
Top right here on this page- Top right in Fritzing Application
- With the search form on fritzing.org (“Go” in the top right area)
- Appending the terms “fritzing part” in your favorite search engine
Name of the partâť—
Your previous work, similar parts
In case there are similar Fritzing parts, or you already started work, please link it here.
Top viewâť—

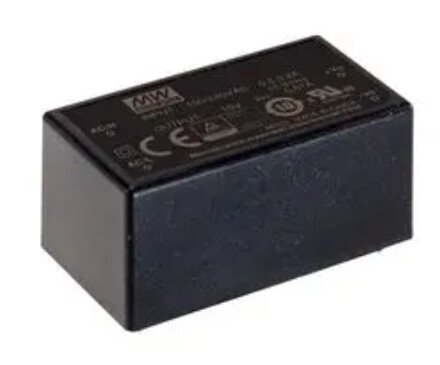

<This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have.>
I would assume a 1.6mm hole/via should do fine.
Datasheetâť—
The official documentation of the part manufacture is linked here:
manufacturer’s datasheet. Here, a link is fine.
Footprint

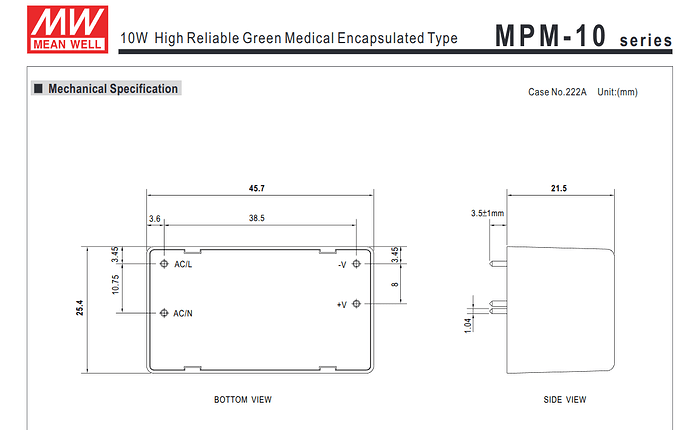

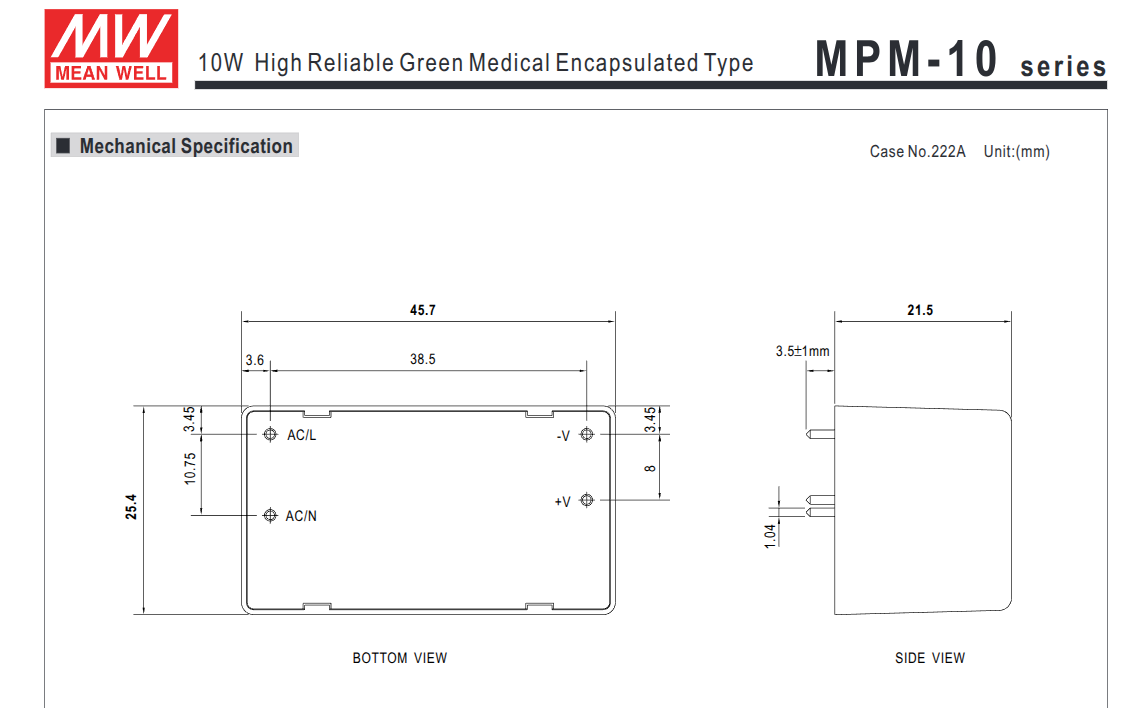

Mean Well specific as per drawing
