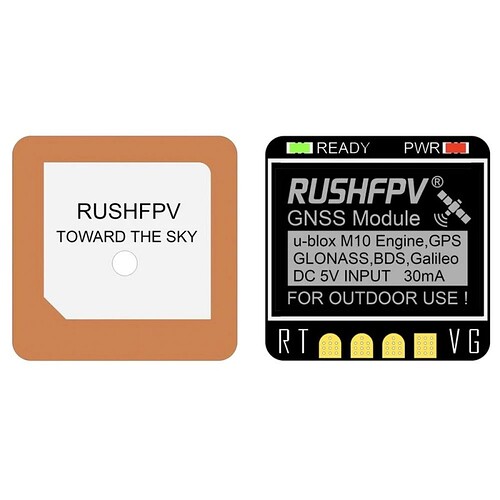

Hi, has anyone made this RushFPV GNSS Mini module for fritzing parts? I hope someone can help me on this.

Thank you.

2

Hello,

I would need the exact dimensions. Do you have a datasheet for it, or could you measure the part for me? I need the outer dimensions and the precise measurements of the four pins. For the pins, I need the size and exact position, ideally accurate to 0.1 mm.

Regards, Harald!

3

Hi Harald,

I understand you need the specifics for a Fritzing part creation.

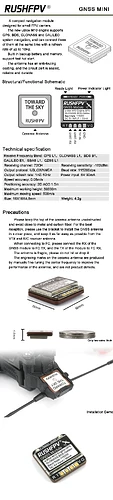

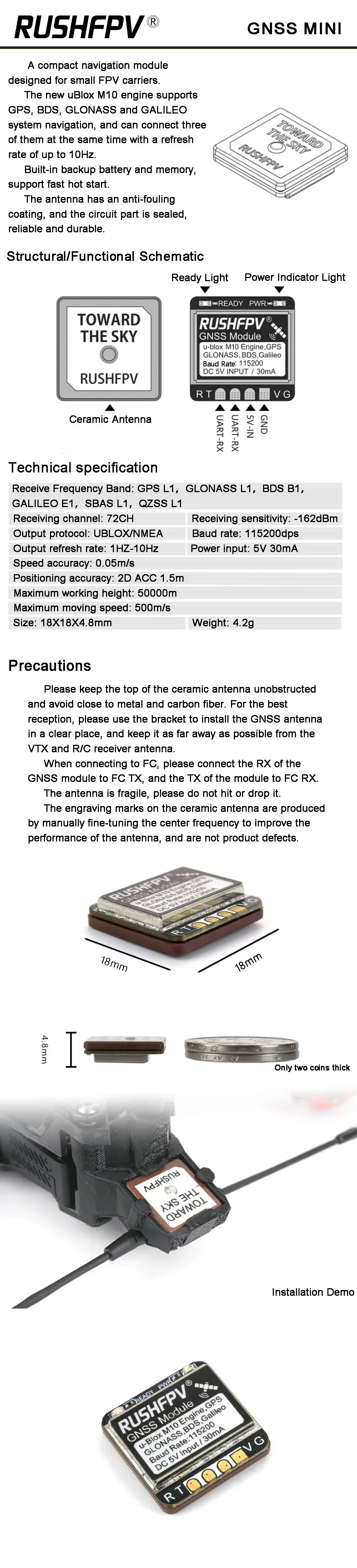

The only official documentation I have is the attached datasheet, which lists the outer dimensions as 18mm x 18mm x 4.8mm. Unfortunately, it does not provide the exact 0.1mm coordinate mapping for the four pins (RT, LT, V, G).

I only have this information at the moment. Is this enough for you to work with.

RushFPV GNSS Mini
RushFPV GNSS Mini1000×4394 343 KB

4

The four contacts, however, are not in the right place in the PCB view. This means the following:

You can’t manufacture a circuit board on which the component is soldered.

It looks like it can also be plugged into a socket.

How are you connecting this component to the rest of your circuit?

I’ll sit down and work on that part over the weekend.

Best regards, Harald!
