Rail DC-DC converters

parts help
1

I need a part for circuit sim (parts) for DD1718PA

can someone help me?

2

I am also looking for it.

.

For a rail-mounted DC-DC converter, I’d first check the input range, output requirements, current capacity, and thermal limits. A clear schematic showing how the converter connects to the rail would also make troubleshooting easier. Components such as IMX424-AAPG1-W should likewise be evaluated against the exact system requirements before integration.

Edit: Thanks, I will wait till Wednesday.

3

Hi,

I can give it a try. Unfortunately, I don’t have any graphics for it, so I’ll have to create all the graphics myself.

Do you guys have some time, something by next Wednesday?

Cheers, Harald!

4

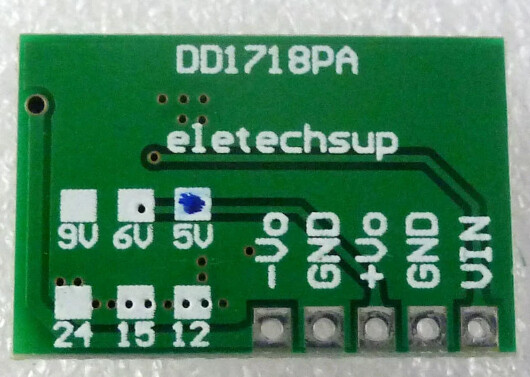

This picture is showing the pinout:

image530×377 66.2 KB
‘’

icon
icon189×123 22.8 KB

This is suitable as icon, I did not see on the web site any size information that allows scaling
