DIN30W24 - DIN Rail Switching Power Supply, 24 V DC / 30 W
.
Top view❗

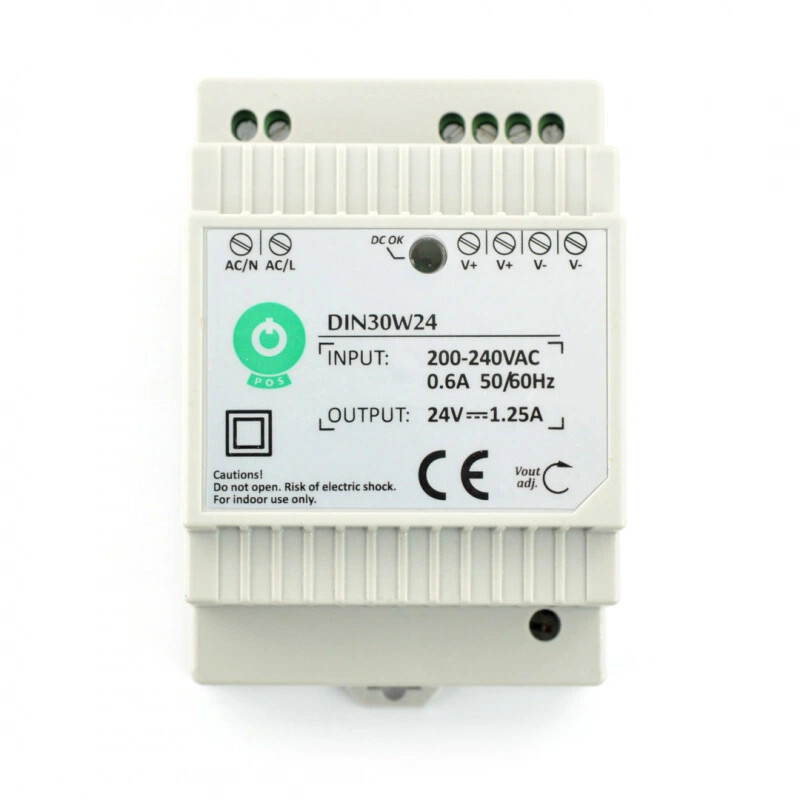

Top view of the DIN30W24 power supply showing terminal layout and control elements:
- Input terminals: AC/L, AC/N
- Output terminals: V+, V+, V-, V-
- Output voltage adjustment potentiometer (Vout adj.)
- Status LED: “DC OK”
(Please paste a photo or vector graphic here – no external links, otherwise the post may be flagged as spam.)
Datasheet❗
Official manufacturer documentation (PDF):
DIN30W series - technical specification (DIN30W24)
Additional info:
Output
Rated output voltage: 24 V DC
Output current: 1.25 A
Rated power: 30 W
Output voltage adjustment range: 21.6 – 28.5 V
Voltage tolerance: ±2%
Line regulation: ±1%
Load regulation: ±1%
Ripple and noise (max.): 360 mVp-p (20 MHz bandwidth)
Input
Input voltage range: 180 - 264 VAC
Frequency range: 47 – 63 Hz
Typical efficiency: approx. 85%
AC input current (typ.): 0.45 A @ 230 VAC
Inrush current (typ.): 40 A @ 230 VAC
Leakage current (max.): 1 mA @ 230 VAC
Protections
Overload protection: 140-210% of rated power, hiccup mode, auto recovery
Short-circuit protection: hiccup mode, auto recovery
Overvoltage protection: 36-45 V DC, output shutdown, restart by power cycling
Thermal protection: shutdown at 135-165 °C, automatic recovery
Mechanical & Environmental
Mounting: DIN rail TS-35
Cooling: free air convection
Dimensions (L × W × H): 62.5 × 93 × 56 mm
Operating humidity: 20-98% RH (non-condensing)
Vibration resistance: 10-500 Hz, 2G
Standards & Compliance
Safety standard: EN60950-1
EMC emission: EN55022
EMC immunity: EN55024
Harmonic current: EN61000-3-2, EN61000-3-3
Insulation strength (Input/Output): 4.2 kV DC / 30 s
Insulation resistance: 100 MΩ @ 500 V DC
Pin Assignment
1 - AC/N (Input)
2 - AC/L (Input)
3, 4 - V+ (Output)
5, 6 - V− (Output)
7 - DC OK (status indicator)
8 - Vout adjustment
