Dear community,
I hope this message finds you well. I joined this forum because I need help creating a component for a research project. I’ve found many very useful components here, with excellent designs. So I’m hopeful someone might be able to assist me.
I’d like to ask if anyone can create a load cell called FX29. It is actually very similar to the load cell requested in the following forum thread: Button Load Cell Request
In which user @vanepp did a wonderful job.
Since I’d like to use it for my project, may I ask if someone could create a new version with the following modifications:

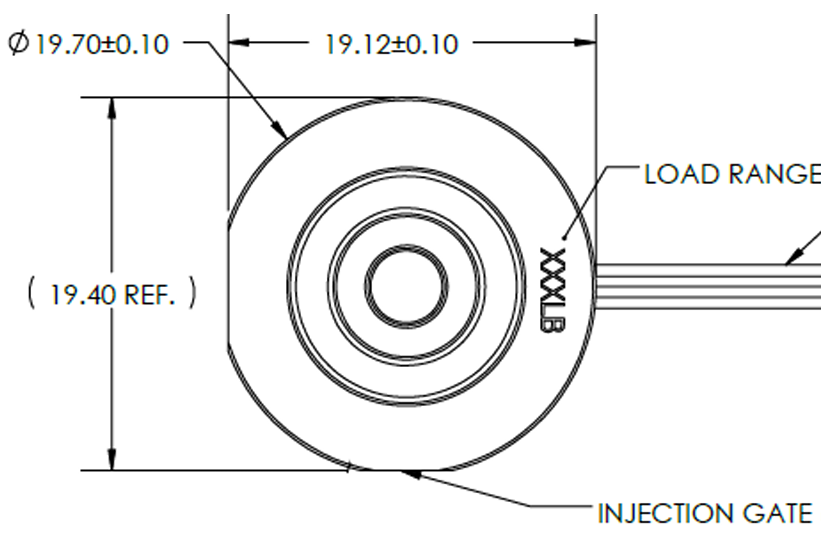

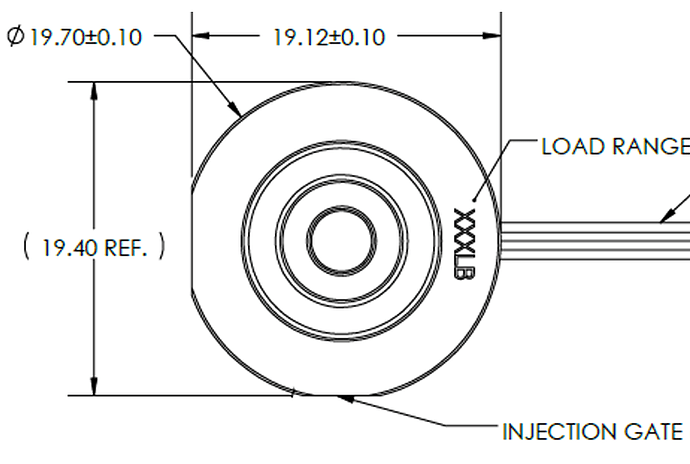

- The correct dimensions in millimeters for this load cell are shown (it’s smaller than the one in the FX1901 post):

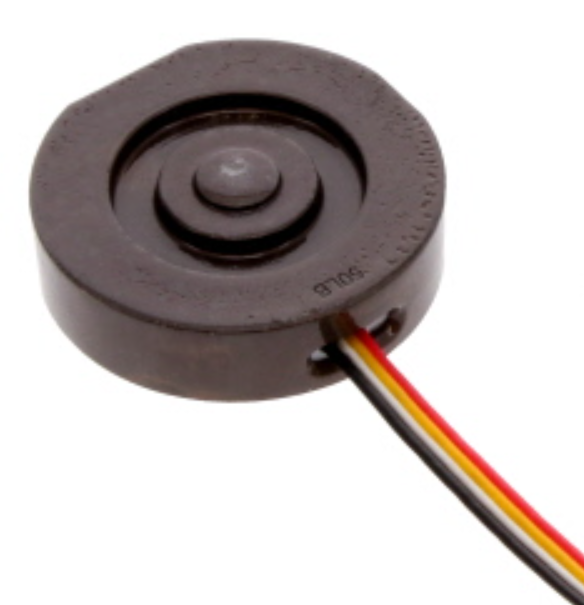

- I’m also attaching an image of how it looks.
So, I’m kindly asking if someone could update the breadboard view graphic and the icon accordingly.

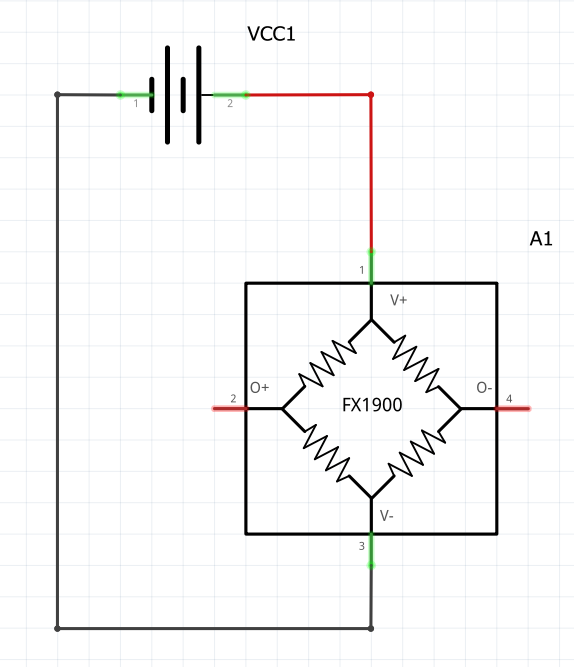

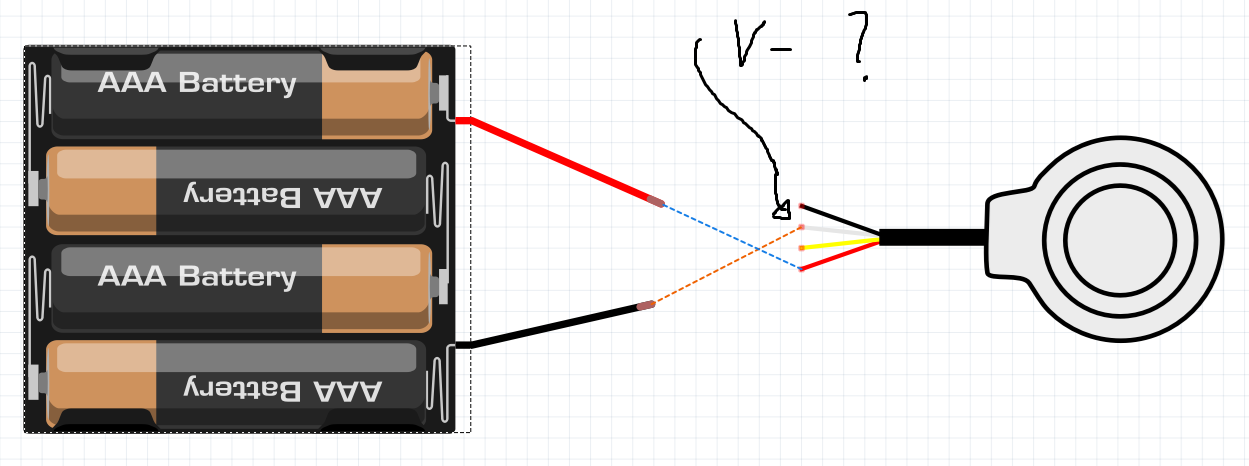

The electrical part is perfect as shown in the post I initially linked. I would just like to request that the name FX29 be added, and also to verify whether the black wire is correctly marked as ground. I tried using the load cell, and I believe the white wire is recognized as V- (i.e., ground) instead of the black one.
I’m not sure if I’m asking too much, but I truly hope someone can help me, it would be essential for me and my work.
Thank you to anyone who can help!
