Parts Help"ESP32 DevKit V1 – 38 Pin"

parts help
1

Name of the part

ESP32 DevKit V1 - 38 pin

Previous work, similar parts

Yes, similar Fritzing parts exist for:

  • ESP32 DevKit V1 (30-pin) – not the full 38-pin version
  • ESP-WROOM-32 bare module – not suitable for breadboarding

This part request is for the full 38-pin DevKit V1 board, breadboard-compatible.

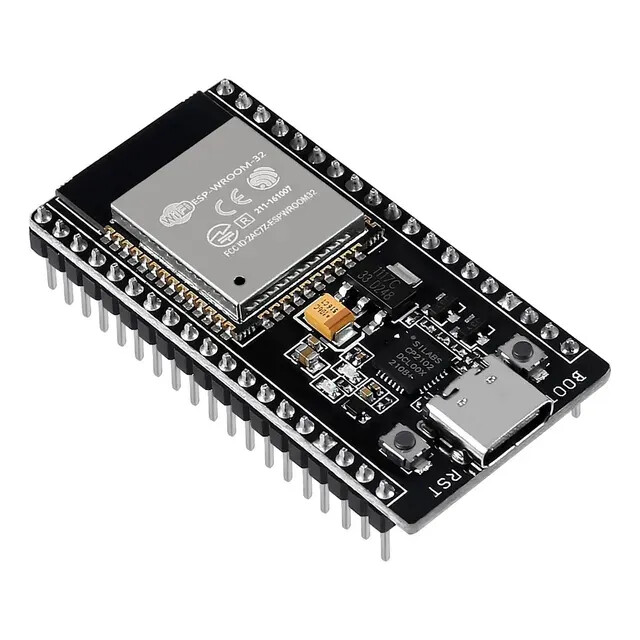

Top view

image640×640 74.3 KB

(If you need to embed this in Fritzing, convert to a vector SVG of just the PCB outline and pin labels.)

Datasheet

**Module:**https://drive.google.com/file/d/1uqnuld9e0K1Qgze35BZCdqvKoD7ftkeP/view?usp=sharing

Type

[x] Breakout board, sub assembly, plug in module (A)

Footprint

  • Type: Dual row, 2.54mm pitch, 19 pins per side
  • Length: ~52mm
  • Width: ~25.5mm
  • Pin count: 38 (19 pins x 2 rows)
  • USB: Micro USB connector on board
2

It is likely this one but there isn’t enough information here to tell for sure (found via a google search of the form “fritzing part ESP32 WROOM 38 pin.”

Peter

3

ah yes, this matches all the specifications, thank you!
