Part request - SB Components Micro RP2040. Can anyone help please?

parts help
1

I’m really new here, so sorry if I ask dumb questions! I’ve had a go creating a new part, but got lost on the way…

The product is found here: https://shop.sb-components.co.uk/products/micro-rp2040?srsltid=AfmBOopdIG7F8PfOC00FCe6ktTwmInNG1rmbz4CyNIUCRgu5JHHVT937

More info is here: https://www.cnx-software.com/2023/07/03/micro-rp2040-is-a-tiny-raspberry-pi-rp2040-module-with-a-usb-type-c-port-28-castellated-through-holes/

Many thanks!

Colin.

2

Hi @chutchins and welcome to the forum.

Do you happen to have the positions for the pins?

Dimensions – 25 x 24.95mm (Breadboard compatible)

3

I replied by email but it doesn’t show here… It fits Breadboard, and the pinout is like this - Google Image Result

4

It is less the pinout, albeit that would become important later

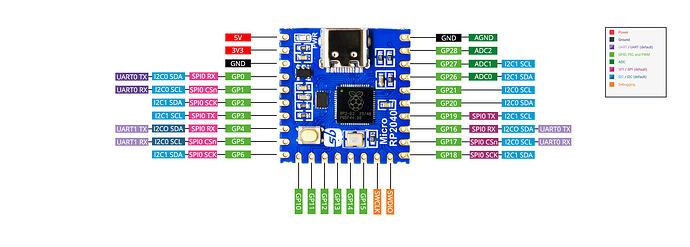

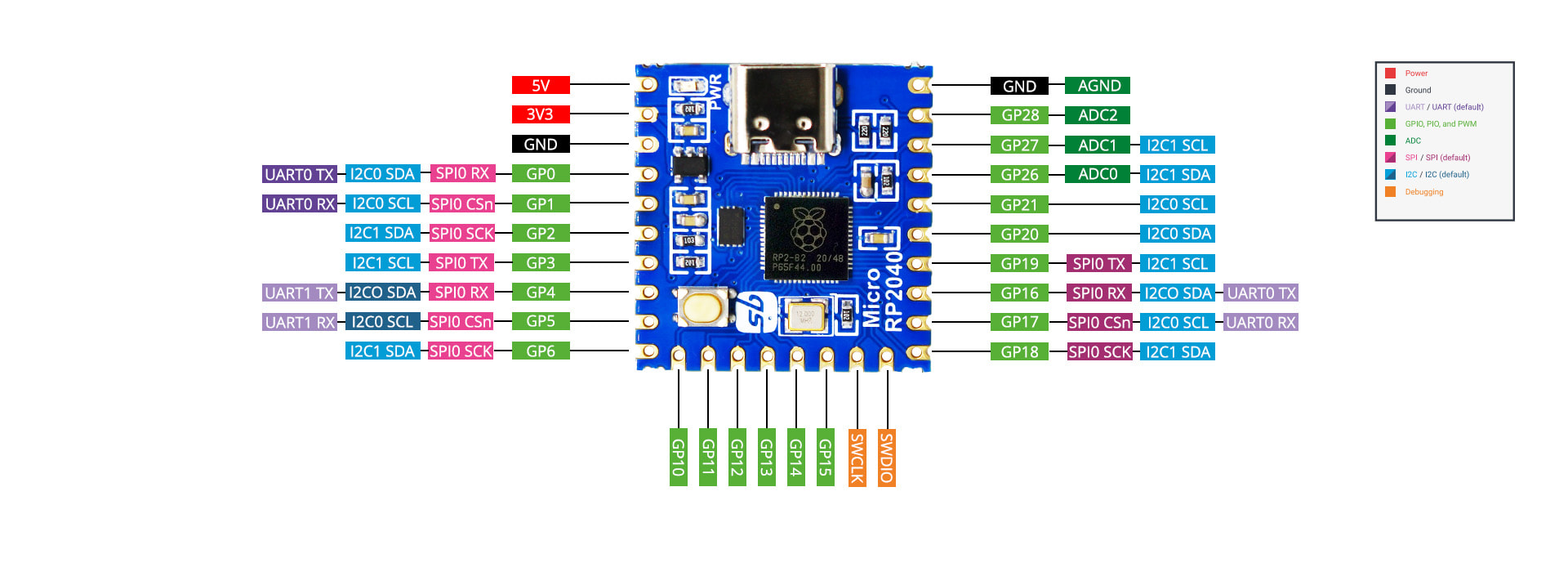

image1920×689 222 KB

It is more the actual physical position of the pins, there seems to be an offset on the bottom row.
