[Part Request] MDR-60-24 60w Din Rail 24v & 5v Power Supply

[spiCED]

Hello Peter, can I request fritzing parts for my Industrial Control Panel Project.
I need a specific Din Rail Power Supply. Actually I need 2 parts for this Power Supply I need a 5v and 24v model.

Please Take Note: I need a 5v and 24v models.

---

MDR-60-24 and MDR-60-5❗

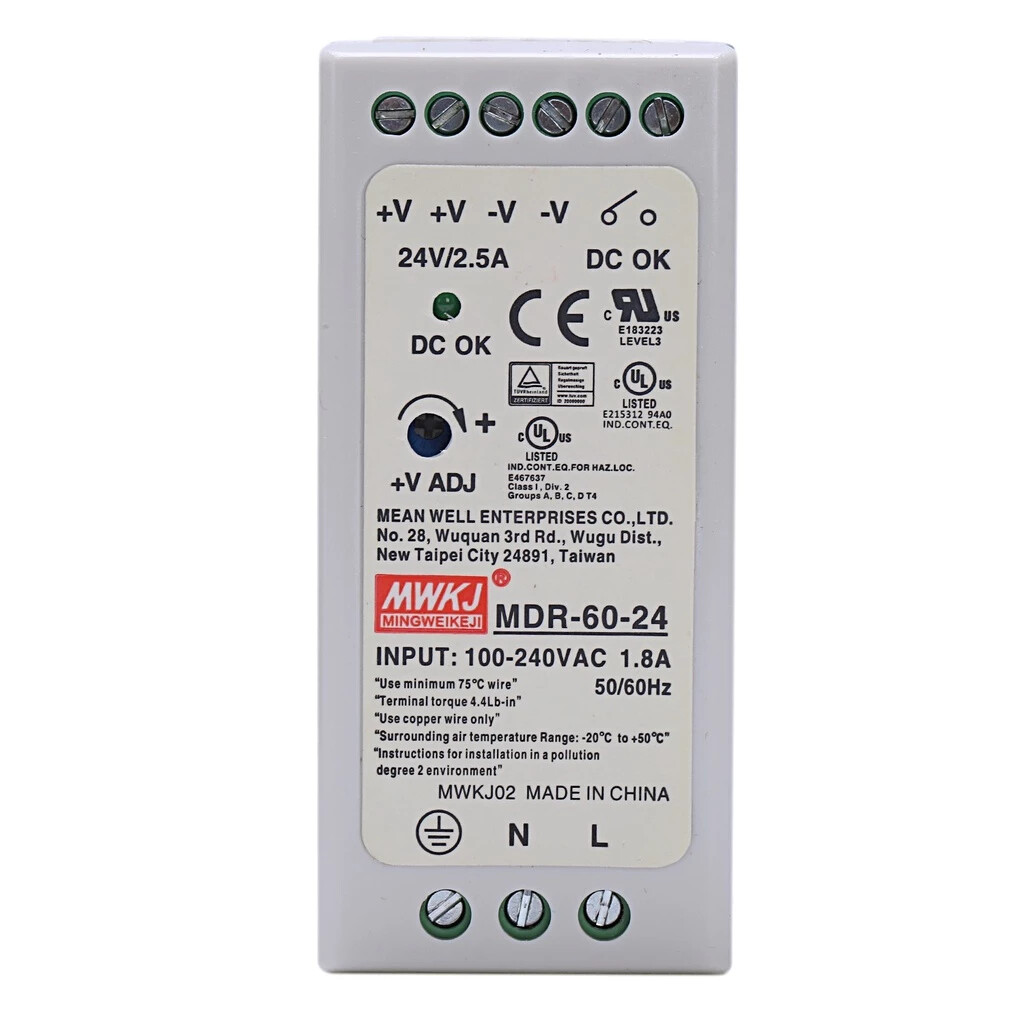

Top view❗

Datasheet❗
The official documentation of the part manufacture is linked here:

MDR-60 Series

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

[vanepp]

I got a bit of time so you got a generic part.

meanwell-MDR-60.fzpz (4.6 KB)

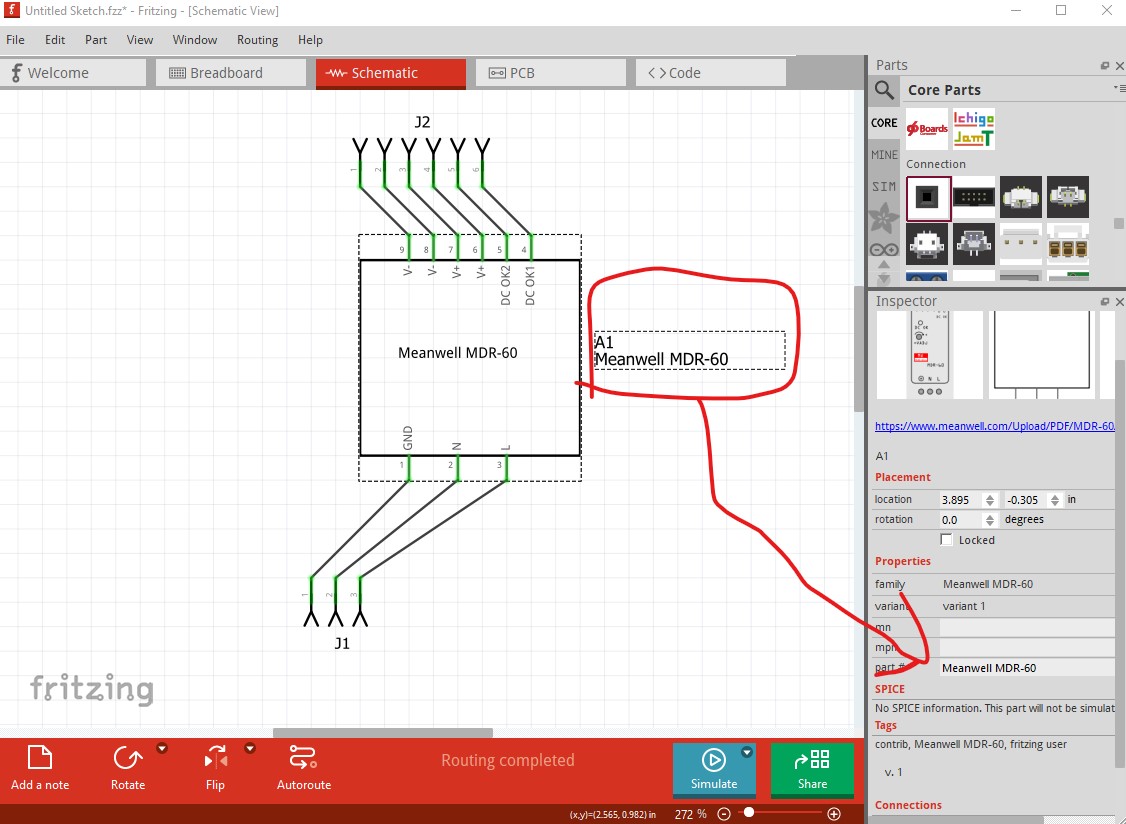

Pcb view has been suppressed as not useful, and a generic part means it doesn’t have a voltage set so one part does all models. By default it’s part number is Meanwell MDR-60 like this

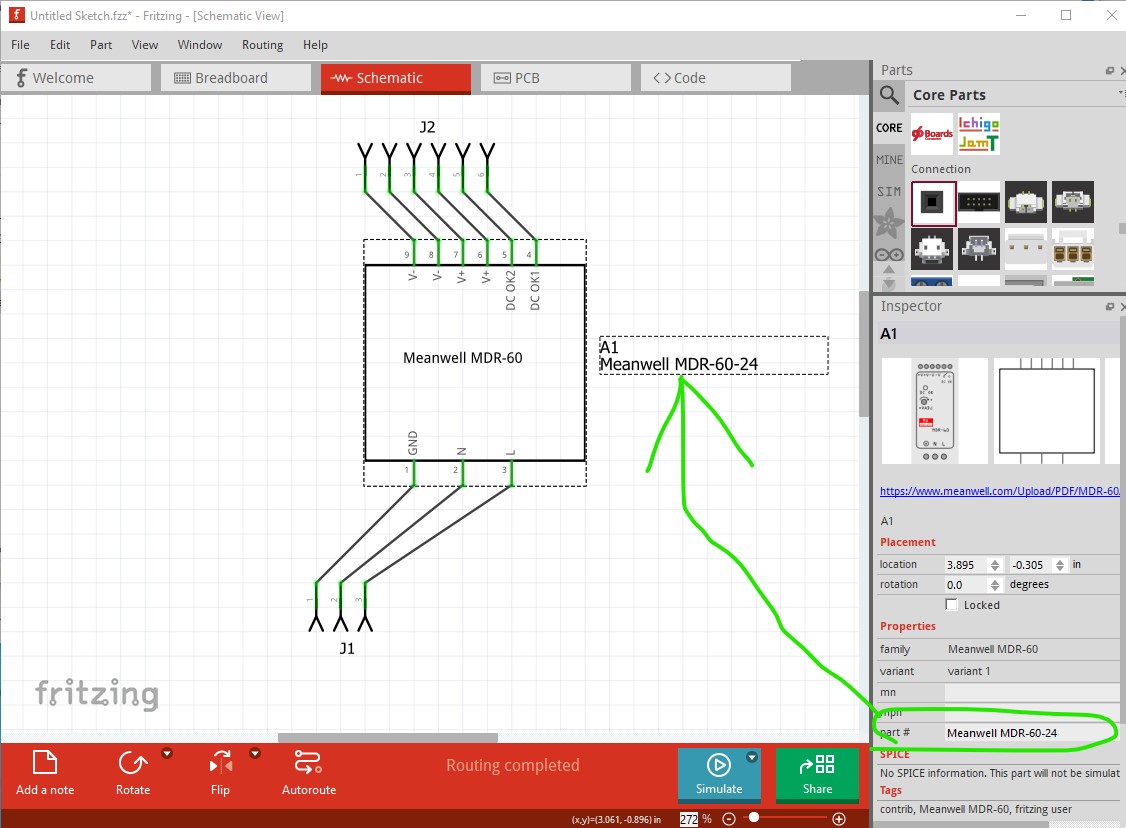

By using Inspector (the lower right window) you can set a voltage to indicate what it’s voltage is by adding the voltage to the part number (Fritzing only cares about connections not voltage usually!) like this

without having to make a new part for each model. You can modify the svg files for the part to make new parts for each voltage (you would need to change the breadboard and schematic svgs, them make a new part to do that) if you wish.

Peter

[spiCED]

Thank you Peter!! This file will help me a lot!! Also, Happy New Year!!
