Part Request: ESP32-S3-Relay-6CH

parts help
1

Name of the part​:red_exclamation_mark:
ESP32-S3-Relay-6CH
Industrial 6-Channel ESP32-S3 WiFi Relay Module

**
Your previous work, similar parts**
I searched for similar ESP32 relay board parts in Fritzing but could not find this exact model.

This module is an industrial ESP32-S3 based 6-channel relay controller with RS485 interface and Pico HAT compatible expansion header.

Product reference:
Arduitronics Product Page

Official manufacturer page:
Waveshare ESP32-S3-Relay-6CH

https://www.arduitronics.com/product/6438/industrial-6-channel-esp32-s3-wifi-relay-module-supports-wifi-bluetooth-rs485-control-onboard-rs485-

1 Like
2

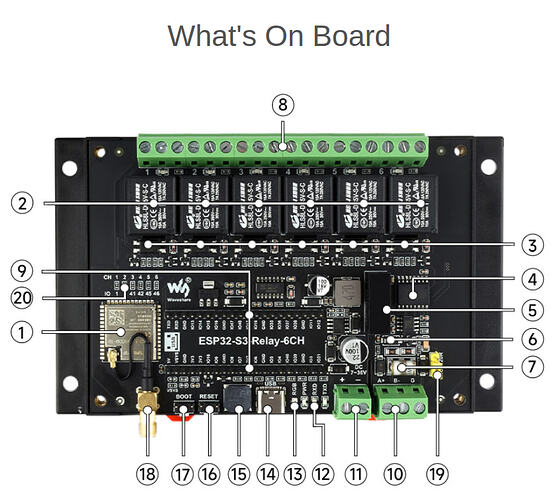

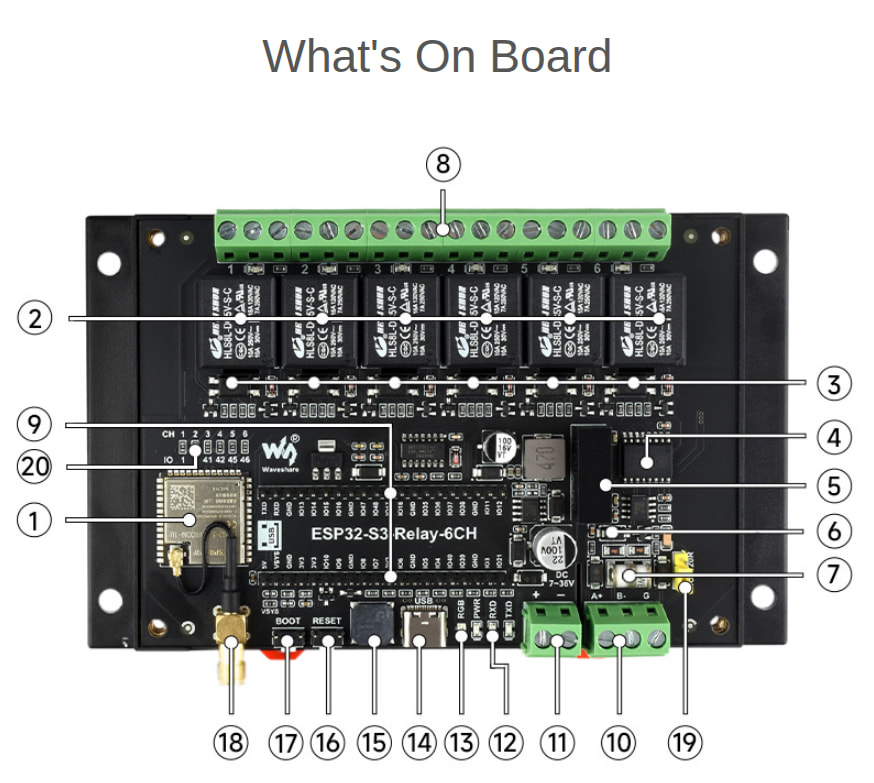

This is a picture, taken from the Waveshare link:

image874×783 137 KB

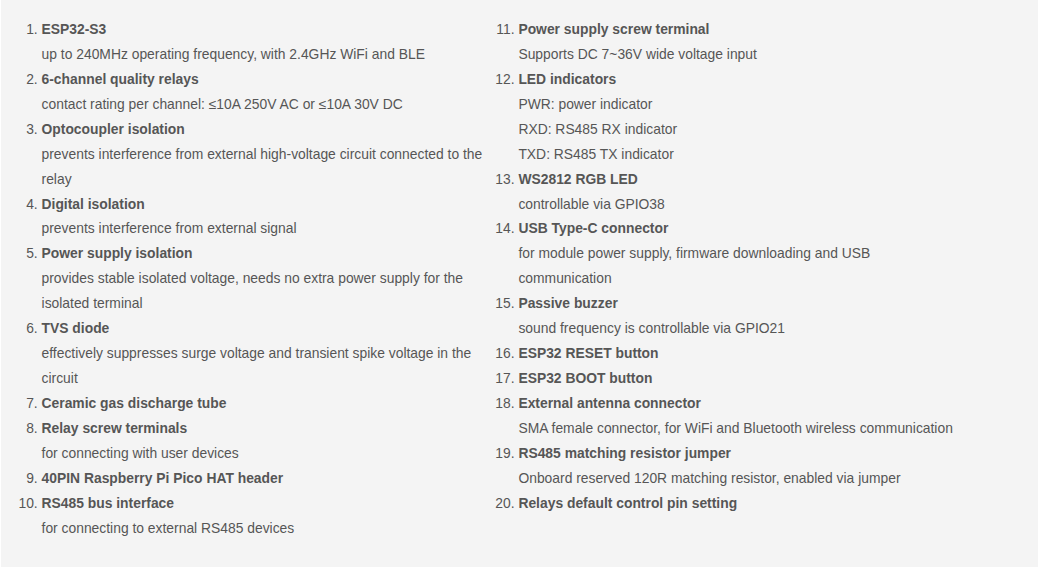

image1038×567 70.7 KB

This might be helpful to identify the available connections.

1 Like
