Hi I’m new to this enviroment. I need help with creating CNC controller MyPlasm CNC by proma.

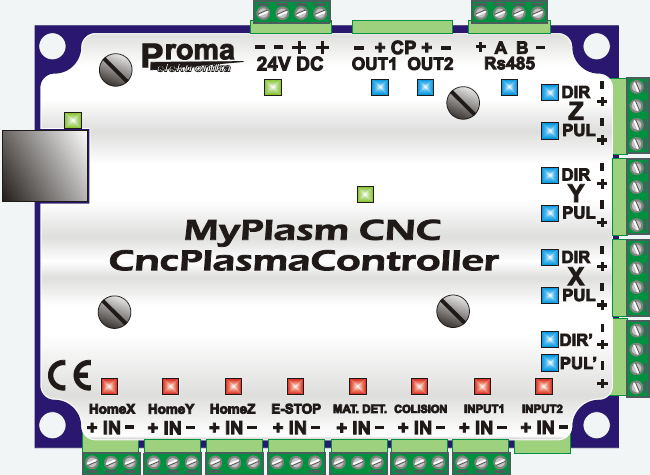

Here is specitfication:
Power supply for the controller: 24V DC ( 22 - 26V DC)
Maximum current consumption : 0.6A ( 600mA )
Number of axes : 4
Motor driver output signals : TTL 5V STEP (PUL) / DIR 40mA
Motor frequency: 0.02 - 250kHz
Limit sensor inputs ( 8 x 24V ) : NPN NO, NPN NC, Contacts,
active state : LOW
Dimensions of CNC Controller : 120 x 100 x 15 [mm].
Measuring voltage ARC / THC max : 300V DC ( test 1000V DC )
HF / HV protection : 10kV AC ( 15kV AC test )
Optical isolation : 2 x 3kV
PC communication : USB
Plasma Interface Communication : RS485
Optional outputs ( 2 ) : OC 0.5A 5-30V
