Part Request: Back Side of 3.5" TFT SPI 480x320 V1.0 Display

parts help
1

Hello Everyone!
The part that I request already exists, but it would be great to have it with a back side (PCB) view, especially helpful because you can see the pin labels and the SD card slot.

Name of the part
TFT SPI 480x320 V1.0 Display

Previous work, similar parts

Top view

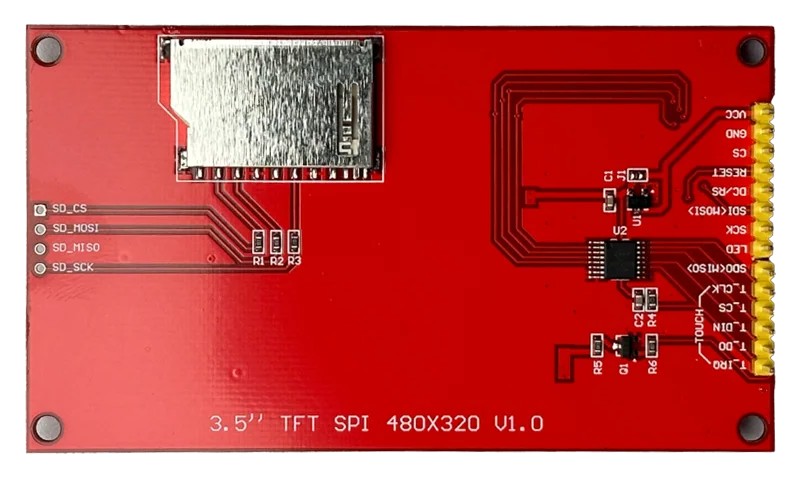

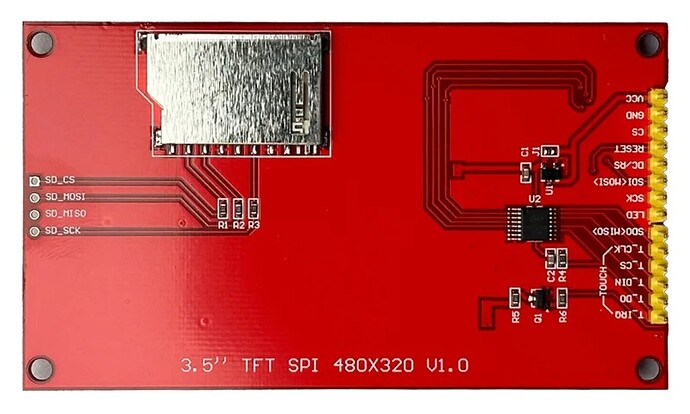

Back Side of the Display
Back Side of the Display800×480 70.9 KB

Datasheet

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

2

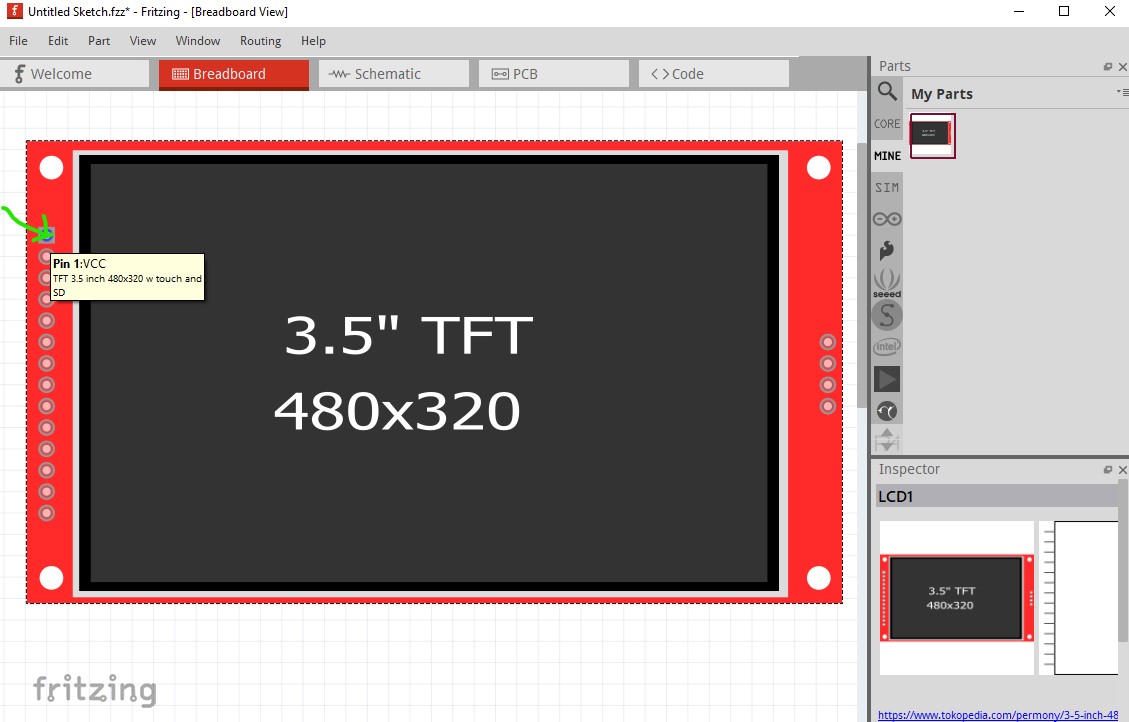

Breadboard view is typically top view. While a reversed part could be made it would be non standard. Hovering over a pin on the part should bring up the name of the pin like this:

capture
capture1129×722 100 KB

Here I moved the mouse pointer over pin 1 which displays its pin name and pin number. The actual board (which breadboard is supposed to represent) has no labels on the top of the board.

Peter

3

I know that I can reach the pin names like that, I just thought there would be an option to „flip“ the part around because for my project I attach an ESP32 on the back side and therefore the wiring diagram would look amazing. But if this is not a standard thing to do, I can totally live without the back side.

4

Breadboard has the limitation that it is always top view and thus you can’t normally flip it.

Peter
