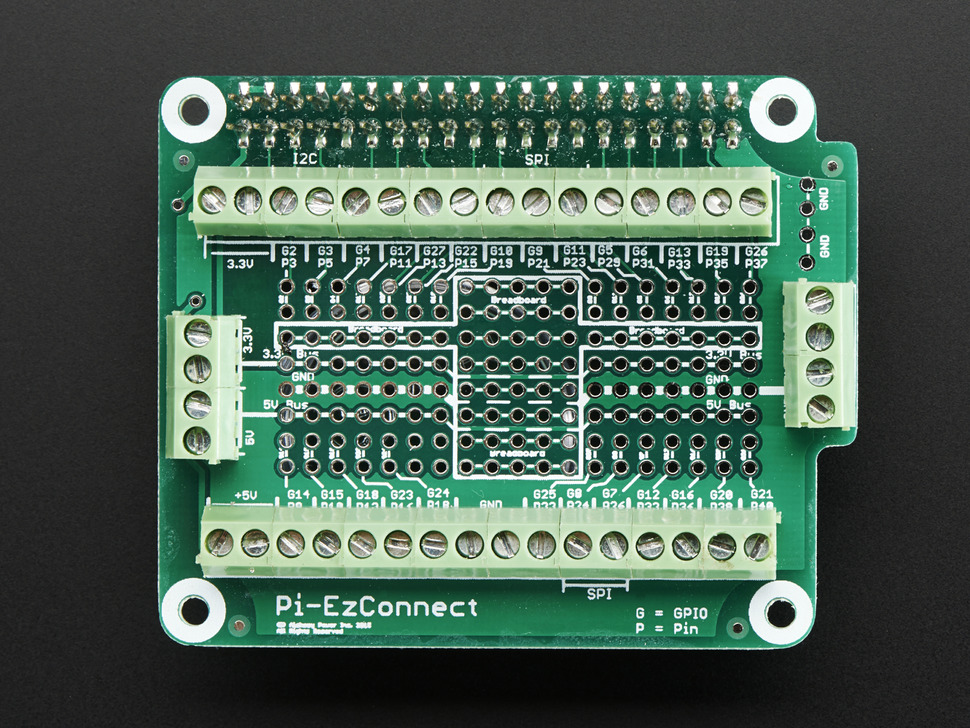

Name of the part Adafruit Pi-EzConnect Terminal Block Breakout HAT (Adafruit product ID 2711, manufactured by Alchemy Power Inc.)
Your previous work, similar parts I couldn’t find an existing Fritzing part for this board. Neither in the core parts library, nor via the forum search, nor via a web search for “Pi-EzConnect fritzing part”. The closest related items in Fritzing are generic Raspberry Pi HAT templates and the Adafruit Perma-Proto HAT, but none of them match this board’s screw-terminal layout. I haven’t started work on the part myself.
Top view
Datasheet
Datasheet EzConnect
Key specs from the datasheet:
- Board dimensions: 69 mm × 56 mm, 1.5 mm thick (overall height incl. terminal blocks ~23.3 mm)
- Raspberry Pi HAT format with a 2×20 (40-pin) GPIO header — compatible with Pi A+, B+, Pi 2 / 3 / 4 / 5
- Screw terminal block for every GPIO pin, plus 3.3 V / 5 V / GND buses
- Resettable 8 V / 1.6 A PTC fuse on the 3.3 V and 5 V rails
- Small solder/prototyping area
- GPIO number and header pin number silkscreened next to each terminal
Footprint N/A
Type
I did not read this
