Part MAX3485CPA+

parts help
1

Hi, could you please help me to find the component MAX3485CPA+

Thanks

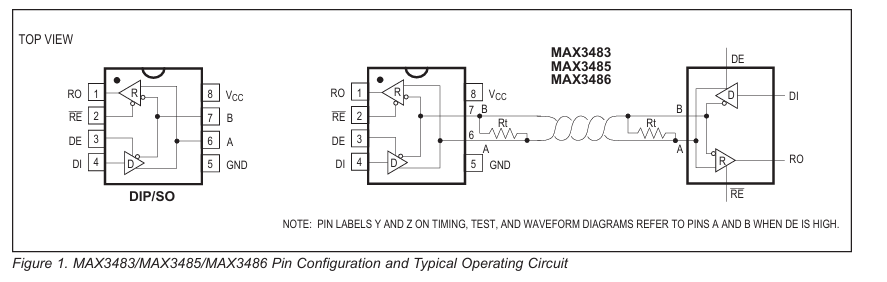

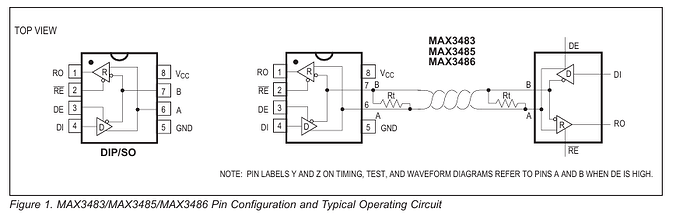

Max3485
Max3485887×282 28.5 KB

Name of the part MAX3485CPA+

Datasheet​:red_exclamation_mark:
The official documentation of the part manufacture is linked here: MAX3483/MAX3485/MAX3486/MAX3488/MAX3490/MAX3491 - 3.3V-Powered, 10Mbps and Slew-Rate-Limited True RS-485/RS-422 Transceivers

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

2

Hi,

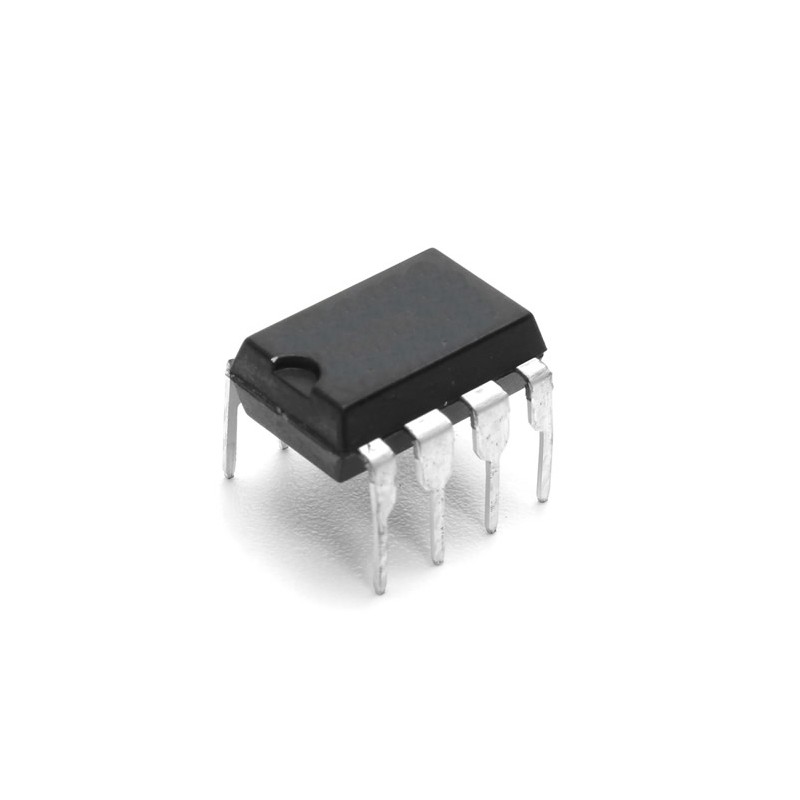

isn’t this just a simple DIP8 package?

In that case, you could simply adapt an existing component.

Regards, Harald!

3

Ciao Harald…. Unfortunately I’m not familiar with these mods. Could you please help me ( if is not to much time consuming for you)?

Very appreciate

Thanks

4

I made a draft. You’ll need to import it, but I have to check it again tomorrow.

MAX3483.fzpz (6.2 KB)
.

So once you’ve imported it, please don’t save it yet.

If it looks good, I’ll do the final check tomorrow.

Regards, Harald!

5

Good morning,

I’ve checked the part. Is there anything else that needs to be adjusted or changed?

Here is the finished part:

MAX3485CPA.fzpz (5.8 KB)

Regards, Harald!

If you had already imported the previous part, you’ll need to delete it — otherwise you’ll get an error because the part still has the same ID.

6

Thanks Harals for your great support. Very appreciate. Have a nice day.

Thanks again
