Nrf24l01 + pa/lna

[vanepp]

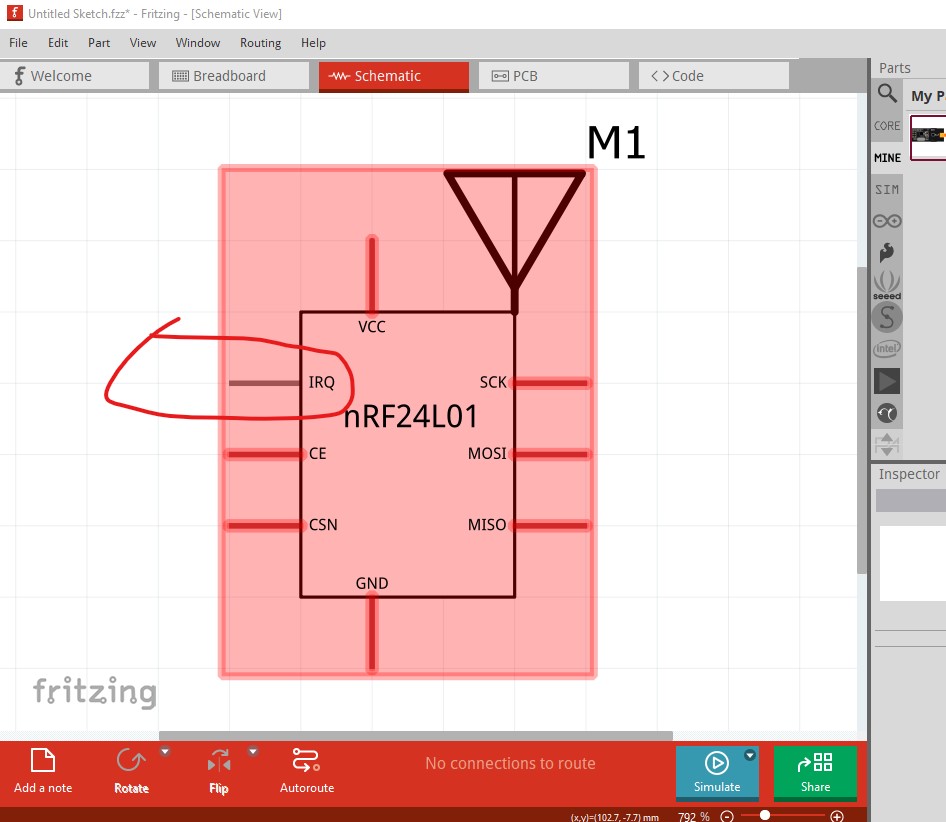

You are missing a connector definition in schematic and layerIds (which will cause the part to not export as an image.)

FritzingCheckPartw.py reports the following errors:

Error 69: File
‘svg.breadboard.NRF24L01 PA LNA_01b006a924f7bb05e858c63cbb383901_2_breadboard.svg.bak’
At line 19

Found a drawing element before a layerId (or no layerId)

Error 18: File
‘part.NRF24L01 PA LNA_c82162868d16b3dfad6bcd684673c93b_9.fzp.bak’

Connector connector0terminal is in the fzp file but not the svg file. (typo?)

svg svg.schematic.NRF24L01 PA LNA_01b006a924f7bb05e858c63cbb383901_2_schematic.svg.bak

Error 18: File
‘part.NRF24L01 PA LNA_c82162868d16b3dfad6bcd684673c93b_9.fzp.bak’

Connector connector0pin is in the fzp file but not the svg file. (typo?)

svg svg.schematic.NRF24L01 PA LNA_01b006a924f7bb05e858c63cbb383901_2_schematic.svg.bak

Error 69: File
‘svg.pcb.NRF24L01 PA LNA_01b006a924f7bb05e858c63cbb383901_2_pcb.svg.bak’
At line 13

Found a drawing element before a layerId (or no layerId)

If you haven’t seen it this tutorial on parts making may be of help

Part creation howto part 1 breadboard and pcb

Someone in this forum post requested help to fix up a part. So while doing that I decided to record what I needed to do in order to fix the part to provide a tutorial to create new / fix broken parts. If you start from the Tarjeta S4A EDU.fzpz file posted in the above thread, you should be able to recreate my improved part posted in the same thread. I started by loading the original part in to Fritzing, that indicates breadboard is (at first look anyway) pretty good, but schematic and pcb are…

Peter
