NOYITO Opto Isolated MOSFET (PWM) Driver - LR7843

parts help
1

Does anyone have this part they can share?
Amazon Link
eBay Link

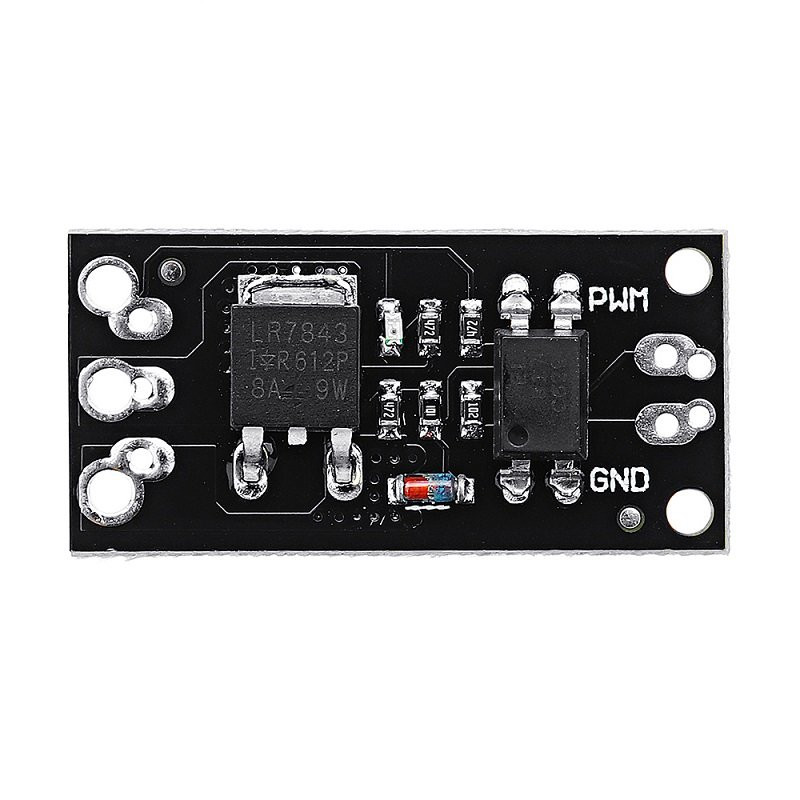

lr7843-mosfet-control-module-replacement-relay-3-800x800-2840255227
lr7843-mosfet-control-module-replacement-relay-3-800x800-2840255227800×800 87.8 KB

LR7843-MOSFET-Control-Module-Connections-2-2902687960

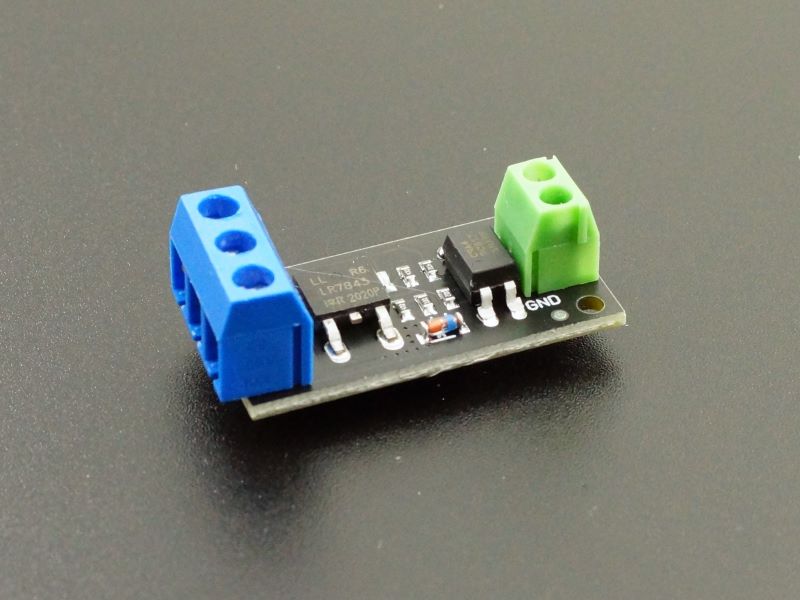

LR7843-MOSFET-Control-Module-with-Connectors
LR7843-MOSFET-Control-Module-with-Connectors800×600 51.2 KB

Thanks!

2

This part should do what you want. Of note is the mounting holes in pcb are not drilled by default. If you want mounting holes you need to drag the core parts/pcb/hole in to the sketch, place it over the hole in silkscreen and set the size appropriately. As well only the pwm and ground connection on the 0.1in header pads appear in pcb.

Noyito-LR7843-mosfet-pwm-driver.fzpz (12.2 KB)

Peter

3

Thanks @vanepp ! Always so helpful.
