No PCB in PZEM-004T

parts help
1

I’ve already checked other threads in the forum about the PZEM-004T schematic/design, and I found this one from Peter where you can download the model. When I import it, it shows up fine in the breadboard view, but it’s impossible to get it working in PCB. Any idea why? Do you know anywhere I could download the exact model for PZEM-004T 100A AC 80–260V? Thanks!

2

Pcb view is suppressed because it isn’t useful. The part connects with wires via the on board connectors you can not mount it on a pcb as there are no connections to mount it to. A header of the appropriate size will provide holes in the pcb that you can solder wires to if you wish.

Peter

3

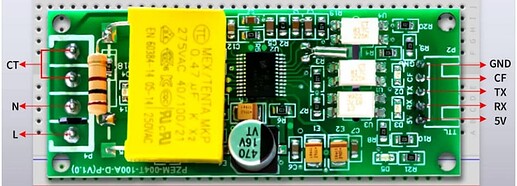

Thanks Peter, but This board has pins that I want to solder directly onto a PCB.

imagen
imagen950×344 52.7 KB

4

Then supply a web site that describes the board you want with physical size and connector information. This is not the same as the original board and would require a new part. Make the request in the parts help category and fill in the template that will appear when you start a request.

Peter
