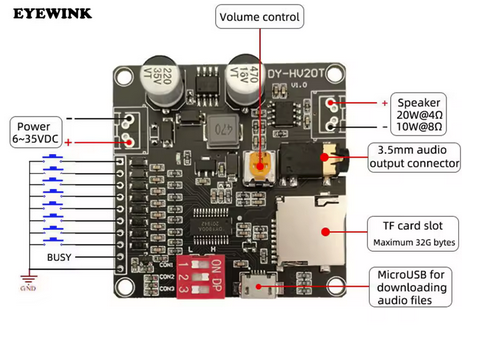

DY-HV20T Media Player

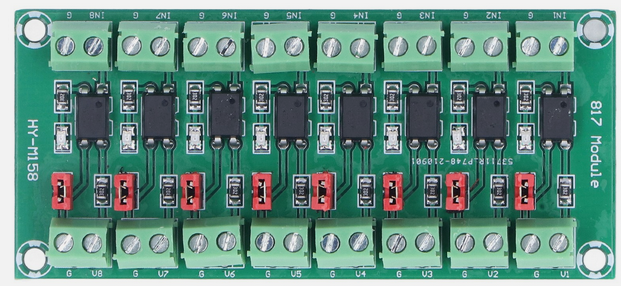

817- 8ch Optoisolator

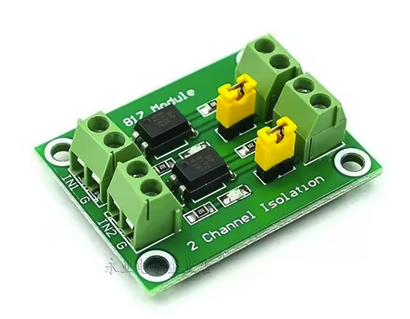

817- 2ch Optoisolator

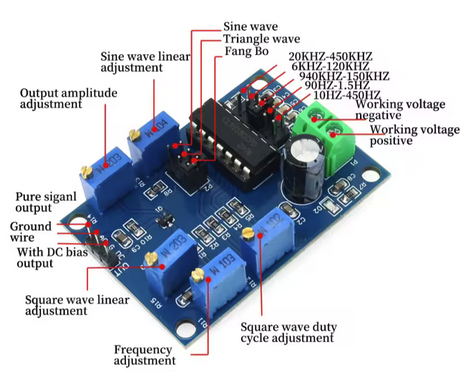

ICL8038 Signal Generator

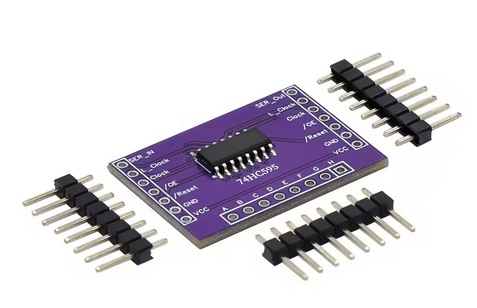

74HC595 Shift register
No vector graphics that I can find.
No official documentation of the part manufacture.
No official manufacturers datasheet.
[* ] Breakout board, sub assembly, plug in module.
Any help is greatly appreciated! Thanks
Insufficient information to do much with. In general a google search of the form “fritzing part 8 channel optocoupler module” will find available parts (it finds the 2 channel version but not the 8.) If that fails we need a web site for the board that you want with the physical dimensions of the board and the position and names of all the connections to make a part.
Peter
