Neo 6M GPS Antenna fritzing part

Dear Sir

can i get the GPS antenna fritzing part shown in the figure below?

which is:

Best Regards

You could if someone made a custom part for it, but it isn’t particularly useful because it doesn’t have any connections in Fritzing (the SMA doesn’t have any connections in the part.) That said assuming you are using this part

it is easy enough to add the antenna as part of breadboard (the only place it is useful.)

Peter

1 Like

This part should do what you want.

u-blox NEO-6M GPS Breakout_fixed-with-ant.fzpz (5.2 KB)

the addition of the antenna in breadboard is the only change.

Peter

@vanepp sir I’m looking for the attached component can you please help me with this one.
datasheet and all details are attached. Actually I need this 3 components on urgent basis for major project synopsis.
Thank you.

  1. Neo 6M GPS without antenna NEO-6MV2 GPS Module Pinout, Features & Datasheet
  2. APDS 9960 gesture sensor APDS-9960 Proximity, Gesture and Ambient Light Sensor: Pinout, Features & Datasheet

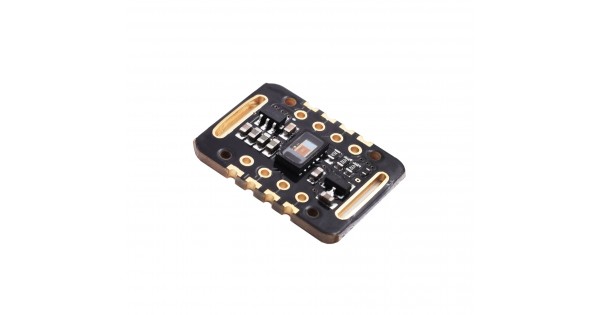

@vanepp 3. MAX30102 (not the one which is already available on forum)

These 3 parts should do what you want.

NEO-6M_GPS_Module_with_ant.fzpz (34.5 KB)

ADPS9960_breakout.fzpz (6.1 KB)

MAX30102-breakout.fzpz (8.7 KB)

On this one check that the pin labels are correct. The part is poorly documented and the labels may therefore be in the wrong order.

Peter

ohkay noted thank you!
