Hello All,
I am new to Fritzing and I am trying to design a system for my model railway.

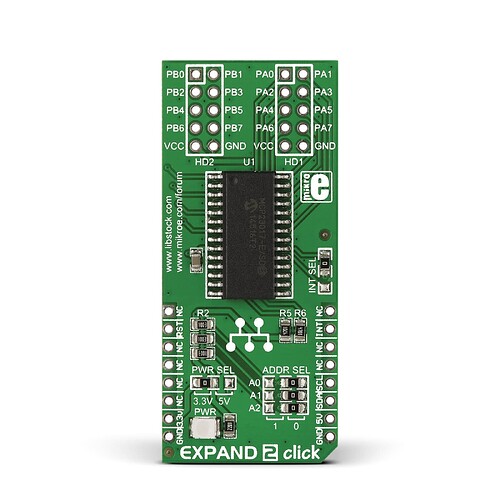

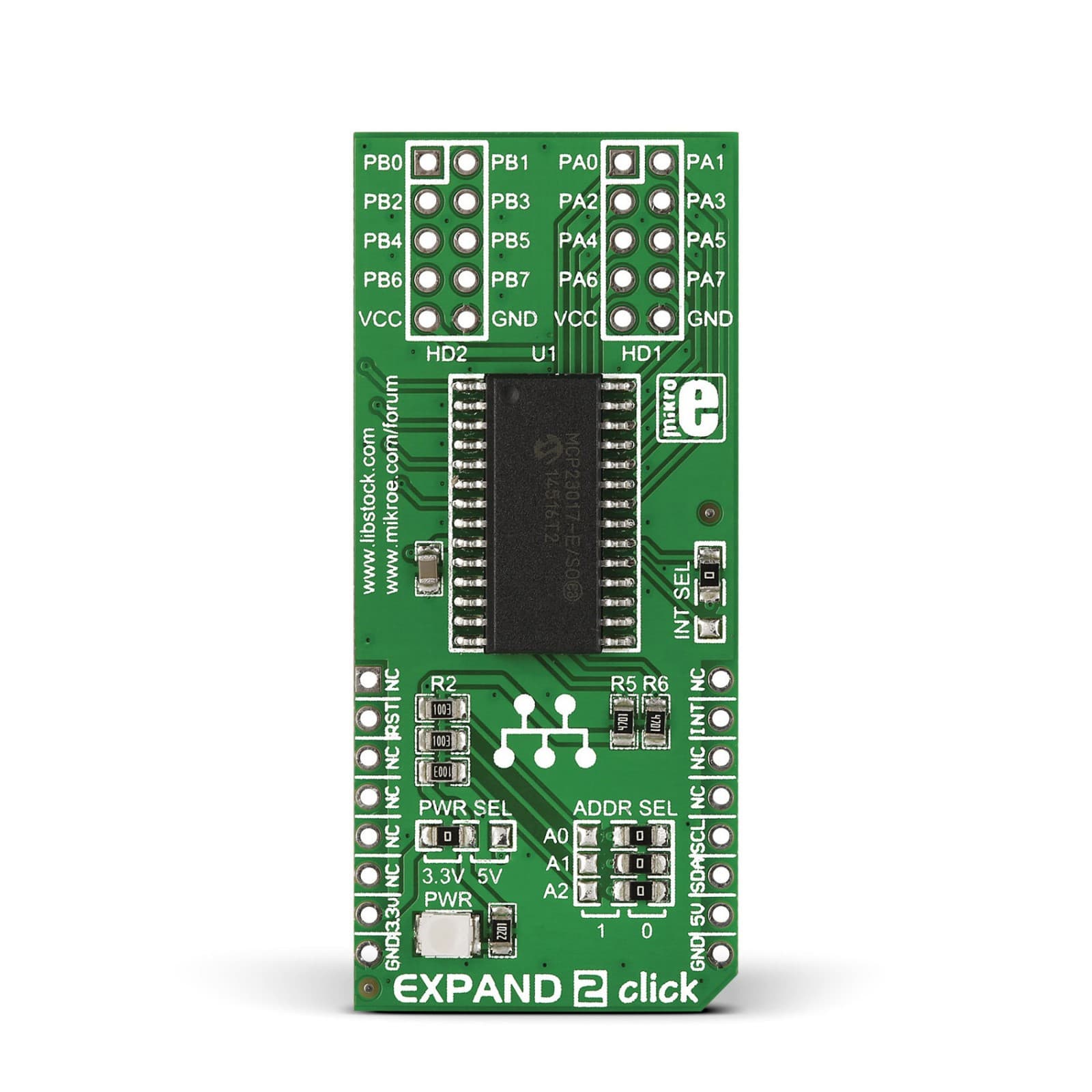

I am using above Modules as GPIO Expander with Raspberry Pi.
Has anybody designed this part???
Thanks in advance!
Doesn’t appear so, but I can do one. It will be up in a while.
edit:
This part should do what you want. Note pcb view has been suppressed as not useful.
Mikroe-expand2-click.fzpz (15.7 KB)
Peter
