Need help with AnyLeaf PH/OPR modules

parts help
1

Name of the part
AnyLeaf PH/OPR/Ion module

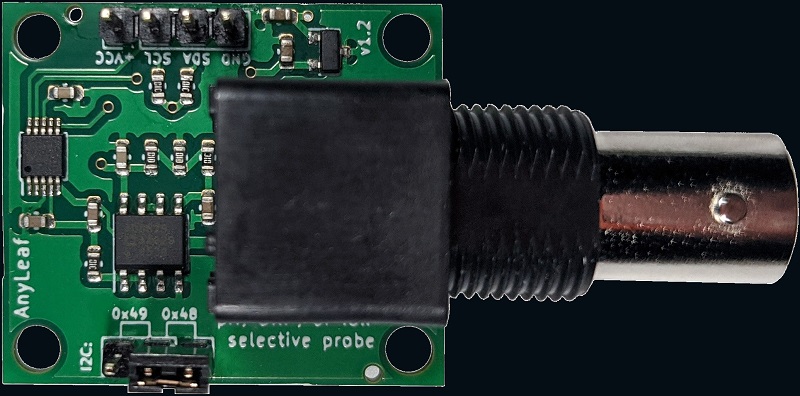

Top view
This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have.

ph_1_2_front
ph_1_2_front800×396 107 KB

Datasheet
The official documentation of the part manufacture is linked here:

PH/OPR/Ion module: https://www.anyleaf.org/static/ph-module-datasheet.pdf

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

Footprint
not sure

2

Do you have a better top view?

3

The necessary data is here (this is a repeat of an earlier request which also didn’t provide sufficient information to do anything.) I am currently making a part.

Peter

4

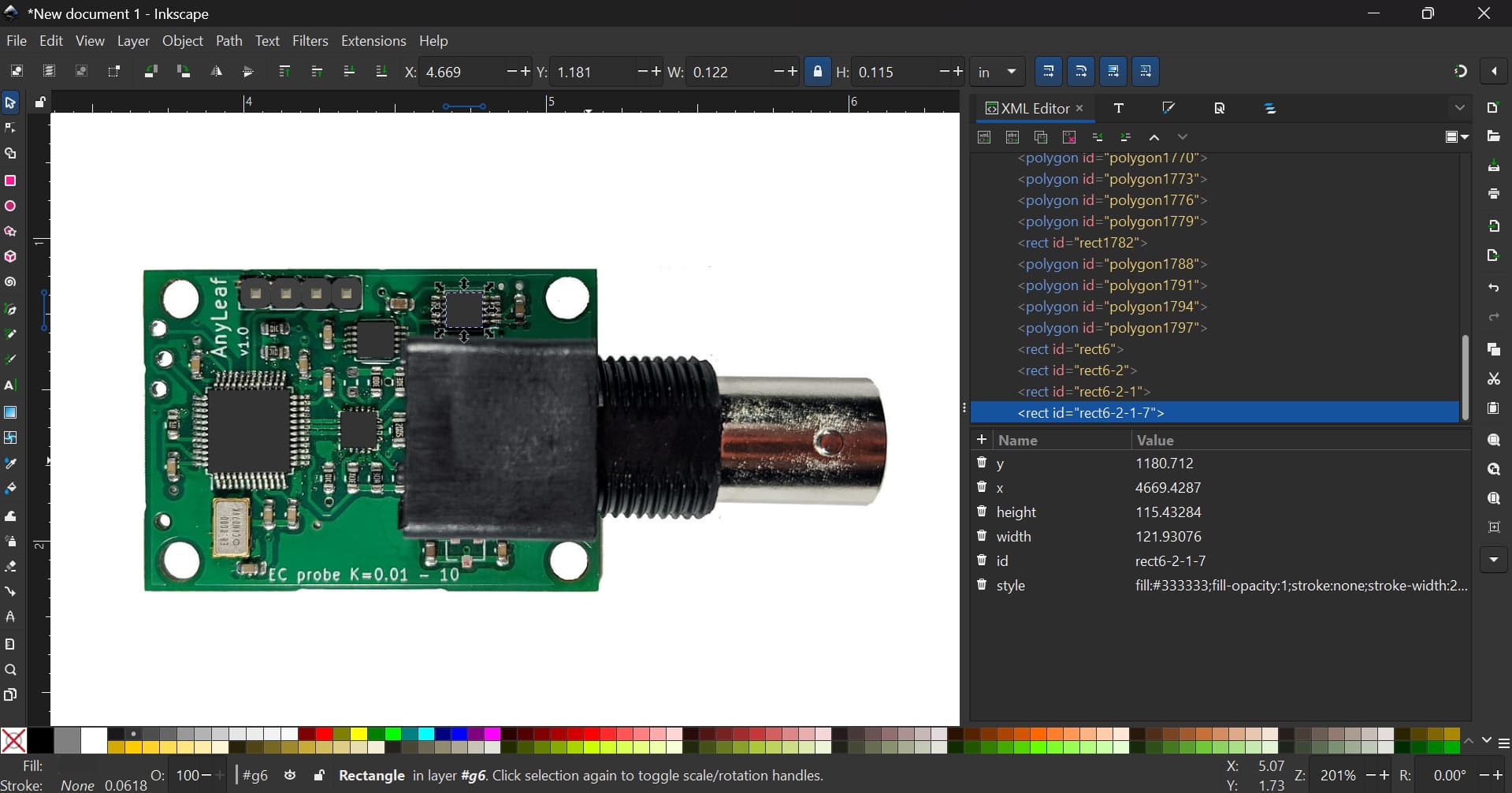

I think the two are different – in terms of dimensions and connections. I’m working on the other now

image1919×1006 140 KB

5

Hi Peter

What family are you going to use for the part?

6

Likely AnyLeaf-PHOPRIon-module, the two likely shouldn’t be the same family as they won’t swap though.

Peter

7

The picture is essentially useless. The requirement is for a web site as listed below in this thread with physical dimensions and connector information. In any case here is a part that should do what you want. Pcb view has been suppressed as not useful.

AnyLeaf-PHOPRIon-module.fzpz (9.5 KB)

Peter
