Need help for Kaiye Clamp Current Stable CT Non Contact Leakage Portable High

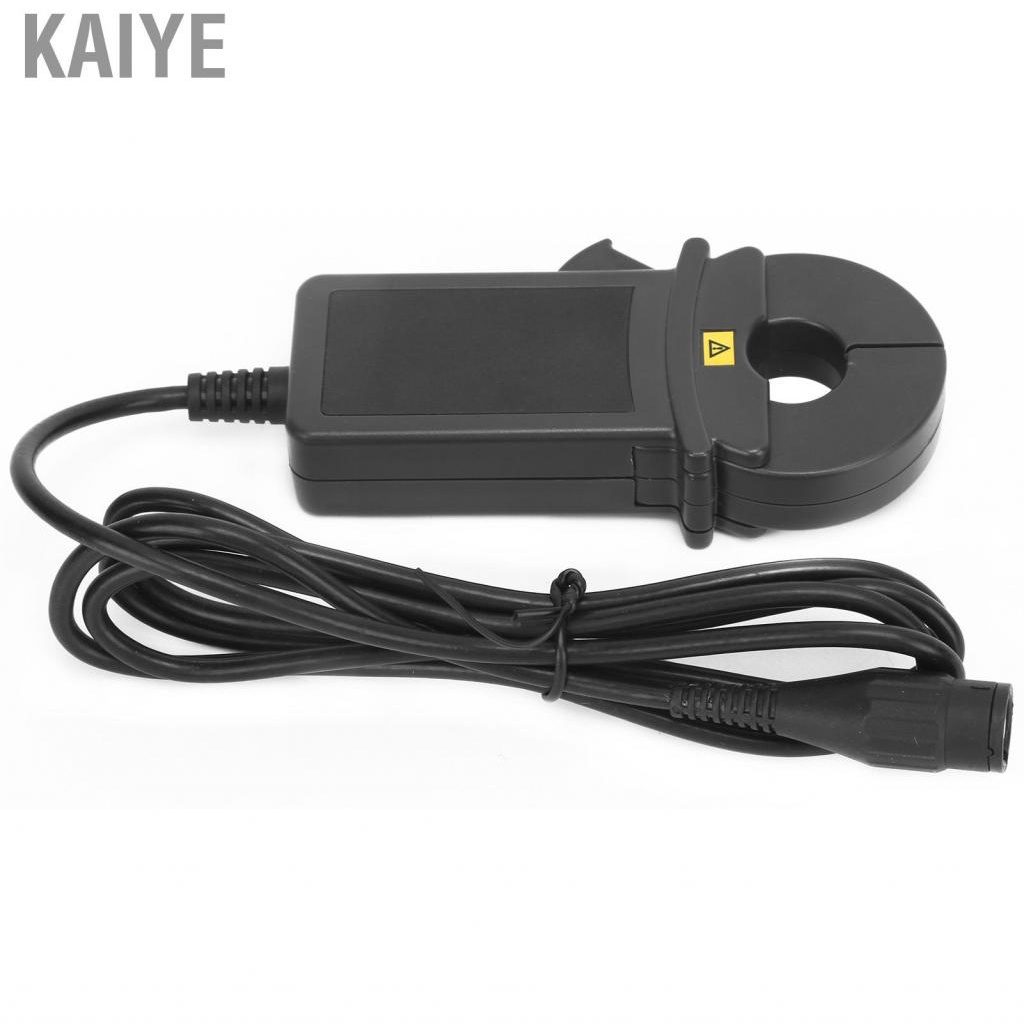

Name: Kaiye Clamp Current Stable CT Non Contact Leakage Portable High

Specification:
Item Type: Clamp Leakage Current
Model: ETCR016
Material: ABS+permalloy
Application: Widely used in electric power, communications, meteorology, railways, oil fields, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields
Range and Accuracy:
RangeResolutionAccuracy ClassPhase ErrorTransformation Ratio
0.00mA~20A AC 0.01mA0.5≤2° 800:1Other Parameter:
Function High accuracy AC leakage current, high order harmonic current, phase, electric energy, power, power factor, etc. detection
Model ETCR016
Measuring Range 0.00mA~20A AC
Resolution 0.01mA
Accuracy Class 0.5
Phase Error ≤2°
Transformation Ratio 800:1
Reference Load ≤120Ω
Jaw Size Approx. 16mm / 0.6in
Quality Approx. 138g / 4.9oz
Output Interface BNC plug/4.0mm double banana plug/3.5mm audio plug/bare wire tap (optional), cord length 1.5m
Working Frequency 45Hz~100kHz
Dielectric Strength AC 3700V/rms (between core and )
Security Level CATⅢ600V
Output Method Inductive current output
Working Temperature and Humidity -15℃~50℃; below 80%rh

Link: https://shopee.com.my/Kaiye-Clamp-Current-Stable-CT-Non-Contact-Leakage-Portable-High-i.129772835.22452443031?sp_atk=d873f12f-fc15-45bc-a347-731be2f21fa1&xptdk=d873f12f-fc15-45bc-a347-731be2f21fa1

This part should do what you want.

ETCR016.fzpz (3.5 KB)

Peter
