Need Help! - DFRobot Gravity: Analog Current Sensor 50A (AC/DC) V2

parts help
1

Name of the part
DFRobot Gravity: Analog Current Sensor 50A (AC/DC) V2

Previous work, similar parts
Cant find

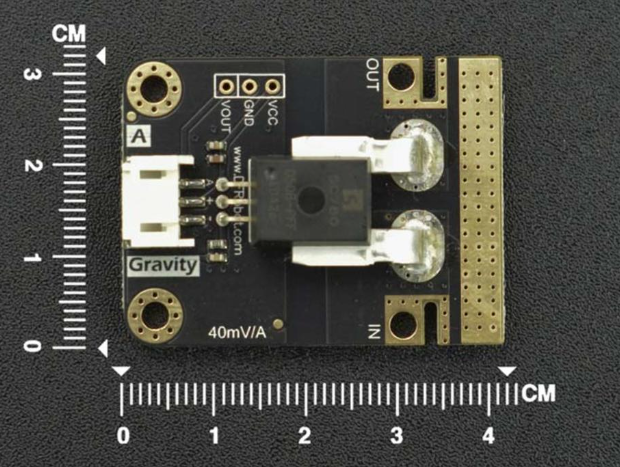

Top view
rere

Foto or vector graphic, no links here please.

Datasheet

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

2

This part should do what you want.

Note the grove connector does not appear on pcb (as you can’t connect to it from pcb) and the mounting holes are not drilled by default, if you want them you need to drag a pcb/hole in to the sketch place it over the hole in silkscreen and set the size appropriately. I also would not connect the IN and OUT wires to pcb but you can if you want to.

dfr-sen0098.fzpz (9.1 KB)

Peter

3

My hero! Thank you so much!
