please create the fzpz file for the 100A MPPT Solar Charge
Controller
Insufficient information to do anything with here. Please fill in the template you appear to have ignored with the physical dimensions and connector information for the part.
Peter
Insufficient information. No physical dimensions no connector information.Please supply the requested information.
Peter.

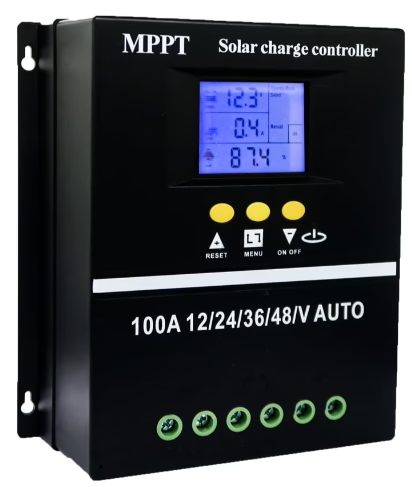

Dimensions:
The controller measures approximately 190–200 mm (length), 140–150 mm (width), and 55–65 mm (height).
Connectors:
The unit has six screw terminals:
– Two terminals labeled PV+ and PV– for solar panel input.
– Two terminals labeled BAT+ and BAT– for battery connection.
– Two terminals labeled LOAD+ and LOAD– for optional DC load output.
Please let me know if more details are required.
Thankyou
hello peter. u already do it?
No I am working on another part for someone and about to get busy with other things so it may be a while unless @RAPTOR7762 has time to do it.
Peter
Hi also working on a relay part. Schematic sub part is taking some time
This part should do what you want. Note pcb view has been suppressed as not useful.
100A-MPTT-solar-charger.fzpz (3.9 KB)
Peter
thank you so much peter
