MOSFET IRLZ34N parts help

[ozancansanli]

Hello, I am working on a project and I need IRLZ34N as MOSFET and I co

uld not find this part.

[RAPTOR7762]

Well, I’m busy now as I’m helping someone fix up a part. You can follow the part making instructions here:

@RAPTOR7762

Chapter 1.2: ICs (TO-220 package)

---

A year back, I requested for a TC74 part.

This time round, I decided to adopt the TO-220 Package Design from the Voltage Regulators Bin (not found in part versions before Fritzing 0.9.10)

So I compiled some breadboard view SVGs (for your future use) and here they are (right click on the image → Save as…)

Do remember to change the label in the IC from TO220 to IRLZ34N, then resize the label and convert it to a path.

After which, continue to follow the steps in the tutorial. Good Luck!

[vanepp]

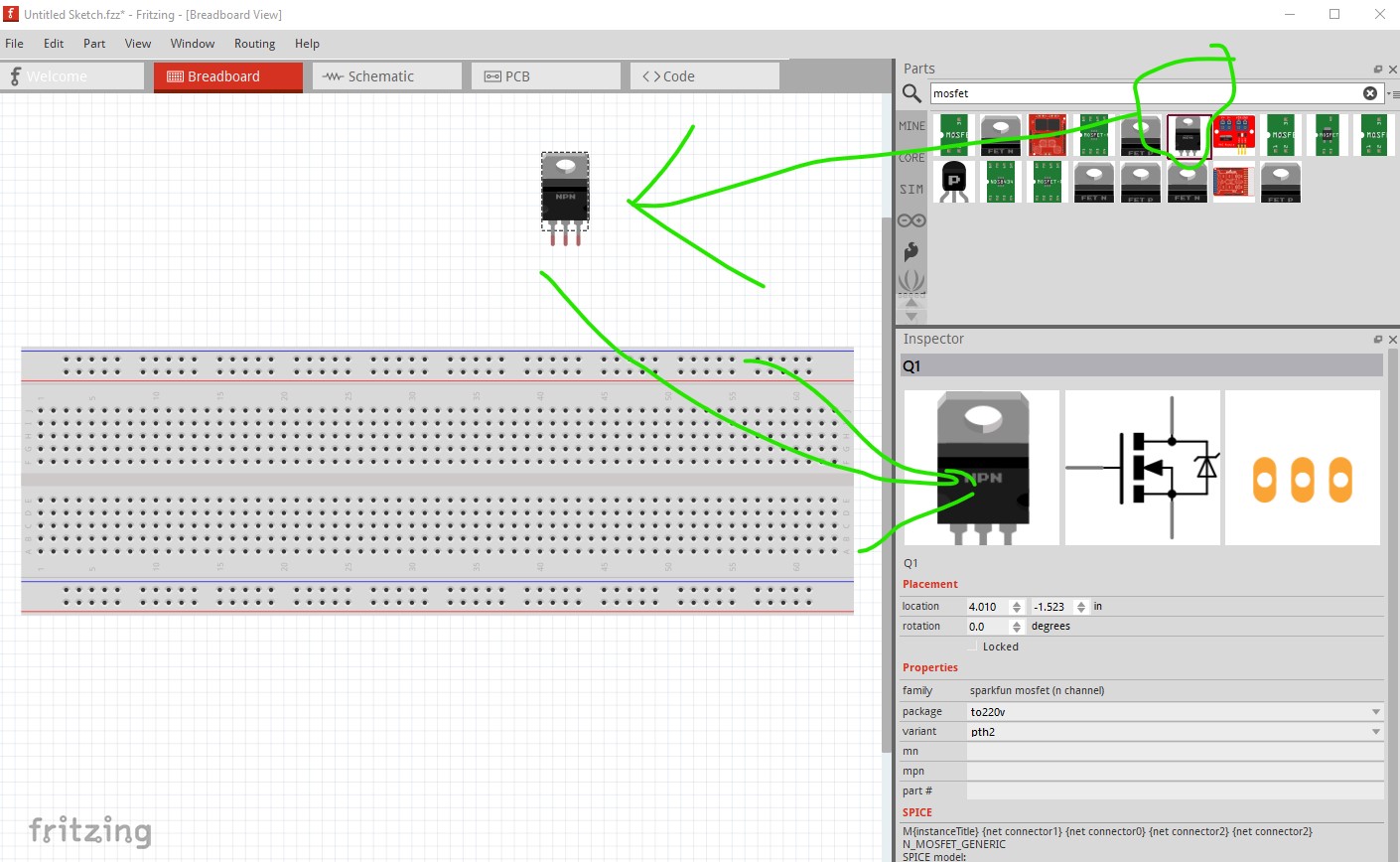

Use the generic mosfet in core parts.

Peter
