Modul NE555 NE 555 Pulse Generator wave gelombang TIMER Frekuensi Duty Cycle PWM

parts help
1

Name of the part❗

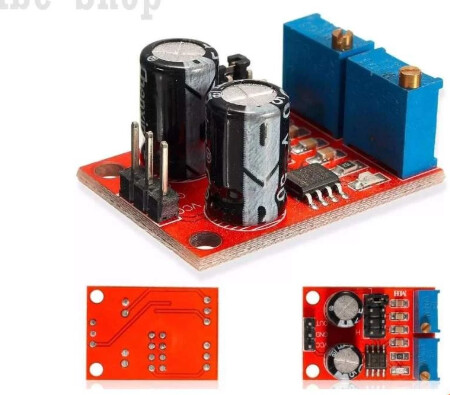

Modul NE555 Pulse Generator Wave

image450×395 48.9 KB

Datasheet❗

Footprint
E.g. SOT23-5 , TO-220.
This usually does not apply to breakout boards.

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

1 Like
2

Hi @MHZ123 See my PM I sent to you

3

okei i will try make it detail

4

@MHZ123 I have started doing this request

5

okay thank you brother

6

This part should do what you want. Note you needed to supply a web site like this:

To provide the necessary information to make a part, there isn’t sufficient information available in the site supplied. Pcb view has been suppressed as not useful.

NE555_pulse_generator_module.fzpz (8.6 KB)

Peter

7

thank u so much brother
