Microsd sniffer

parts help
1

image600×600 55.9 KB

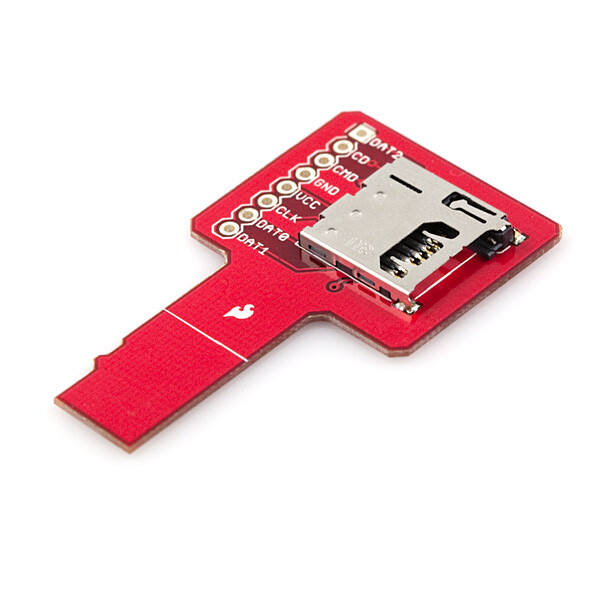

this, not exactly sure what it’s name it (I bought it off aliexpress)

2

Do a google image search and look for the sparkfun website

Then send it to us @Oscar_Merit

3

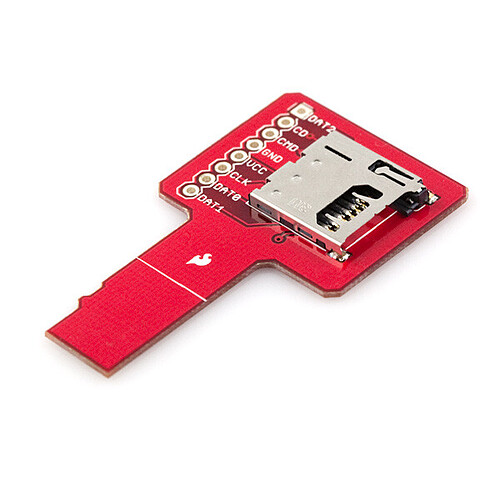

this looks exactly like it!

(except for the adafruit branding)

4

With adequate information a part will be up in a while. Since there are Eagle files available it is relatively easy (although it cases a reproducible crash in Inkscape!)

Peter

1 Like
5

This part should do what you want. Note pcb view has been suppressed as being not useful.

sparkfun-tol-09419.fzpz (5.1 KB)

Peter

1 Like
6

Thanks Peter!

it came out very good!
