Meanwell NLDD-1200~1400H

arkn666l · February 10, 2025, 1:53pm

Name of the part
Meanwell - NLDD-1400H

Top view
NLDD-1400H

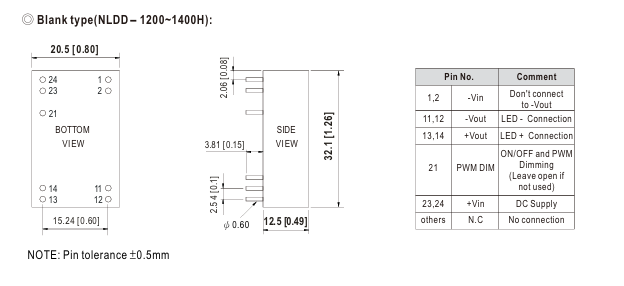

Datasheet
The official documentation of the part manufacture is linked here:

Type

LED driver

thanks in advance !

vanepp · February 10, 2025, 7:44pm

This part should do what you want.

edit:

Correct pcb footprint. You will need to delete the current part in your mine parts bin then shutdown and restart Fritzting (answering yes to save part and save bin questions) then restart Fritzing before it will let you load the new part.

meanwell-NLDD-1400H.fzpz (4.3 KB)

Peter

arkn666l · February 10, 2025, 8:02pm

hi, thanks i will check right now…
as always super fast

arkn666l · February 11, 2025, 1:19pm

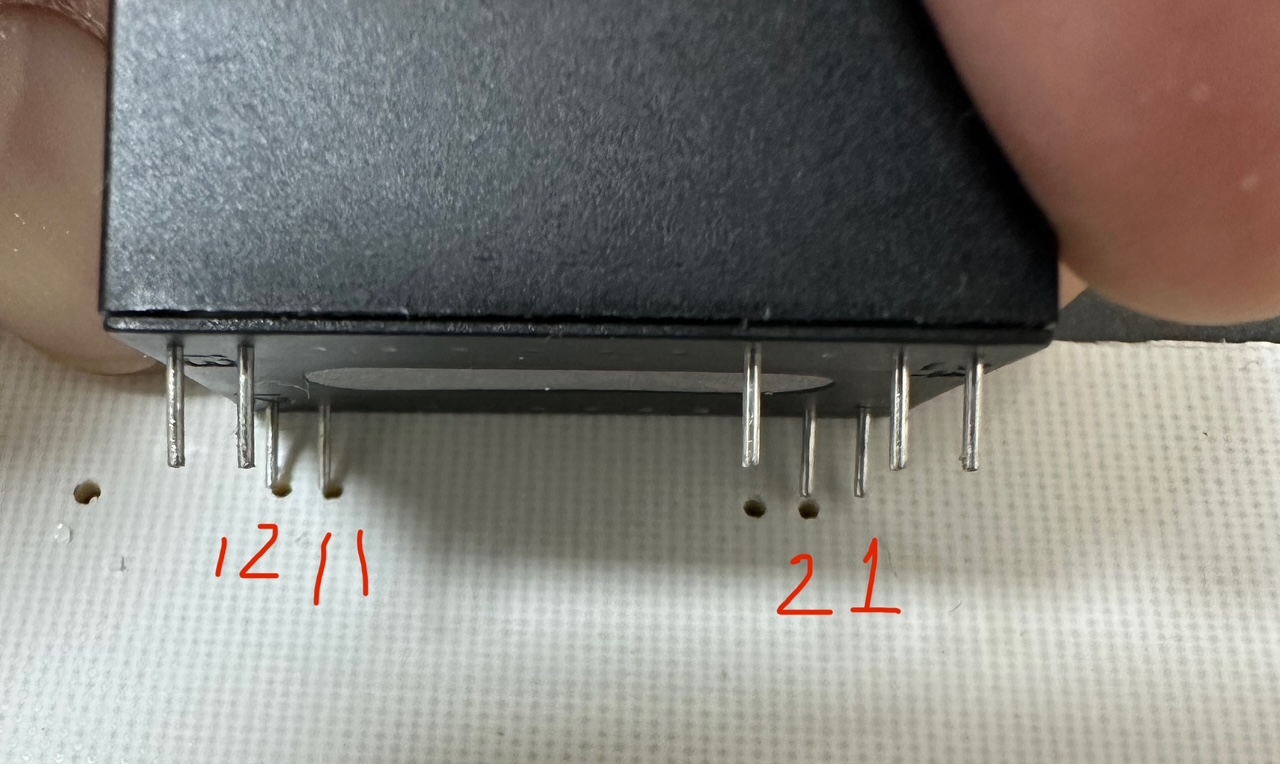

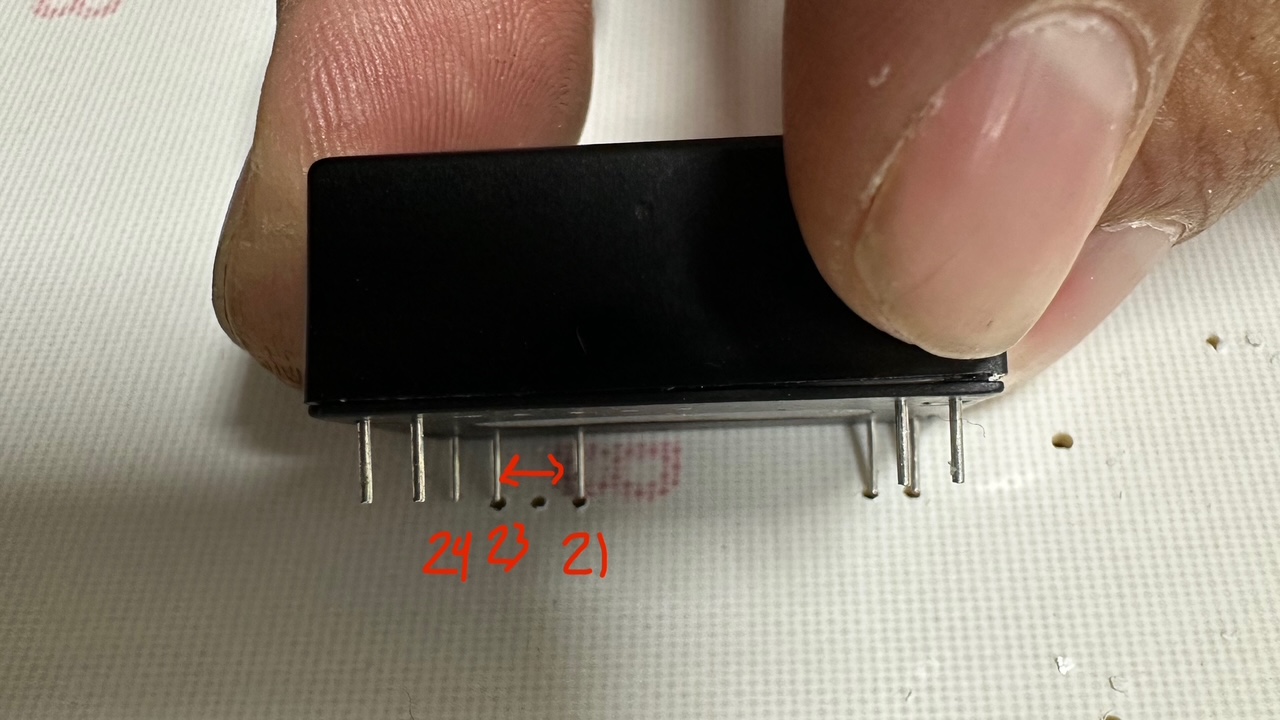

hi i think meassure its wrong, can you modify please?

arkn666l · February 11, 2025, 1:20pm

i hope you can see in the images

arkn666l · February 13, 2025, 6:16pm

hi, sorry for asking again, its possible repair ? thanks in advance

vanepp · February 13, 2025, 6:17pm

It is repaired. The part was replaced a couple of days ago. Note the edit notes on deleting the old part.

Peter

arkn666l · February 13, 2025, 7:05pm

let me check i didnt know it was upload again, thank you

vanepp · February 13, 2025, 7:07pm

The forum should have alerted you when I made the edit. I replaced the original part so there is only an accurate version in the forum not also an incorrect one.

Peter
