Makerfabs ESP32 S3 4G LTE CAT1 A7670X

parts help
1

Hi, does anyone have this part: Makerfabs ESP32 S3 4G LTE CAT1 A7670X? Can I get a copy please. Thank you!

The official documentation of the part manufacture is linked here: ESP32 S3 4G LTE CAT1 - Makerfabs Wiki

image1800×600 254 KB

2

Hi!
I got more information from Makerfabs team :
The board is 75mmX52mmX10.5mm, the hole diameter is 2.28mm and the position is (2,2) (73, 2) (73, 50) (2,50), more dimensions you can get from the PCB file.

The PCB layout file can be opened by EAGLE V6.1.0 or above. I also export a DXF for you as attached.

You can get the images from our website:

ESP32-S3 4G LTE CAT1 V1.2.zip (349.9 KB)

3

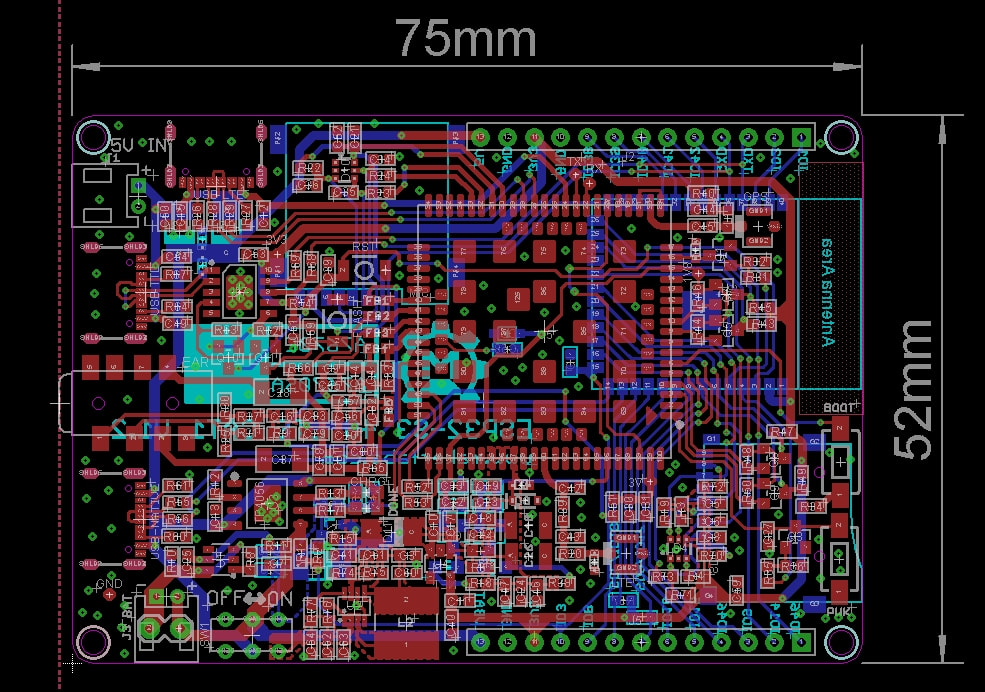

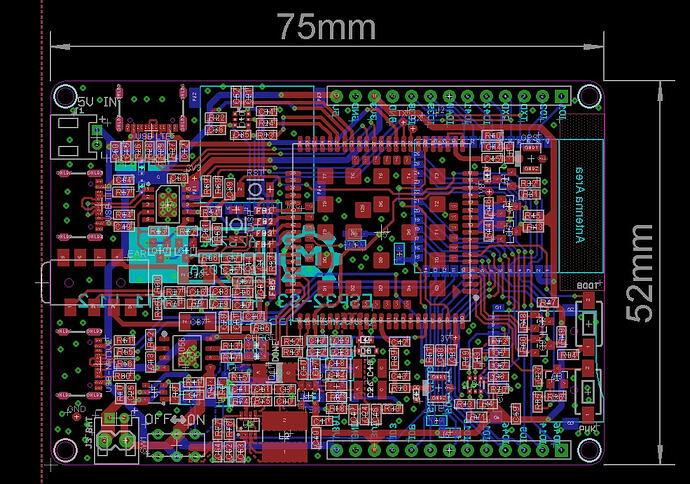

CatchESP32S3A7670E
CatchESP32S3A7670E985×692 299 KB

4

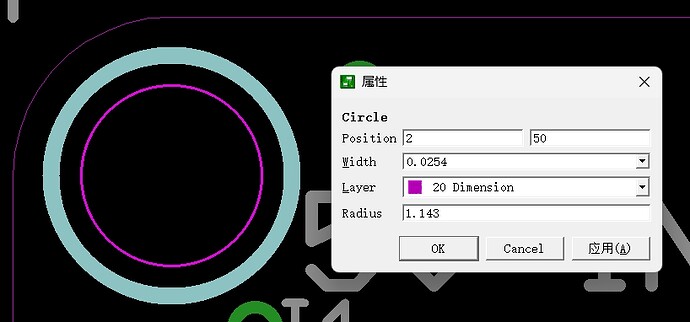

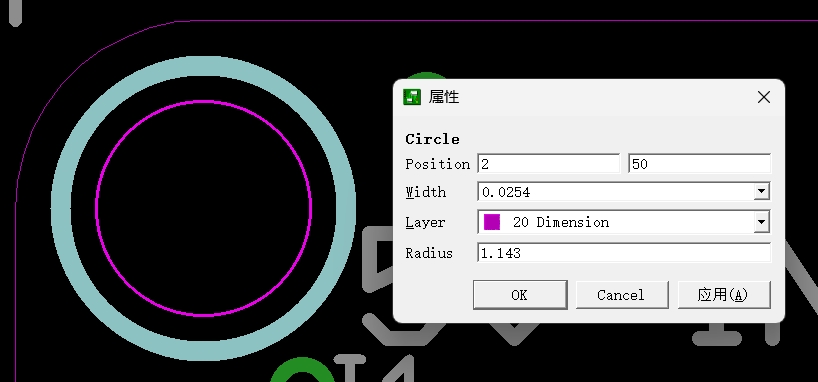

CatchESP32S3A7670Eholesize
CatchESP32S3A7670Eholesize818×382 77.1 KB

5

If someone else is interestd, here is a simplified fritzing component of this ESP32.
Kind regards
Makerfabs_ESP32_S3_4G_LTE_CAT1_A7670X_simplified.fzpz (7.8 KB)
