LTC2983❗
Top view❗
Datasheet❗
Please add a link to PDF of the manufacturers datasheet. Here, a link is fine.
https://www.analog.com/media/en/technical-documentation/data-sheets/2983fc.pdf
Footprint
Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
[X ] Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)
vanepp
2
You can make one for yourself using this tutorial and the generic IC (which is available in lgfp-48) using this tutorial”
Peter
KjellM
3
There is a generic LQFP-48 part in Fritzing, that you can try.

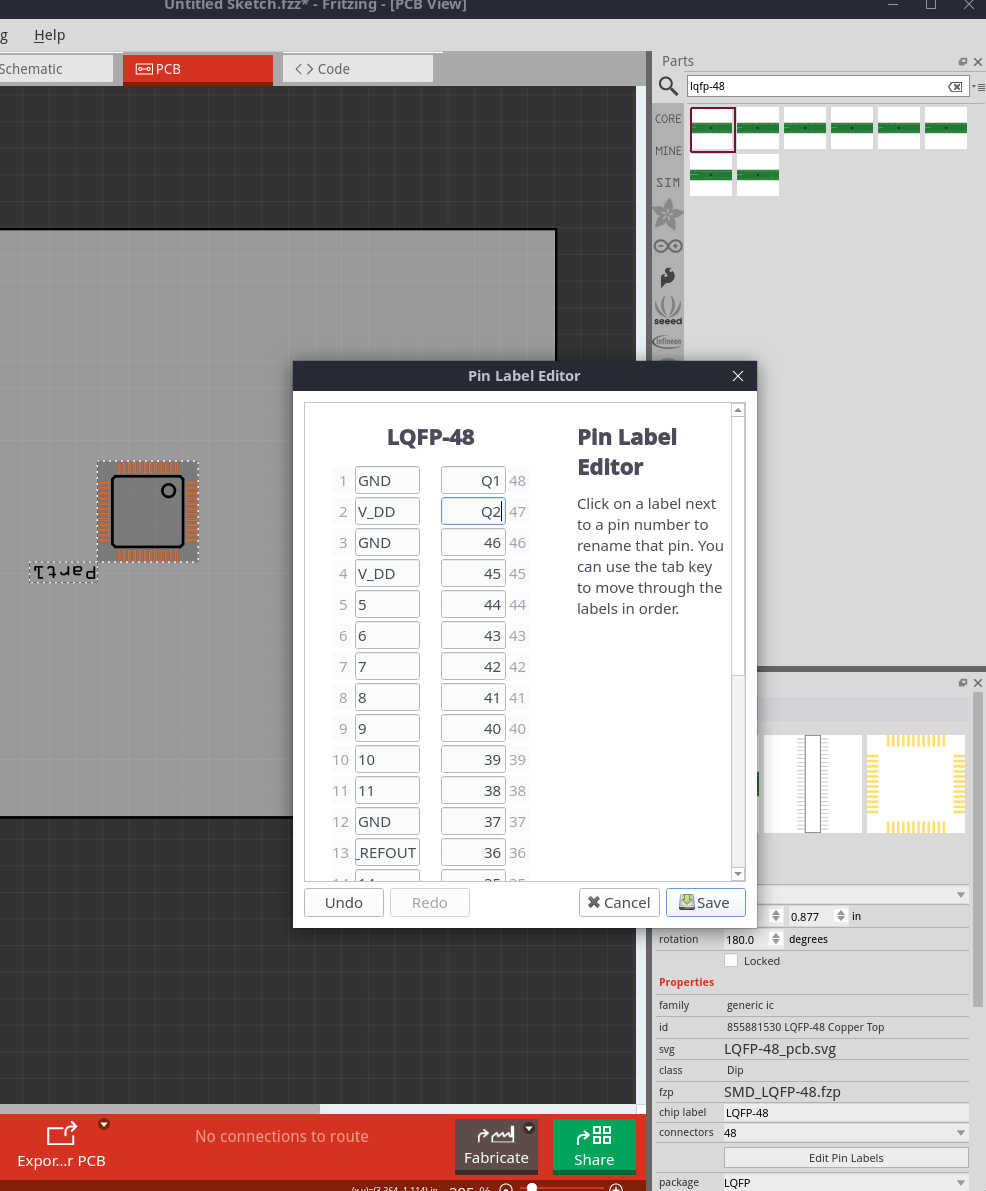

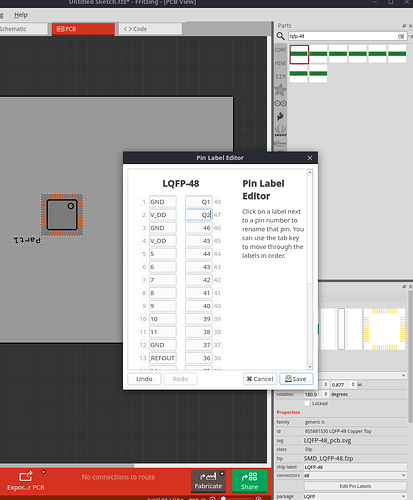

Use the search to find the LQFP–48 footprint, then click “Edit Pin Labels”

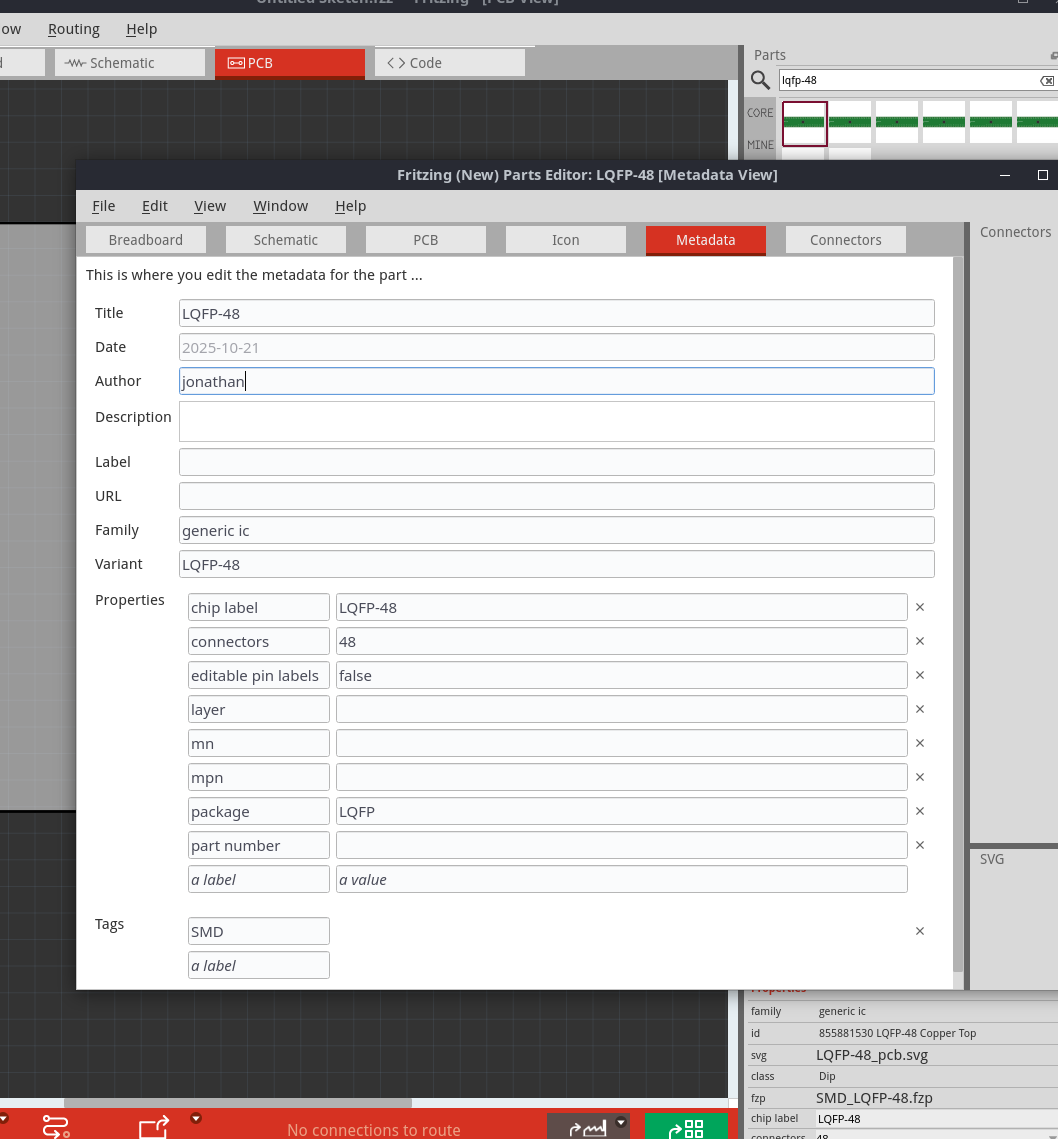

After editing the PINs, you can right click the part and open in the editor,
for entering more metadata, and saving it as a distinct part for future reuse:
In Fritzing 1.0.6 which we released today, a bug around editing pin labels was fixed, so it might be worth updating.
