Low Voltage Disconnect (LVD) XH-M609

Name of the part
Low Voltage Disconnect (LVD) XH-M609

Previous work, similar parts
In case there are similar Fritzing parts, or you already started work, please link it here.

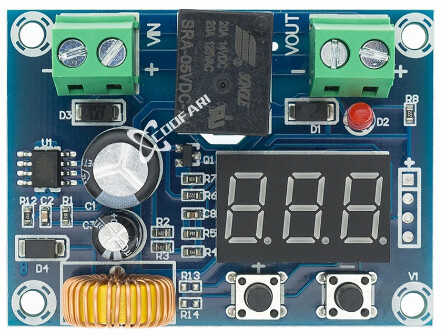

Top view
This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have.


Datasheet

Type
Other (please specifiy)
like fuse dc electronic to battery. low voltage detection

This part should do what you want. Note pcb view has been suppressed as not useful.

edit: screwed up the bus definition so replaced the part with a corrected one.

XH-M609.fzpz (15.3 KB)

Peter
