Looking for RYUW122_Lite

parts help
1

image1047×610 147 KB

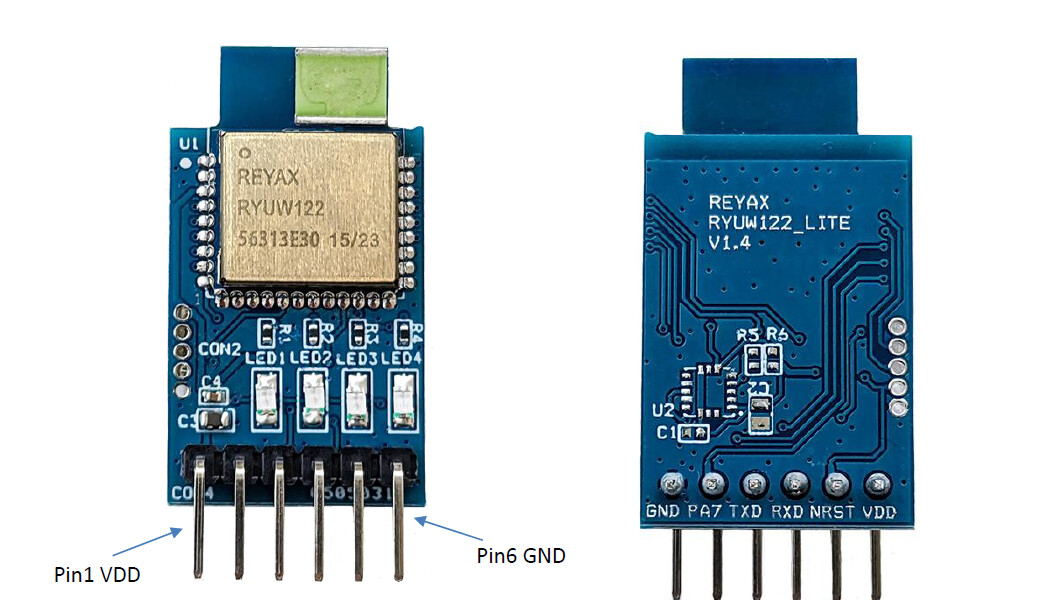

Pin No. Pin Name I/O Type Description / Condition
1 VDD P Power Supply
2 NRST I Low reset trigger input
3 RXD I UART Data Input
4 TXD O UART Data Output
5 PA7 O Mode Indicator High: Normal mode Low: Sleep mode
6 GND P Ground

image840×613 34 KB

The pin hole are breadboard friendly.

Thanks Renzo

2

Here the link to the home page https://reyax.com/products/RYUW122_Lite

3

This part should do what you want.

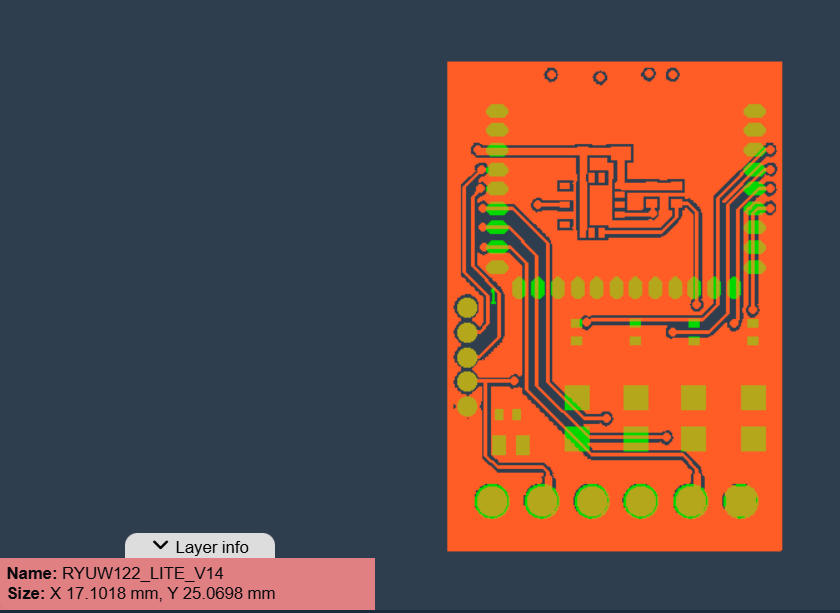

RYUW122_Lite.fzpz (16.9 KB)

Peter

4

Thanks a lot.. you are great!!
