Hello, please help me get this part for a solar irradiance measurement project.

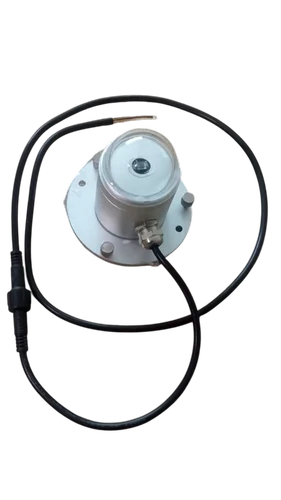

Name of the part: RS485 Photoelectric Solar Radiation Sensor
SKU: SEN0640
I found two similar pyranometers in Fritzing
- Apogee SP-110-SS and
- SonBest SM3568V5.
Note: The SEN0640 sensor has 4 terminals, so it doesn’t directly match existing parts.
Top view
Note: The DFRobot wiki page for the sensor has a schematic of the sensor with an RS485 to TTL converter module and Uno R3 board.
Datasheet
The official documentation of the part manufacturer is linked here:
Type
I did not read this
