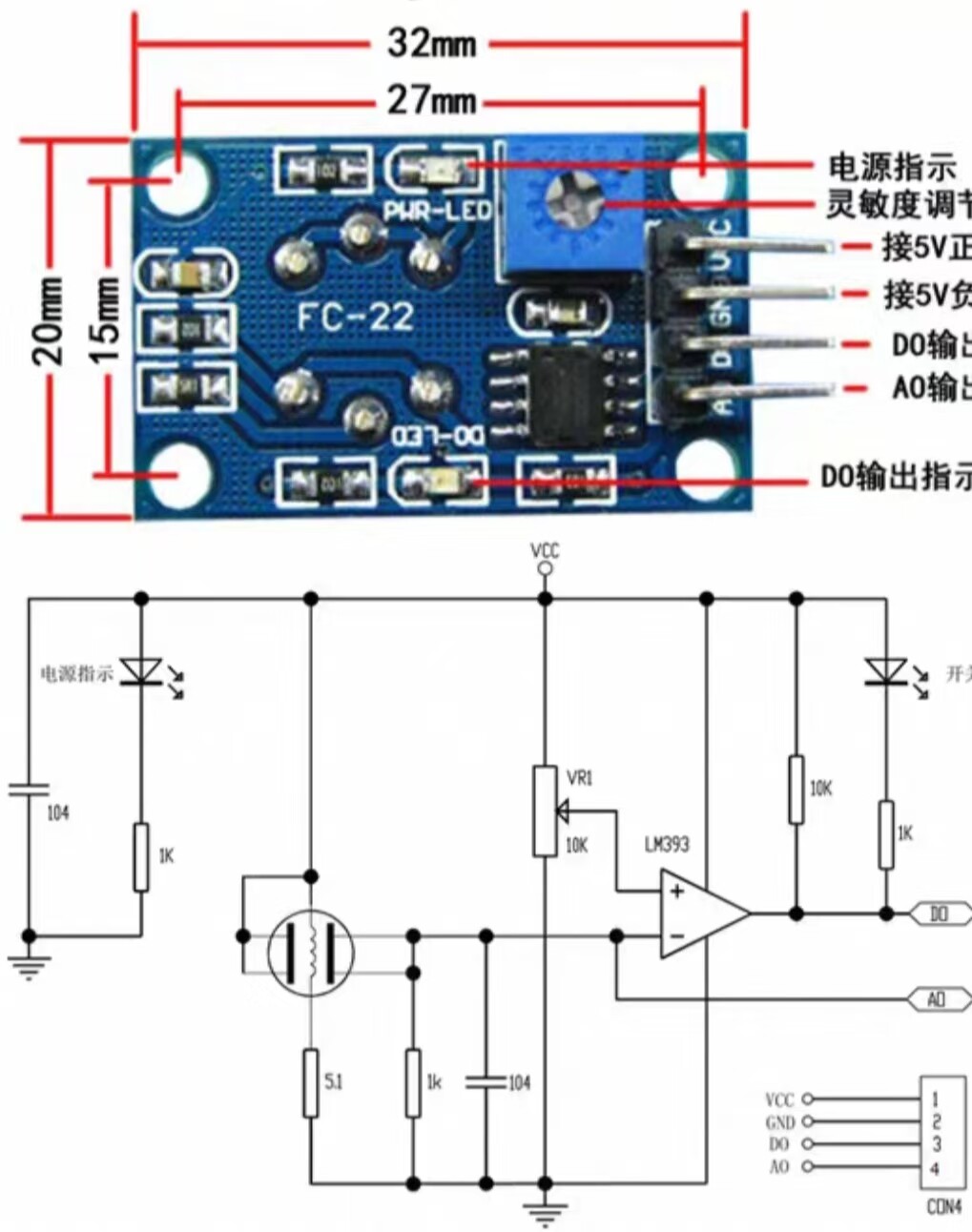

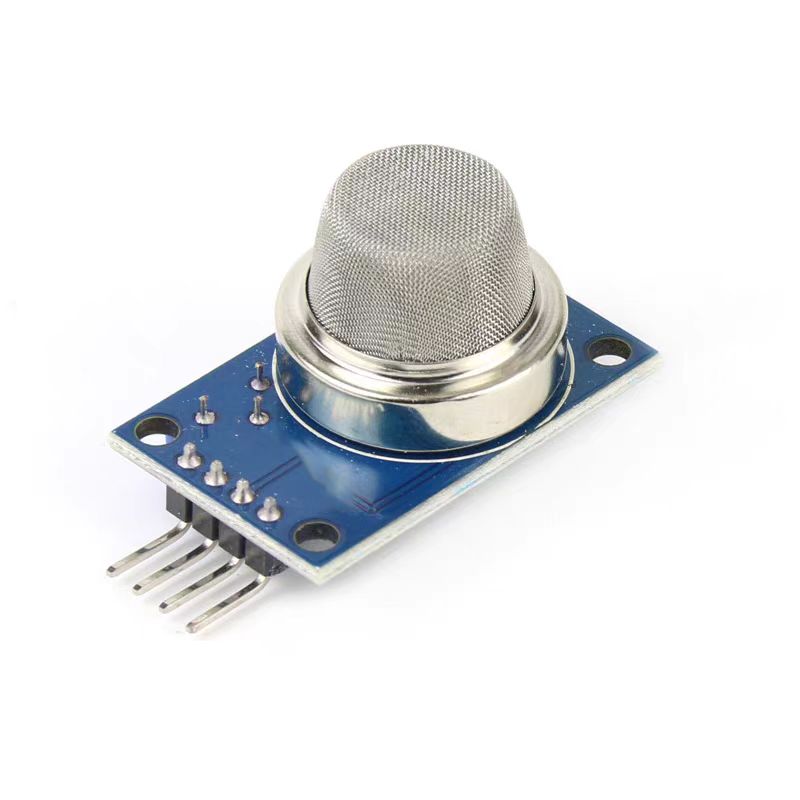

Hello, it’s the MQ-2 component.
Check if the connectors are the same
Bye for now. It’s 12 midnight here. @vanepp can you help me reply him if he asks anything?
Hello, it seems to be a similar connector. May I ask a small question? Can the name be changed to MQ - 2?
Can is can.
You have to modify the SVG.
How do I modify it? I don’t quite understand. I’m really sorry.
If he still needs it, I will try my best to answer him.
@sdjh here: MQ-2 breakout.fzpz (48.1 KB)
Open the SVG with a text editor and change this section
<text
font-size="60"
y="162.64647"
x="355.77576"
id="label"
font-family="'Droid Sans'"
text-anchor="middle"
fill="#000000">MQ-5</text>
to
<text
font-size="60"
y="162.64647"
x="355.77576"
id="label"
font-family="'Droid Sans'"
text-anchor="middle"
fill="#000000">MQ-2</text>
Save the file.

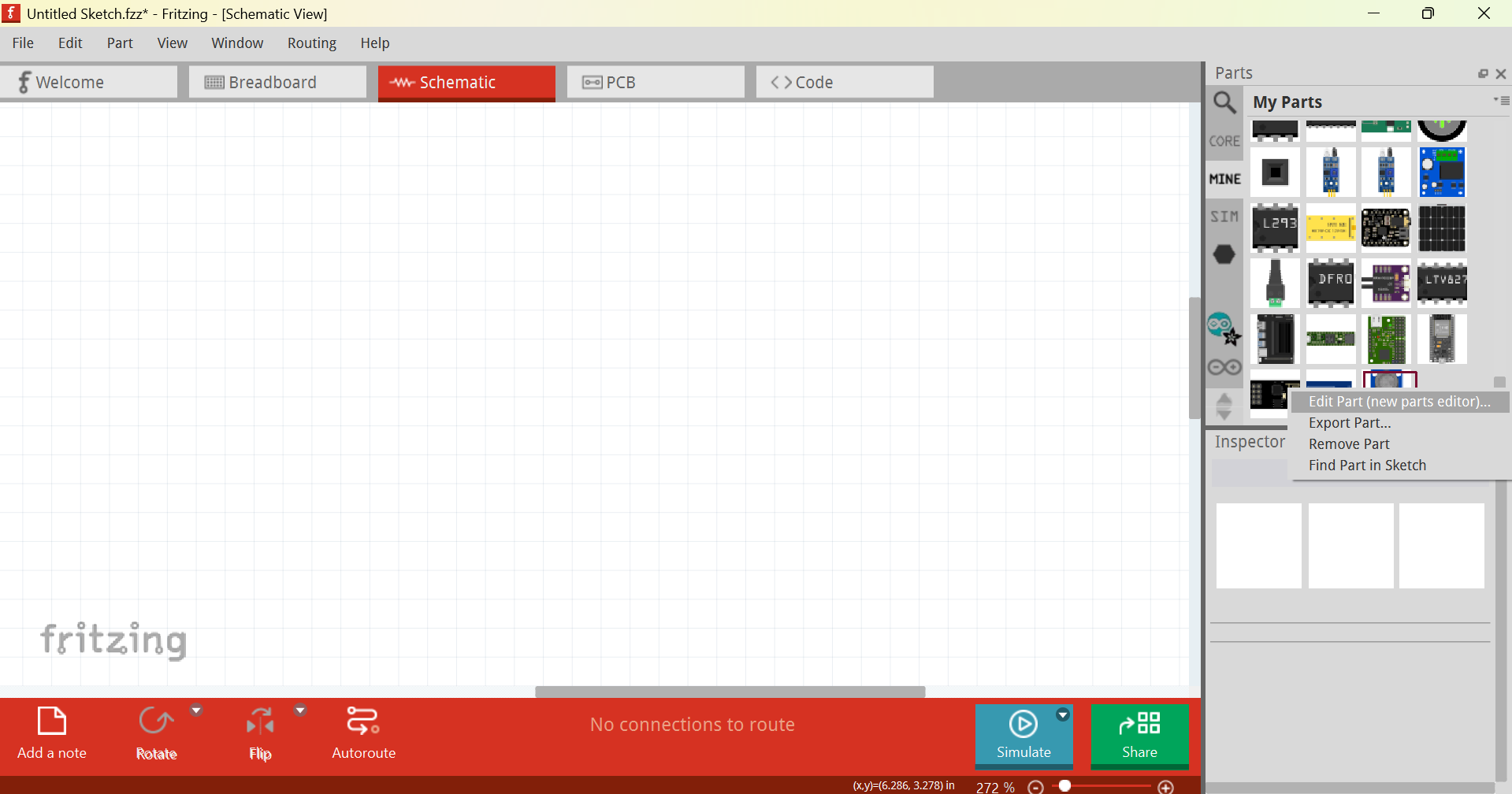

Then right-click the part → edit

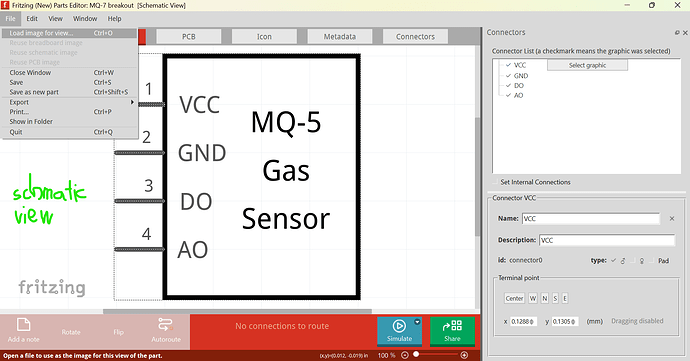

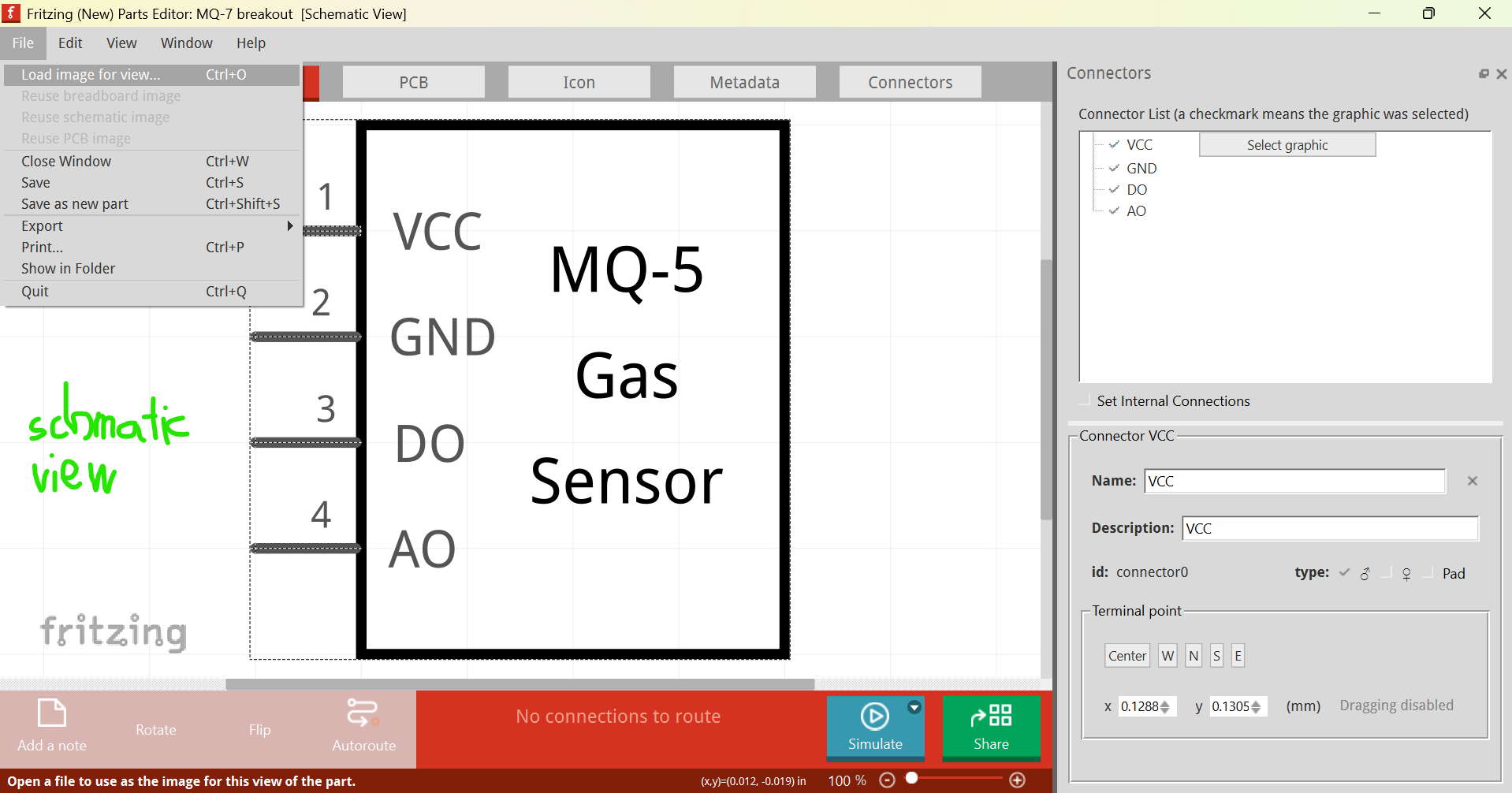

load image for view

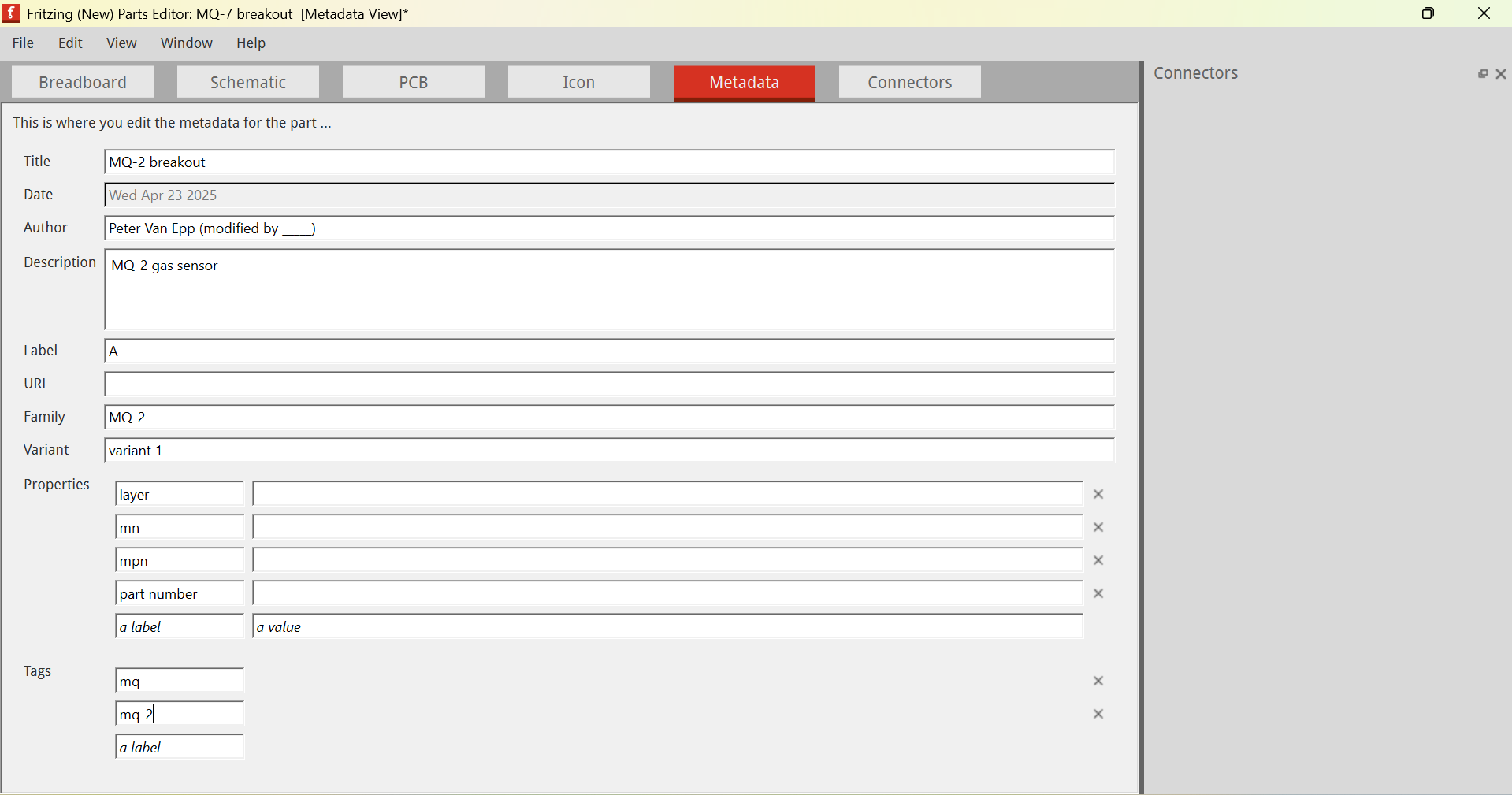

then go to metadata and change from
to

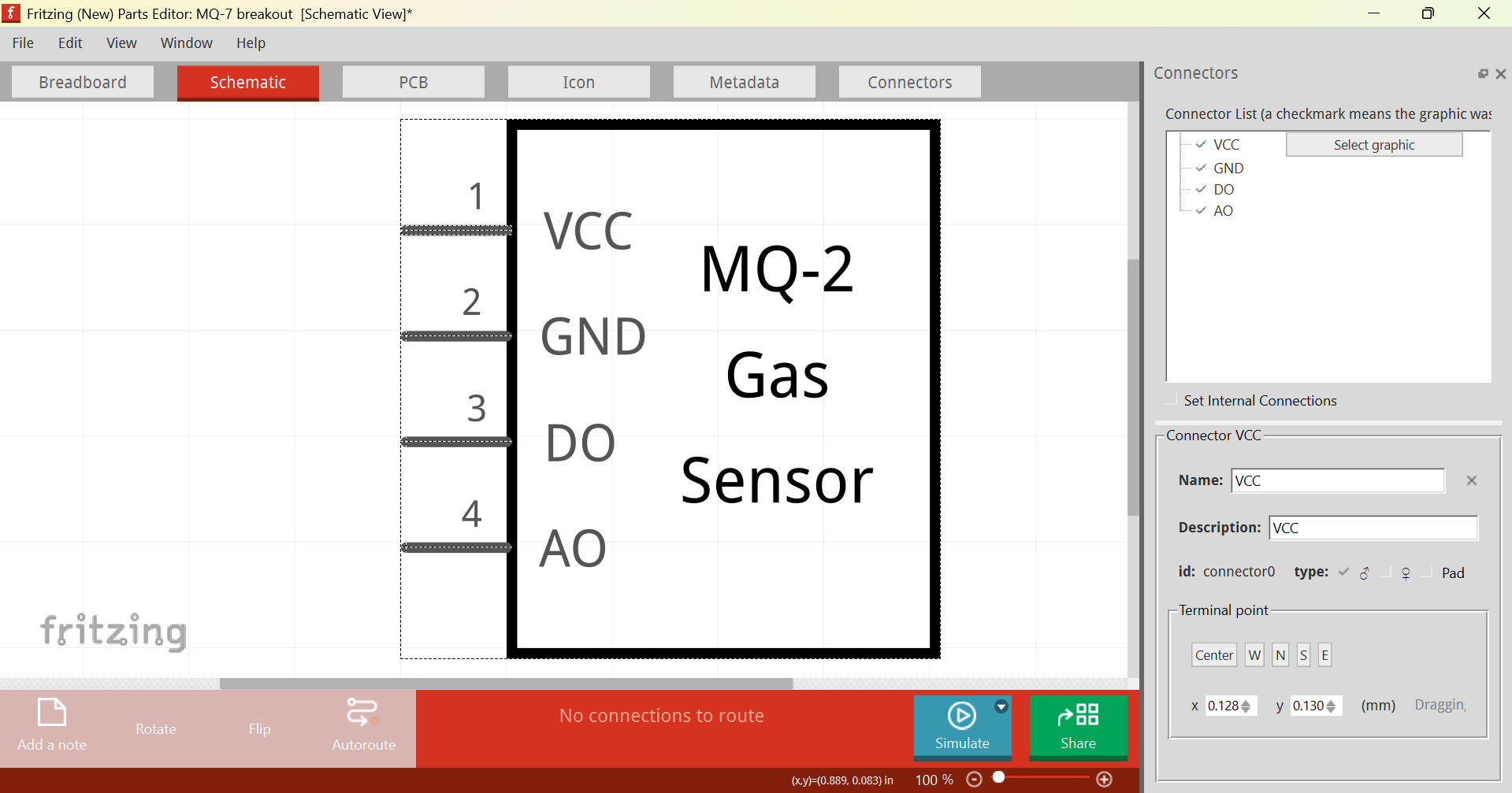

file → save as new part
